40 FLA 2 Pole Definite Purpose Contactor

Short Description:

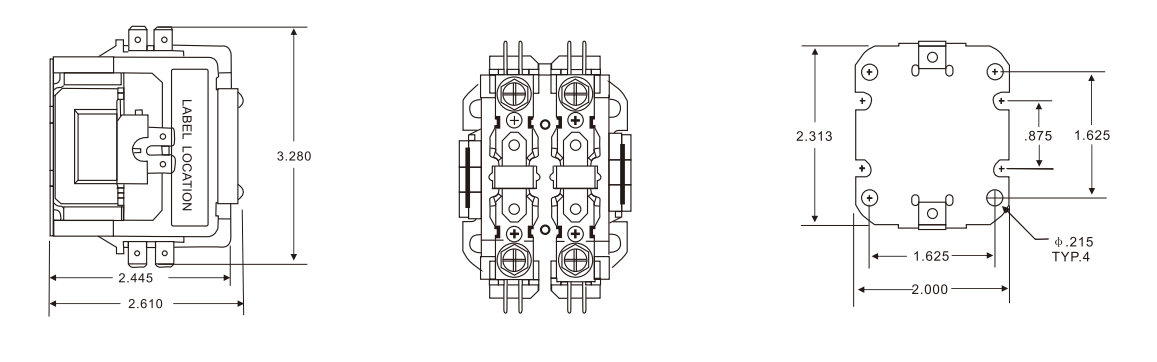

40 FLA 2 Pole definite-purpose magnetic contactors are designed for heating, air conditioning, and refrigeration applications. This line of definite purpose contactors has current ratings of 120 amperes resistive and 50 HP at 600 VAC. This three-pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.

Send email to us

Product Detail

Product Tags

Technical Parameters

2 Pole	Coil Voltage 50/60Hz	Full Load Amps	Line Voltage	Locked Rotor Amps	Resistive Amps Rating	Maximum Horsepower Voltage	Single Phase	Approx. Unit Weight
40 FLA	24 120 208/240 277	40	240/277 480 600	240 200 160	50 50 50	120 240	2 3	0.61 lb 0.28 kg

COIL TECHNICAL DATA 50/60HZ

Name	24V	120V	208/240V	277V
Nominal Coil Voltage	24	120	208/240	277
Maximum Pickup Volts	18	88	177	221
Drop-Out Volts Range	6-15	20-70	40-140	50-165
Nominal Inrush VA @50HZ	31	31	35	31
Nominal Inrush VA @60HZ	28	28	22	28
Nominal Sealed VA @50HZ	6	6	7	6
Nominal Sealed VA @60Hz	5	5	6	5
Nominal DC Resistance (Ω)	17.5	450	1800	2252
Maximum Coil Voltage	30	132	264	300
