Specifications

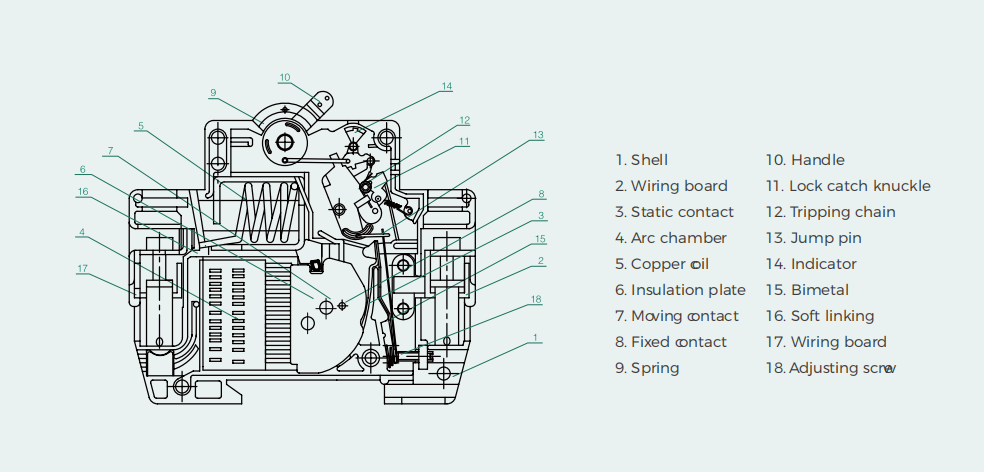

| FPV-63 Series Circuit Breaker (WTM7-63) | Specifications |
|---|---|
| Frame Degree Rated Current (A) | 63 |
| Pole | 1P |
| Rated Operating Voltage (V DC) | 250 |
| Rated Insulation Voltage Ui (V DC) | 1000 |
| Rated Current In (A) | 3, 6, 10, 16, 20, 25, 32, 40, 50, 63 |
| Rated Impact Voltage Uimp (kV) | 6 |
| Ultimate Breaking Capacity Icu (kA) | 6 |
| Run Breaking Capacity Ics (%Icu) | 100% |
| Curve Type | C |
| Trip Type | Thermal-magnetic |
| Mechanical | Actual average value |
| Standard value | |
| Electrical | Actual average value |
| Standard value |
Condition and Installation
| Parameter | Value 1 | Value 2 | Value 3 | Value 4 |
|---|---|---|---|---|
| Wiring capacity (mm) | ≤32A:1-6 | ≥40A:10-16 | - | - |
| Ambient temperature (°C) | 40 | - | - | - |
| Altitude (m) | ≤2000 | - | - | - |
| Relative humidity | ≤95% | - | - | - |
| Pollution Level | 3 | - | - | - |
| Installation Environment | No obvious shock and vibration | - | - | - |
| Installation category | Class III | - | - | - |
| Installation | DIN Standard rail | - | - | - |
| Dimensions W (mm) | 18 | 36 | 54 | 72 |
| Dimensions H (mm) | 72 | 72 | 72 | 72 |
| Dimensions D (mm) | 50 | 50 | 50 | 50 |
| Weight (kg) | 0.13 | 0.26 | 0.39 | 0.52 |
Connection
Current correction values used at different ambient temperatures
| Rated Current (A) | Fixed Current (A) | -35°C | -30°C | -20°C | -10°C | 0°C | 10°C | 20°C | 30°C | 40°C | 50°C | 60°C | 70°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 3.90 | 3.78 | 3.69 | 3.57 | 3.42 | 3.30 | 3.12 | 3.00 | 2.88 | 2.79 | 2.64 | 2.49 | - |
| 6 | 7.80 | 7.56 | 7.38 | 7.14 | 6.84 | 6.60 | 6.24 | 6.00 | 5.76 | 5.64 | 5.28 | 4.98 | - |
| 10 | 13.20 | 12.70 | 12.50 | 12.00 | 11.50 | 11.10 | 10.60 | 10.00 | 9.60 | 9.30 | 8.90 | 8.40 | - |
| 16 | 21.12 | 20.48 | 20.00 | 19.20 | 18.40 | 17.76 | 16.96 | 16.00 | 15.36 | 14.88 | 14.24 | 13.44 | - |
| 20 | 26.40 | 26.40 | 25.00 | 24.00 | 23.00 | 22.20 | 21.20 | 20.00 | 19.20 | 18.60 | 17.80 | 16.80 | - |
| 25 | 33.00 | 32.00 | 31.25 | 30.00 | 28.75 | 27.75 | 26.50 | 25.00 | 24.00 | 23.25 | 22.25 | 21.00 | - |
| 32 | 42.56 | 41.28 | 40.00 | 38.72 | 37.12 | 35.52 | 33.93 | 32.00 | 30.72 | 29.76 | 28.16 | 26.88 | - |
| 40 | 53.20 | 51.20 | 50.00 | 48.00 | 46.40 | 44.80 | 42.40 | 40.00 | 38.40 | 37.20 | 35.56 | 33.60 | - |
| 50 | 67.00 | 65.50 | 63.00 | 60.50 | 58.00 | 56.00 | 53.00 | 50.00 | 48.00 | 46.50 | 44.00 | 41.50 | - |
| 63 | 83.79 | 81.90 | 80.01 | 76.86 | 73.71 | 70.56 | 66.78 | 63.00 | 60.48 | 58.90 | 55.44 | 52.29 | - |
Current correction factor used at different altitudes

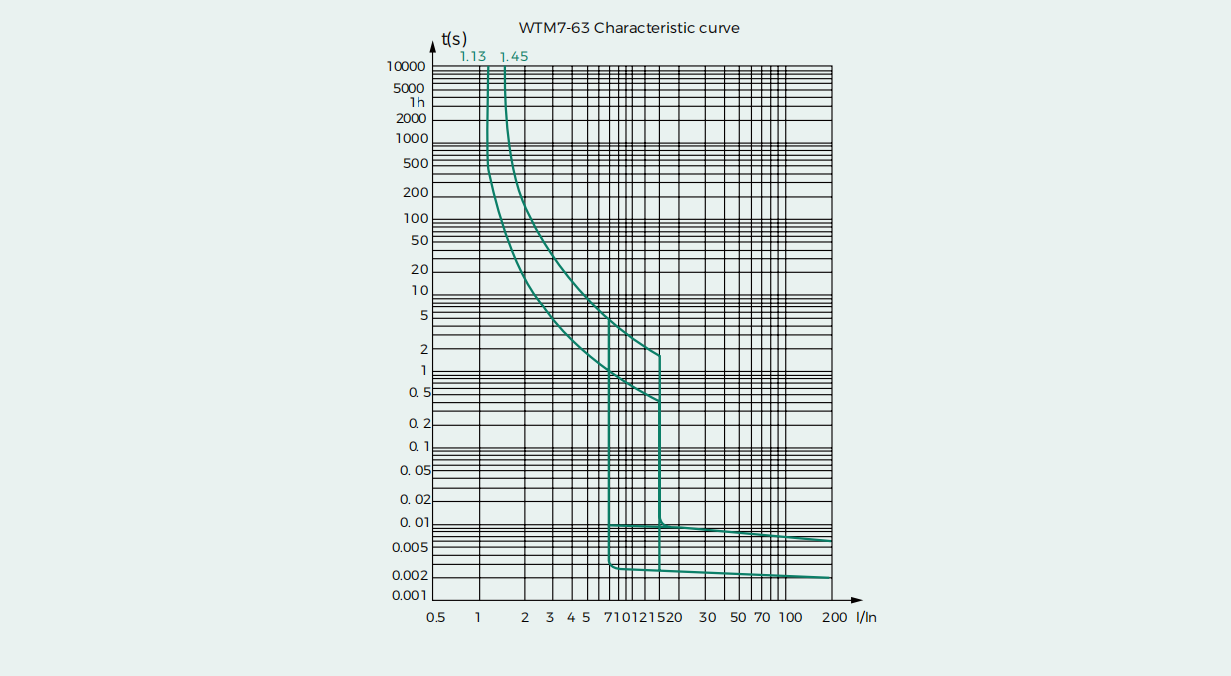

Characteristic Curve

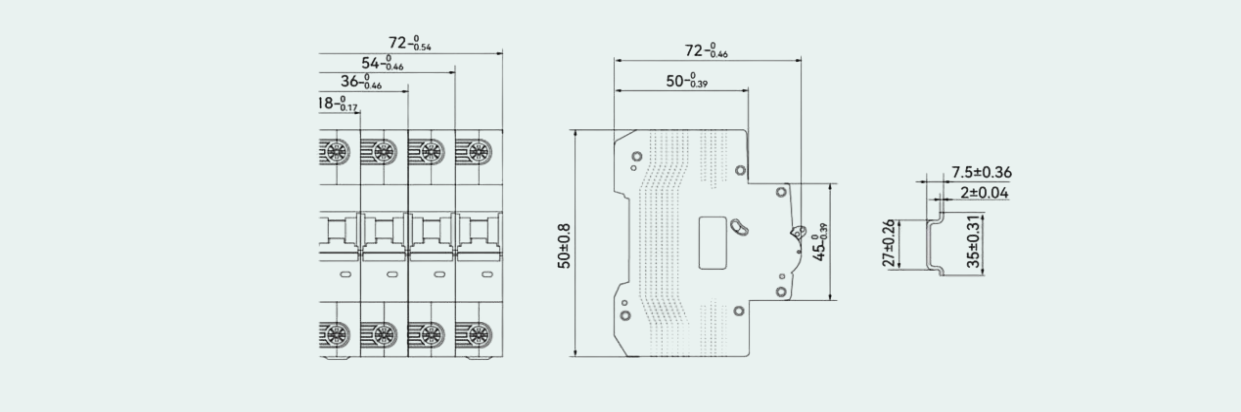

Dimensions
