GF Series high quality air source treatment unit pneumatic air filter
Technical Specification
|
Model |
GF-200 |
GF-300 |
GF-400 |
|
Working Media |
Compressed Air |
||
|
Port Size |
G1/4 |
G3/8 |
G1/2 |
|
Max. Working Pressure |
1.5MPa |
||
|
Max. Proof Pressure |
0.85MPa |
||
|
Water Cup Capacity |
10ml |
40ml |
80ml |
|
Filter Precision |
40 μ m(Normal)or 5 μ m(Customized) |
||
|
Ambient Temperature |
-20-70℃ |
||
|
Material |
Body: Aluminum Alloy; Cup: PC |
||

|

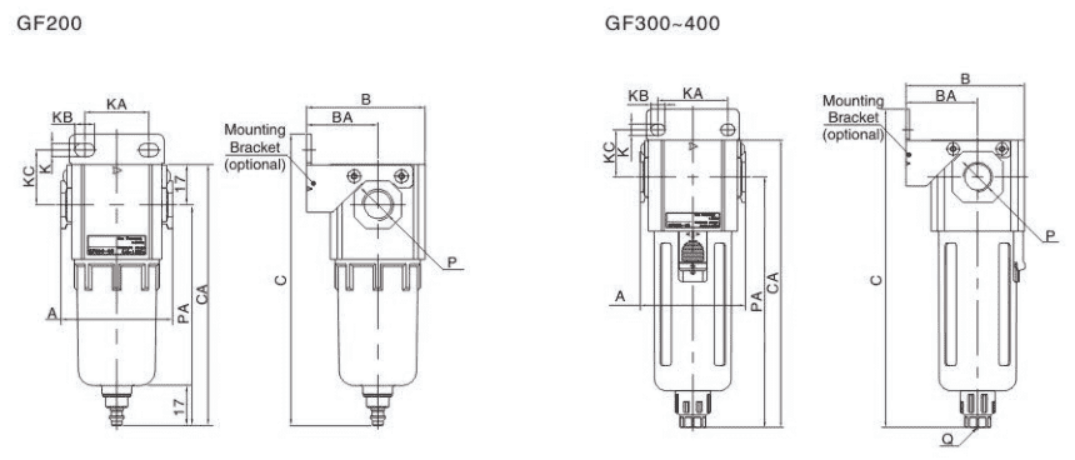

Model |
A |
B |
BA |
C |
CA |
K |
KA |
KB |
KC |
P |
PA |
Q |
|
GF-200 |
47 |
50 |
30 |
123 |
110 |
5.4 |
27 |
8.4 |
23 |
G1/4 |
93 |
G1/8 |
|
GF-300 |
80 |
85.5 |
50 |
208 |
191.5 |
8.6 |
55 |
11 |
33.5 |
G3/8 |
166.5 |
G1/4 |
|
GF-400 |
80 |
85.5 |
50 |
208 |
191.5 |
8.6 |
55 |
11 |
33.5 |
G1/2 |
166.5 |
G1/4 |
