Have you ever wondered why industrial machines always use 3 phase contactors? This device is the crucial link between low-power control signals and high-power industrial machinery. In this guide, I'll walk you through everything you need to know. We'll break down what a 3-phase contactor is, how it works from the inside out, where it's used, and most importantly, how you can select and install one correctly and safety.
What is a 3-phase Contactor?
At its core, a 3-phase contactor is an electrically controlled, heavy-duty switch. Let's break that down:
● Heavy-Duty Switch: Unlike a standard light switch you have at home, a contactor is built to handle immense electrical loads. We're talking about high voltages (like 480V or 690V) and high currents, often found in industrial settings.
● Electrically Controlled: You don't flip a contactor on and off by hand. Instead, it's operated remotely by applying a small electrical signal to its internal coil. This makes it perfect for automated systems controlled by PLCs (Programmable Logic Controllers) or simple push-button stations.
● 3-phase: This is key. Industrial motors and equipment often run on a 3-phase power supply, which involves three separate alternating current (AC) power lines. A 3-phase contactor is specifically designed with three sets of contacts to switch all three power lines simultaneously, ensuring the motor gets balanced power.
Think of it as a powerful gatekeeper. A small, safe signal tells the gatekeeper to open the gates, and a massive flow of power is allowed through to the machine. When the signal stops, the gatekeeper safely closes the gates, cutting off the power.
How do contactors work?
To truly understand a contactor, you need to look inside. While models vary, they all share the same fundamental components that work together in perfect harmony. When I'm teaching new technicians, I always compare it to the basic anatomy of a muscle.
1.The coil
This is an electromagnet and the heart of the control circuit. It’s a coil of wire wrapped around a metal core. When a control voltage (typically a much lower voltage like 24V DC, 120V AC, or 220V AC) is applied to it, it generates a strong magnetic field. This is what initiates the switching action.
2.The Armature and Core
The core is the stationary part of the electromagnet. The armature is the moving part. When the coil is energized, the magnetic field pulls the movable armature toward the stationary core. This physical movement is what makes the contactor switch.
3.The Main Contacts or Poles
These are the heavy-duty copper or silver alloy contacts that carry the main power to the load (e.g., the motor). In a 3-phase contactor, there are three sets of these contacts. They are almost always Normally
Open(NO),meaning in their default, resting state, they are open, and no current can pass through. When the armature moves, it forces these contacts to close, completing the circuit. You'll see them labeled L1/T1, L2/T2, and L3/T3.
4.The Auxiliary Contacts
These are smaller contacts physically attached to the same moving armature but are not designed to carry the main load current. Their job is to handle low-power signals for logic and status indication.
They come in two flavors:
● Normally Open(NO): Open at rest, closed when the contactor is energized. Perfect for turning on a green "Motor Running" indicator light.
● Normally Closed(NC): Closed at rest, open when the contactor is energized. Ideal for a red "Motor Stopped" light or for safety interlocking, ensuring another device cannot turn on while this one is running.

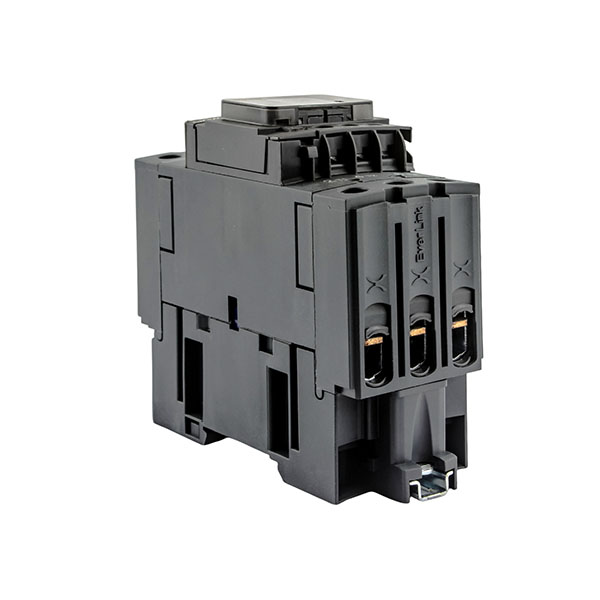

Many contactors, like the popular WTAIDQ CJX2D series, come with one NO and one NC auxiliary contact built-in (1NO+1NC).
5.The Springs
A simple but critical component. When the control voltage to the coil is removed, the magnetic field collapses. The springs provide the mechanical force to push the armature back to its original resting position, instantly opening the main contacts and shutting off the load.
6.The Enclosure
This is the protective housing, typically made of durable plastic. It insulates the live parts, protects the internal components from dust and moisture, and often includes features to help suppress the electric arc that forms when switching high currents.
The Working Principle in Action
Now, let's put those components together and walk through a single cycle of operation. It's a simple, elegant process.
1.De-energized State(OFF)
● There is no voltage applied to the coil terminals (A1 and A2).
● The springs are holding the movable armature away from the stationary core.
● The three main contacts (L1/T1, etc.) are open.
● No power flows from the source to the motor. The system is at rest.
2.Energizing State(ON)
● A control signal (e.g., from a push-button) sends voltage to the coil terminals.
● The coil immediately generates a strong magnetic field.
● This magnetic force overcomes the force of the return springs and instantly pulls the armature into the core with a distinct "clunk."
● As the armature moves, it simultaneously closes all three main contacts.
● Power now flows through L1/T1, L2/T2, and L3/T3 to the motor, and it starts running.
● At the same time, any auxiliary contacts change state (NO contacts close, NC contacts open).
3.De-energizing State(OFF Again)
● The control signal is removed (e.g., the stop button is pressed).
● The current to the coil is cut, and the magnetic field collapses to zero.
● With no magnetic force holding it, the springs instantly push the armature back to its resting position.
● This action pulls the main contacts apart, interrupting the flow of power to the motor and safely shutting it down.
This entire cycle can happen in milliseconds and is designed to be repeated millions of time over the contactor's lifespan.
Common Applications
While motor control is their primary job, 3-phase contactors are incredibly versatile. You'll find them in a wide range of high-power applications:
● Industrial Motor Control: This is the number one use. They are essential for starting, stopping, and sometimes reversing three-phase motors that power pumps, fans, conveyors, compressors, and machine tools.
● Large-Scale Lighting: Imagine trying to turn on all the lights in a sports stadium or a massive warehouse. A single contactor can control hundreds of high-power light fixtures at once, activated by a simple switch or automated system.
● Heating and HVAC Systems: Large electric resistance heaters, industrial ovens, and the powerful compressors found in commercial air conditioning systems all rely on contactors to switch their heavy loads. Specialized "Definite Purpose" contactors are often used here.
● Capacitor Banks: In large industrial facilities, capacitor banks are used to correct the power factor. Contactors are used to switch these banks into and out of the circuit as needed. Models like the WTAIDQ CJ19 are specifically designed with surge suppression to handle the high inrush current of capacitors.
● Power Distribution: They can be used as a main isolating switch to safely connect or disconnect power to an entire machine or a section of a plant floor.
How to Use a Three-phase Contactor Correctly?
Now for the most important part. Using a contactor isn't just about wiring it up; it's about selecting the right one and installing it safely. Following these steps is critical for a reliable and safe system.
Step 1: Select the Right Contactor
Choosing the wrong contactor can lead to premature failure or a dangerous situation. Here’s what you need to consider:
● Load Type (Utilization Category): This is the most crucial factor. The IEC (International Electrotechnical Commission) defines categories for what a contactor is designed to switch.
○ AC-1: For non-inductive or slightly inductive loads, like resistance heaters or lighting.
○ AC-3: For starting and stopping standard squirrel-cage motors. This is the most common category for motor control. An AC-3 rated contactor is built to handle the high inrush current (Locked Rotor Amps) a motor draws when it first starts.
○ Always use an AC-3 (or higher, like AC-4) rated contactor for a motor load.
● Current Rating(Amps): The contactor must be rated to handle the motor's Full Load Amps (FLA). As a rule of thumb, always select a contactor with a current rating at least slightly higher than the motor's FLA. For example, for a motor with a 60A FLA, a 65A contactor like the WTAIDQ CJX2D65A would be an appropriate choice.
● Voltage Rating: You need to check two voltages:
○ Load Voltage: The contactor's main contacts must be rated for the system voltage (e.g., 480V, 690V).
○ Coil Voltage: The coil voltage must match your control circuit's voltage (e.g., 24V, 120V). Mismatching this is a very common mistake.
● Certifications and Standards: Ensure the contactor meets the required safety standards for your region. For North American markets, look for UL or CSA certification and NEMA. In Europe and many other parts of the world, IEC standards are the norm, indicated by a CE mark. Check out the IEC website for more details on global standards.
Step 2: Safety First!
Working with 3-phase power is extremely dangerous. There is no room for error.
● Lockout/Tagout (LOTO): Before you even open an electrical panel, you must completely de-energize the circuit and apply a lock and tag. This is a non-negotiable safety procedure. Always follow the strict guidelines outlined by standards like OSHA 1910.147.
● Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses and properly rated insulated gloves.
● Verify Power is OFF: Use a reliable multimeter to test every single conductor (L1, L2, L3, and Neutral) to be 100% certain the circuit is dead before you touch anything.
Step 3: Installation and Wiring
● Mounting: Most modern contactors snap onto a standard 35mm DIN rail inside an enclosure. They can also be screw-mounted directly to a panel backplane.
● Power Wiring: The rule is "power in the top, power out the bottom."
○ Connect the three incoming power lines to terminals L1, L2, and L3.
○ Connect the three lines going to the motor or load to terminals T1, T2, and T3.
○ Use the correct wire gauge for the current and torque the terminal screws to the manufacturer's specification. Loose connections are a major cause of overheating and failure.
● Control Wiring: Connect the wires from your control device (PLC, push-button) to the coil terminals, marked A1 and A2.
● Auxiliary Wiring: Wire your indicator lights or interlocking signals to the appropriate NO and NC auxiliary terminals.
Step 4: Testing
After a final visual check of all your wiring, you can proceed with testing.
1.Remove your lock and tag and re-energize the main circuit breaker.
2.Apply voltage to the control circuit. You should hear a solid "clunk" as the contactor pulls in.
3.The motor or load should turn on.
4.If it's safe to do so, use your multimeter to check for the correct voltage across the load terminals (T1, T2, T3).
5.Remove the control signal. The contactor should release, and the load should turn off.
Contactor vs. Relay
People often confuse contactors and relays because they both operate on the principle of an electromagnet closing a switch. However, their applications are very different. I like to use a simple analogy: a relay is a thinker, and a contactor is a mover.
| Feature | 3-Phase Contactor | Relay |
| Primary Purpose | Switching high-power loads | Switching low-power control signals |
| Current Rating | Typically > 10A (often 25A to 800A+) | Typically < 10A |
| Load Type | 3-phase motors, heaters, high-power lights | PLC signals, small devices, logic circuits |
| Size | Large and robust | Small and compact |
| Safety Features | Built-in arc suppression, durable housing | Minimal; not designed for high energy |
| Default State | Almost always Normally Open (NO) | Can be NO, NC, or have changeover contacts |
| Cost | More expensive | Less expensive |
You use relays to make decisions in a control circuit, and you use a contactor to execute the final high-power action based on those decisions.
Conclusion
The 3-phase contactor is a fundamental building block of modern industrial control.It is the bridge that allows low-voltage electronics to safely and reliably manage high-power machinery.Understanding how to properly select, install, and test these devices is a core skill for any electrician, engineer, or technician.For professional-grade AC contactors, competitive pricing, and expert technical support, contact us now.
Frequently Asked Questions (FAQ)
Q1:Can I use 3 pole contactor for single-phase?
Yes, you can absolutely use a 3-pole (or three-phase) contactor for a single-phase application.
Q2:What are the terminals of a 3-phase contactor?
A 3-phase contactor's terminals include the main power connections for the load (L1/L2/L3 in, T1/T2/T3 out), the control coil terminals to activate it (A1/A2), and auxiliary contacts for logic or status signals.
Q3:How do I know if my 3 phase is working?
You can confirm your 3-phase power is working by using a multimeter to measure the voltage between each pair of phases (L1-L2, L2-L3, and L1-L3), ensuring the readings are balanced and match your expected system voltage.
