Air conditioning systems operate as a coordinated network of components that must work together seamlessly to deliver reliable cooling, heating, ventilation, and air quality. Among these components, the AC contactor is one of the most critical yet often overlooked parts. This device plays a decisive role in controlling the electrical flow to major HVAC components, directly affecting system performance, reliability, and safety. Without a properly functioning HVAC contactor, even the most advanced compressor or thermostat cannot perform as intended.
In the sections ahead, you will learn exactly what an AC contactor is, how it operates within an HVAC system, and why understanding its functions can help you make informed decisions about maintenance and repairs. You will also explore the different types available, how to keep them in excellent condition, and how to troubleshoot common issues. Whether you are an HVAC professional or a homeowner who wants to get the best performance from your air conditioning system, this guide will give you practical knowledge you can apply right away.
What Is an AC Contactor?
Before exploring its functions in detail, it helps to clearly understand what an AC contactor is. In the simplest terms, this is an electrically controlled switch designed to regulate the power supply to key parts of an air conditioning system, including the compressor, condenser fan, and evaporator fan. By opening or closing its electrical contacts, it allows the low-voltage control circuit to start or stop high-voltage components safely and efficiently.
Most AC contactors work on magnetic principles. At the heart of the unit is the coil, an electromagnet activated by a low-voltage signal from the thermostat. Once energized, the coil creates a magnetic field that pulls the contacts together, completing the circuit so electricity can flow to the connected components. When the coil is de-energized, the magnetic field collapses, the contacts separate, and the circuit is interrupted.
A typical unit consists of three main parts. The coil generates the magnetic force. The contacts are conductive plates that either allow or block the flow of electricity, and their condition directly affects performance. The frame provides structural support and houses the terminal connections that link the contactor to the HVAC circuit. This arrangement keeps the control wiring isolated from high-voltage lines, an essential concept in HVAC components explained for safe operation.
AC contactors are used in both residential and commercial HVAC systems. In smaller setups, they handle single compressors and fans. In larger or industrial applications, they may control multiple motors or higher-capacity equipment. Choosing the correct AC contactor coil and contacts for the system’s voltage and current ensures reliable performance, reduced downtime, and a longer service life.
How Does an AC Contactor Work? (Working Principle)
The AC contactor working principle is based on using a low-voltage control signal to manage high-voltage switching in an HVAC system. When the thermostat or control panel calls for cooling, a low-voltage signal energizes the coil inside the contactor. This coil acts as an electromagnet, creating a magnetic field that pulls the movable contacts into a closed position. Once closed, the circuit allows high-voltage electricity to flow to components such as the compressor or condenser fan.
When the desired temperature is reached, the control signal stops. The coil loses its magnetic field, and the contacts return to their open position, cutting the high-voltage supply to the connected equipment. This on-off sequence repeats as the system maintains temperature, ensuring consistent performance without manual switching.
In addition to controlling power, magnetic AC contactor operation provides separation between the control circuit and the high-voltage side. This isolation improves safety by reducing the risk of electrical shock during servicing and helps prevent faults in low-voltage wiring from damaging high-voltage components. For both residential and commercial systems, this design is critical for protecting equipment and meeting electrical safety standards.
Key Functions of AC Contactors
AC contactor functions go beyond simply switching power. In an HVAC system, they also coordinate with overload relays for protection, enable remote control, provide safe circuit isolation, support energy efficiency, and help reduce wear on components. The sections below outline these six roles before exploring each in detail.
1. Switching the Power Supply
Among all AC contactor functions, power switching in HVAC systems is the most fundamental. When the thermostat calls for cooling or heating, a low-voltage control signal energizes the contactor’s coil. This magnetic action closes the contacts, allowing high-voltage power to reach components such as the compressor and fans. Once the target temperature is met, the coil de-energizes, the contacts open, and power is cut. This precise control ensures components operate only when required, maintaining consistent performance and preventing uncontrolled operation.
2. Overload Coordination & Protection
Many units work with an overload relay to provide overload protection contactor performance. The relay detects excessive current draw caused by restricted airflow, low refrigerant, or wiring faults. When triggered, it opens the contactor circuit, stopping components like the compressor before damage occurs. A contactor overload relay combination prevents overheating, safeguards expensive HVAC parts, and helps extend operational life.
3. Remote & Smart Control
Modern systems often feature smart thermostat contactor integration or centralized BMS HVAC control. In commercial or industrial facilities, contactors act as the execution point for remote commands, enabling operators to energize or de-energize specific units from a control room or via an app. This remote flexibility allows equipment to run only when needed based on occupancy, temperature, or scheduling, reducing energy waste and improving zone-level comfort management.
4. Safe Isolation of High-Voltage Circuits
As part of HVAC components explained in professional training, contactors ensure electrical isolation between the low-voltage control circuit and high-voltage load. The thermostat’s 24V signal never directly connects to the 220V or higher motor circuits, protecting technicians from electric shock during servicing and preventing faults from transferring between circuits. This isolation is a core requirement in most electrical safety codes.
5. Energy Efficiency & Duty Optimization
An energy efficient HVAC contactor supports system designs that include variable-speed compressor with contactor operation. By controlling when and how motors run, contactors help match output to real demand. In multi-unit commercial setups, they enable selective activation to avoid running all equipment at once. This targeted operation reduces peak loads, minimizes unnecessary power draw, and lowers operating costs.
6. Reducing Wear & Tear
A key part of AC contactor functions is minimizing mechanical stress on components. Controlled on-off cycles prevent excessive compressor starts, which can strain motors and shorten service life. By ensuring parts operate only under appropriate load conditions, contactors help extend compressor lifespan and maintain overall system reliability. In some designs, they also work with soft-start features to reduce inrush current during motor start-up.
Types of AC Contactors
The main types of AC contactors vary according to the system’s electrical setup and power demands. Choosing the right type is essential for safe, efficient, and reliable HVAC operation.
1. Single-Pole AC Contactors
A single pole AC contactor is common in single phase AC contactor applications, especially in residential air conditioners. It controls one phase of the circuit, usually powering a single compressor or fan motor. These contactors are compact, affordable, and perfect for basic on/off control where the load is light and consistent.

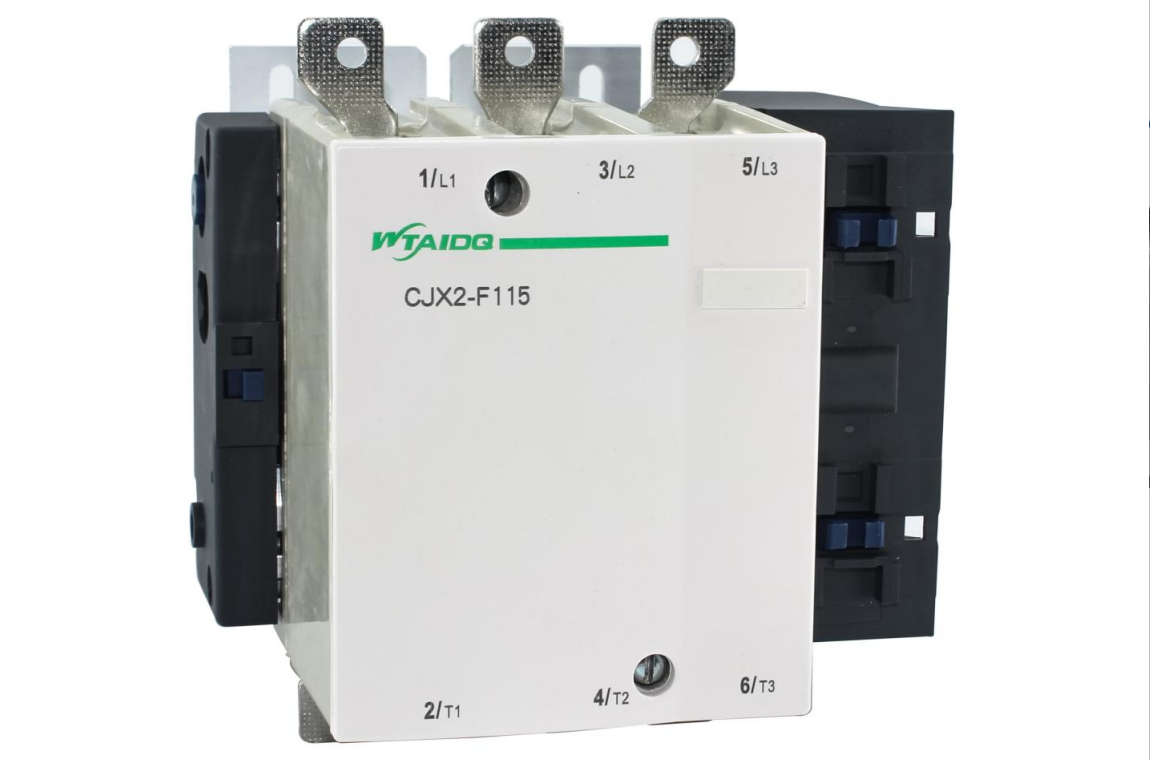

2. Three-Phase AC Contactors
A three phase AC contactor is built for larger commercial and industrial HVAC systems running on three-phase power. It switches all three lines simultaneously, delivering stable power to multiple compressors, large fan motors, or other heavy-duty equipment. Designed for high loads and constant operation, it is essential where reliability and balanced power distribution are critical.
3. Definite Purpose Contactors
A definite purpose contactor serves specific, fixed-load applications such as refrigeration, heating, or dedicated HVAC units. With a simpler design and lower cost, it offers dependable performance when the electrical demand stays relatively constant. These are widely used in both residential and light commercial settings.
4. Magnetic Contactors
The magnetic AC contactor is the most widely used type across HVAC systems. It operates via an electromagnetic coil: when energized, the coil creates a magnetic field that pulls the contacts together to complete the circuit; when de-energized, the contacts spring open to stop the power. This fast and repeatable switching makes it suitable for everything from small AC units to large industrial setups.
Installation & Maintenance Tips
Correct installation and regular upkeep are essential for safe operation and long service life. These AC contactor maintenance tips cover selection, wiring, and preventive care.
When selecting a contactor, match its current rating to the load, ensure the coil voltage fits your control circuit, and choose the correct number of poles for your system. Undersized ratings can cause overheating; oversized units may be less efficient.
For installation, follow AC contactor wiring diagrams from the manufacturer. Ensure secure terminal connections, use proper cable sizes, and protect the unit from dust and moisture. In outdoor HVAC units, a weatherproof enclosure is a must. Keep wiring organized to prevent overheating or accidental disconnection.
Routine inspection is simple but critical. Check the contacts for pitting or carbon buildup, as worn contacts can cause voltage drops and overheating. Examine the coil for discoloration or burning, which signals it may be time to replace AC contactor components.
A basic maintenance checklist includes:
● Power off the unit before inspection.
● Tighten all terminal screws.
● Clean dust and debris from the housing.
● Test the coil resistance with a multimeter.
● Operate the contactor manually to check smooth movement.
Following these steps will help your contactor perform reliably, reduce downtime, and extend the lifespan of your HVAC system.
Conclusion
The AC contactor is a key part of HVAC systems, responsible for precise power control, protection from overload, and maintaining system efficiency. Choosing energy efficient HVAC contactors not only supports safe operation but also helps reduce energy consumption and extend equipment lifespan. With the right AC contactor functions in place, an air conditioning system can deliver reliable comfort while keeping operating costs under control.
