In the era of smart homes and electric vehicles, the electrical demands of the average household have changed dramatically. Managing high-power loads safely and quietly is no longer just an industrial concern—it is a residential necessity.
Enter the Household AC Contactor (also known as a Modular Contactor).
Whether you are installing an EV charger, setting up a smart home automation system, or managing underfloor heating, understanding this component is crucial. In this guide, we will explore what a household AC contactor is, why it differs from industrial models, and how to choose the right one for your needs.
What is a Household AC Contactor and How Does it Work?
A Household AC Contactor is an electrically controlled switch used to switch a power circuit on or off. Unlike a standard manual switch that you flip with your finger, a contactor is operated by a control circuit.
The Basic Principle: When a small control current (voltage) is applied to the contactor's internal coil (terminals A1 and A2), it creates a magnetic field. This field pulls the contacts together, closing the circuit and allowing electricity to flow to your high-power appliance (load). When the control current stops, the contacts open, cutting off the power.
This allows you to control high-power devices (like a 7kW heater) using low-power signals (like a smart timer or a thermostat).

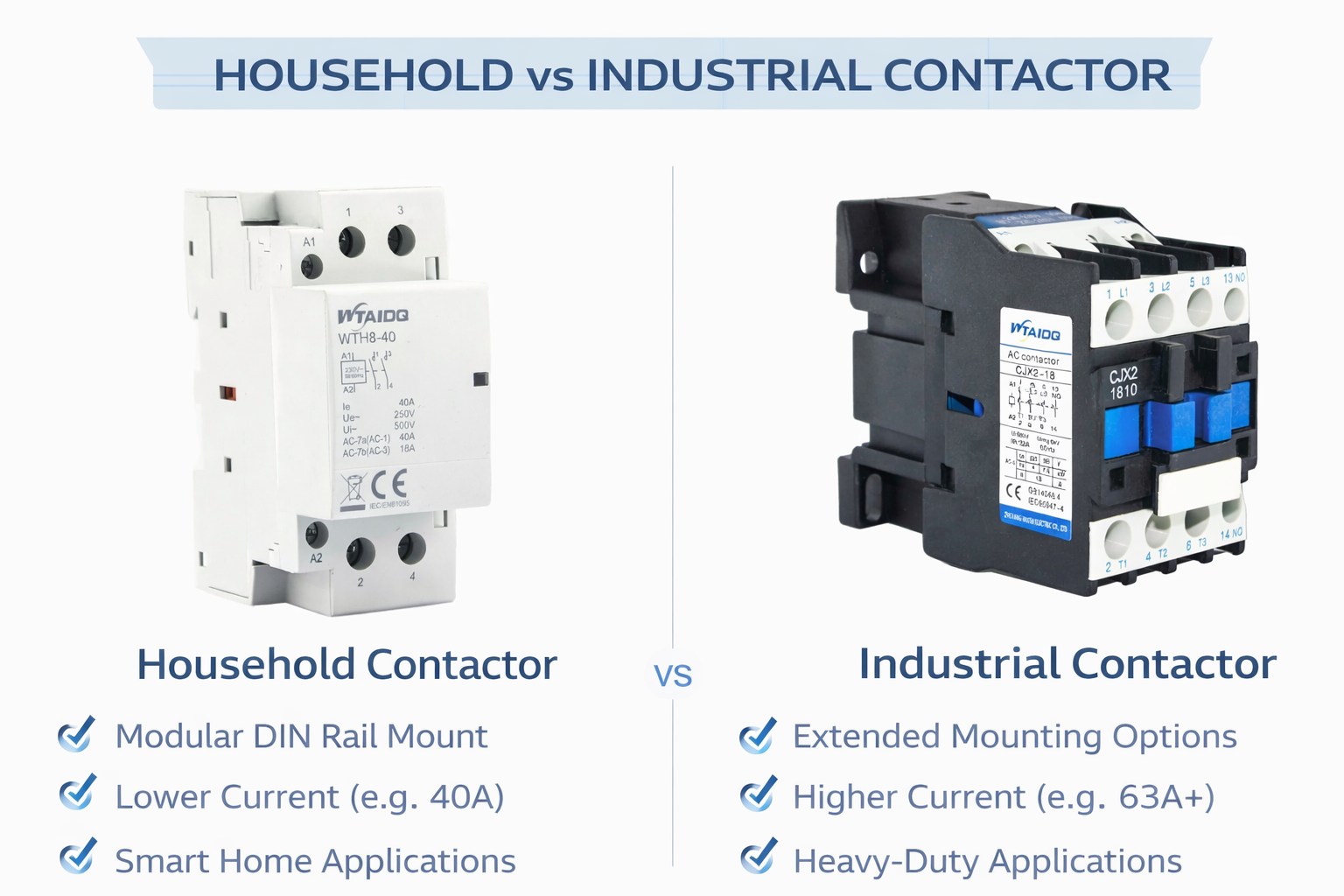

Household (Modular) vs. Industrial Contactors: What’s the Difference?
If you search for contactors, you will find bulky industrial models and sleek modular models. For residential use, the Household ac Contactor is the superior choice. Here is why:
1.Silent Operation
Industrial contactors often emit a noticeable "hum" or loud "clack" when switching. Household AC contactors are designed to be silent or low-noise, ensuring they don't disturb the peace in your home.
2.DIN Rail Mounting
They are designed to snap perfectly onto the standard 35mm DIN rail found in consumer units and breaker boxes, sitting neatly alongside your MCBs (Miniature Circuit Breakers).
3.Compact Design
They are sized in "modules" (widths of 18mm multiples) to save valuable space in your distribution board.
4.Aesthetics
They feature a clean, white appearance that matches modern household electrical panels.
Top 3 Applications for Household AC Contactors
Why do you need one? Here are the three most common scenarios where a household AC contactor is essential:
1. EV Charging Stations (Wallboxes)
As Electric Vehicles (EVs) become standard, home charging points are increasing. A typical 7kW or 11kW EV charger draws significant current. A contactor is often used in the distribution board to isolate the charger or to integrate it with solar inverter systems (turning on charging only when solar production is high).
2. Smart Home Automation
Most smart relays (like those from Shelly, Sonoff, or Zigbee devices) are only rated for 10A or 16A. If you want to use a smart switch to control a whole-house lighting loop or a heavy-duty appliance, you risk burning out the smart relay.
The Solution: The smart relay controls the contactor coil, and the contactor handles the heavy load.
3. HVAC and Heating Systems
Electric underfloor heating, heat pumps, and large water heaters require automated control via thermostats. A household contactor ensures these high-load systems cycle on and off safely without overheating your control wiring.
Selection Guide: How to Buy the Right Household AC Contactor
Choosing the wrong specification can lead to failure or safety hazards. Check these four parameters:
1. Rated Current (Amps)
Calculate the load of your appliance. Common household ratings are 16A, 25A, 40A, and 63A.
• Rule of Thumb: Always choose a contactor with a current rating 20-30% higher than your actual load to prevent overheating.
2. Coil Voltage
This is the voltage required to trigger the switch.
• 230V AC: Most common. Used when the control signal comes from the mains (e.g., a standard timer or grid signal).
• 24V AC/DC: Used when integrating with smart home systems, doorbells, or low-voltage thermostats.
• Warning: Connecting 230V to a 24V coil will destroy the device instantly.
3. Number of Poles
• 2P (Two Pole): For single-phase circuits (Live + Neutral). Standard for most household appliances.
• 4P (Four Pole): For three-phase circuits. Essential for 11kW+ EV chargers or workshops.
4. Contact Type
• NO (Normally Open): The circuit is OFF until you power the coil. (Most common).
• NC (Normally Closed): The circuit is ON until you power the coil.

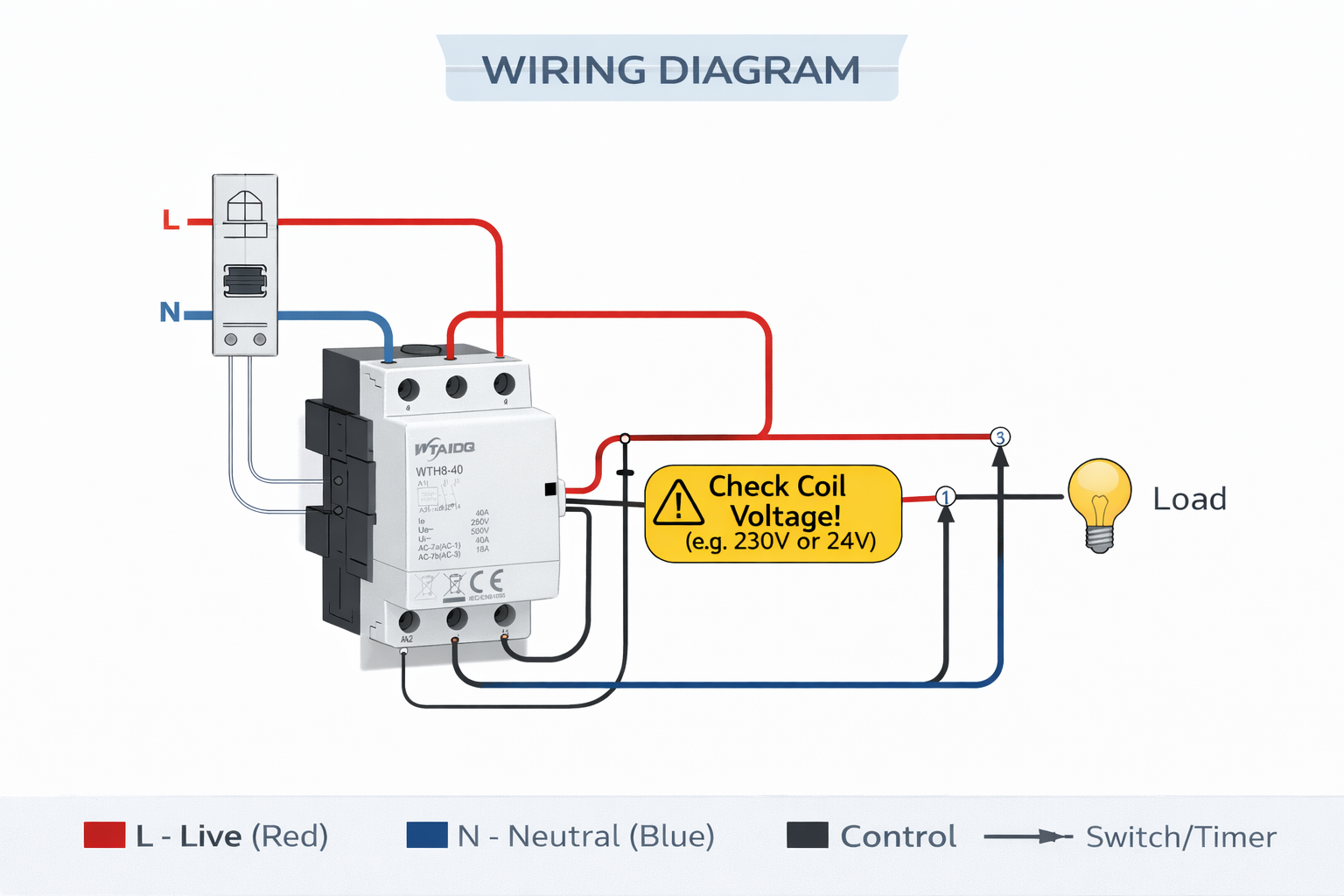

Installation and Wiring Overview
Standard DIN Rail Installation:
- Mounting: Snap the contactor onto the DIN rail in your consumer unit.
- Control Circuit (A1/A2): Connect your trigger wires (from the switch, timer, or smart relay) to terminals A1 and A2.
- Power Circuit (L/T): Connect the incoming power supply (from the breaker) to the input terminals (usually 1 and 3) and the load wires to the output terminals (usually 2 and 4).
Conclusion
The Household AC Contactor is the unsung hero of modern electrical safety. Whether you are upgrading to a smart home or installing a car charger, this device ensures your high-power loads are managed efficiently, quietly, and safely.
Looking for high-quality Modular Contactors? At Wutai Electric, we specialize in CE and IEC-certified electrical components designed for reliability and longevity.
Contact our technical team for assistance with sizing.
