Why is Your AC Contactor not Pulling In: Reasons & Fixes

Is your air conditioner refusing to turn on? That sudden, unwelcome silence from your outdoor unit isn't just annoying—it's a clear sign something's amiss. Often, the quiet culprit is the AC contactor, a small but crucial electrical switch. This component is the gateway for serious power, energizing parts like your compressor which can draw 15-60 amps (learn more about AC energy use at Energy.gov). If your outdoor AC unit is silent, figuring out why this contactor isn't engaging is your first step back to comfort. We'll explore troubleshooting these HVAC problems.

What is an AC Contactor and Why is its "Pull-In" Action Critical?

So, what precisely is this vital component? Your AC contactor acts like the robust, automated manager for your air conditioner's high-power demands. It's a specialized type of relay, and understanding how does an air conditioner contactor work is key to diagnosing issues.

When your thermostat calls for cooling, it sends a low-voltage signal—typically 24V AC in most homes—to the 24 volt contactor coil. This energizes the coil, creating an electromagnetic field. This magnetic force is what makes an AC contactor close; it physically pulls in a plunger.

This 'pull-in' action completes the AC relay function, closing a set of high-voltage contacts. These contacts then allow the significant 240V AC power (as detailed by electrical standards from organizations like NEMA) to energize your compressor and fan. Without this, they simply stay off. You can delve into the basic principles of relay operation on sites like HowStuffWorks.

5 Reasons Your AC Contactor Refuses to Engage

Let's pinpoint why your AC contactor isn't engaging. We'll systematically explore the top five common culprits behind this frequent HVAC problem and show you precisely how to test for each. Identifying the specific issue is your first step to a fix.

No "Go" Signal – The Missing 24V AC at the Coil

Before suspecting the contactor, we must confirm it's getting its 24V AC command. This vital lifeline travels from the air handler's transformer, through your thermostat, and often via safety switches. A faulty transformer (typically outputting 22-28V AC) or a break in this chain, like a thermostat signal problem, means no message to the coil.

With your thermostat calling for cool (and extreme caution), use a multimeter on AC Volts across the coil's low-voltage terminals. Expect ~24V AC. If it's 0V or significantly under 18V, investigate upstream. Proper thermostat function is essential for correct signaling, as noted by the U.S. Department of Energy. This is key for testing 24v to contactor.

A Defective Coil

If 24V AC reaches the coil but there's no satisfying 'clunk,' its internal wiring may have failed. Coils, often lasting 5-10 years according to industry experience, can succumb to age, sustained low voltage, or power surges, exhibiting clear bad contactor coil symptoms.

(ENSURE ALL POWER IS OFF AND VERIFIED!) To confirm this, you'll need to test AC contactor coil with multimeter set to Ohms (Ω). A healthy 24V coil typically presents a contactor coil resistance reading between 10-20 Ohms. An 'OL' (Open Line) or zero reading indicates a failed coil, meaning replacing AC contactor coil is your next step. Reputable sources like Fluke provide guides on electrical resistance measurements.

Mechanical Jam

It's not always an electrical fault; sometimes the plunger is simply stuck. You might find ants in outdoor AC unit or other debris in contactor physically blocking movement, even if the coil is energized. Rust can also cause an AC contactor stuck closed (or open) situation.

(POWER OFF AND VERIFIED!) Visually inspect for nests, dirt, or corrosion. The National Pest Management Association often discusses how pests infiltrate outdoor equipment. Gently try depressing the plunger with an insulated tool. If it's stiff or gritty, cleaning stuck AC contactor (power off!) might be the solution.

Severely Damaged High-Voltage Contacts

High-voltage contacts endure significant arcing. Over time, this can lead to burnt AC contactor points or pitted electrical contacts. While welding often causes a 'won't shut off' issue, severe damage or debris might hinder the plunger from fully seating, especially with a weak coil.

(POWER OFF AND VERIFIED!) Examine the contact surfaces. Deep pitting or blackening are bad signs. While contact cleaner helps minor issues, significant damage or AC contactor arcing problems mean replacing contactor due to bad contacts is necessary. Poor connections create heat, a fire risk highlighted by the U.S. Fire Administration.

Incorrect Contactor Specifications

Crucially, ensure matching AC contactor specs, especially after an OEM contactor replacement.A wrong coil voltage contactor (e.g., a 120V coil in a 24V system) won't have the power to pull in.

An incorrect amperage rating is also a swift path to failure; the contactor amperage rating is important.Always verify against the unit's data plate or original part specifications. Adherence to standards, like those from NEMA (National

Electrical Manufacturers Association), is vital for safety and performance.

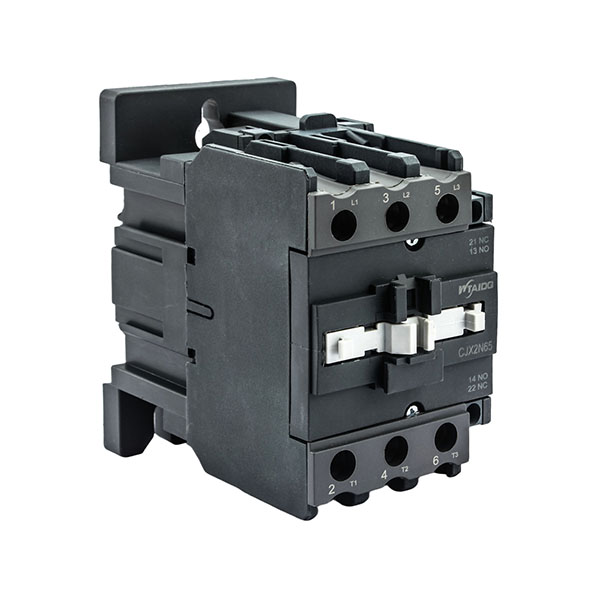

CJX2N65 Ecnomic type ac contactor - China best contactor supplier and manufacturer.

A Step-by-Step Troubleshooting Checklist

Ready to diagnose? Here’s a methodical checklist for bad contactor issues, outlining key AC diagnostic steps. Following these when troubleshooting AC not starting can help.

●   SAFETY PROTOCOL: Always begin by powering OFF at the breaker AND disconnect.Crucially, Verify 0 Volts with your multimeter. Your safety is paramount.

●   VISUAL ASSESSMENT (Power Confirmed OFF): Inspect for obvious damage, burnt marks, loose wiring, insect activity, or obstructions around the AC contactor plunger.

●   24V COIL VOLTAGE CHECK (Thermostat calling for cool; Power CAREFULLY & BRIEFLY restored by competent individuals ONLY): Measure AC voltage across coil terminals. Target: ~24V AC.

If ~24V is present, good; proceed to internal checks. If 0V or low, the problem is upstream. Power down fully to investigate further.

●   COIL RESISTANCE TEST (Power OFF & Verified!; Coil wires disconnected): This is key to how to test an HVAC contactor coil. Measure Ohms, comparing to ~10-20 Ohms (or specs).

An OL/Infinite or 0 Ohms reading typically signals a bad coil. For detailed multimeter usage, resources like Fluke's digital multimeter basics can be helpful.

●   MECHANICAL PLUNGER CHECK (Power OFF & Verified!): Gently depress the plunger with an insulated tool. Assess for smooth, free movement.

●   HIGH-VOLTAGE CONTACT INSPECTION (Power OFF & Verified!): Finally, check the contacts for severe pitting or any signs of burning.

A Critical Electrical Warning

Before even thinking about opening your outdoor AC unit, understand this: you're facing potentially lethal high voltages, typically 240V AC or more. There's a serious risk of electric shock AC work involves. Adhering to strict HVAC electrical safety guidelines isn't just recommended; it's essential.

First, how to safely work on AC unit begins with a complete power down. Go to your main electrical panel and turn OFF the circuit breaker that feeds the AC unit. Don't stop there.

Next, engage the local disconnect switch. This is usually a separate box mounted near your outdoor unit. Switch it to the OFF position. This double protection is crucial.

Finally, and most critically, comes verifying power off HVAC systems. Using a reliable multimeter (that you know is working correctly and you're proficient with), confirm 0 volts. Test between Line 1 and Line 2, Line 1 to Ground, and Line 2 to Ground at the contactor's line-side terminals.

Always wear appropriate Personal Protective Equipment (PPE), including insulated gloves and safety glasses. The Electrical Safety Foundation International (ESFI) offers extensive resources on preventing electrical accidents. Even the Occupational Safety and Health Administration (OSHA) details stringent electrical safety protocols for professionals.

If you harbor any doubt, hesitation, or lack the correct tools and knowledge, DO NOT PROCEED. Immediately call a qualified, licensed HVAC technician. Your safety is absolutely paramount and not worth any risk.

Conclusion

A silent AC unit, especially due to a non-engaging AC contactor, can feel overwhelming.But as we've detailed, the causes—from power supply hitches to component failure or mechanical blocks—are diagnosable.

Understanding these potential issues and safe diagnostics empowers you. Whether you carefully tackle a replacement or wisely call an HVAC professional, you've demystified a key part of your cooling system. Stay cool, and above all, stay safe!
