Original Factory LC1d25 New Type Contactor 3p Nc No 25A
It really is a good way to further improve our goods and service. Our mission would be to acquire inventive items to buyers with a very good encounter for Original Factory LC1d25 New Type Contactor 3p Nc No 25A, We guaranteed good quality, if consumers were not satisfied with the products’ good quality, you can return inside of 7days with their original states.
It really is a good way to further improve our goods and service. Our mission would be to acquire inventive items to buyers with a very good encounter for , We now have a good reputation for stable quality products, well received by customers at home and abroad. Our company would be guided by the idea of “Standing in Domestic Markets, Walking into International Markets”. We sincerely hope that we could do business with customers both at home and abroad. We expect sincere cooperation and common development!
Ac contactors – Definition & Types
An AC contactor functions as an electromechanical control device designed to establish or interrupt electrical connectivity between power sources and high-capacity loads. Equipped with integrated voltage transient suppression, these devices provide reliable switching operations in power distribution systems. Their primary applications encompass electrical apparatus control and power network management, particularly for operating industrial-scale loads such as motor drives, thermal regulation systems, and illumination control circuits.
As a standardized switching solution, AC contactors serve as critical interface components between control circuits and power equipment, enabling remote current regulation through low-power signal commands. Distinct from circuit protection devices, contactors maintain closed contacts under normal operation until receiving an open command or fault-induced automatic disengagement, ensuring continuous current conduction during equipment service cycles.
WTAIDQ Contactors
WTAIDQ: Global Leader in Electrification Solutions As an industry frontrunner in power infrastructure and industrial automation, WTAIDQ dominates global markets across high/low-voltage systems, energy transmission networks, and smart distribution solutions. Our core expertise lies in advanced electromechanical manufacturing, delivering an extensive portfolio including:
• Power regulation devices: AC/DC contactors with arc-suppression technology
• Circuit protection systems: MCB/MCCB breakers with precision trip mechanisms
• Ground fault protection: Intelligent earth leakage circuit breakers (ELCB)
• Energy distribution units: Modular distribution boards and busbar systems
• Industrial lighting solutions: High-efficiency luminaires with IoT compatibility
WTAIDQ’s integrated solutions encompass engineering design services, custom OEM manufacturing, and intelligent panel building solutions, particularly excelling in motor management systems and critical load protection. Certified to comply with stringent international certifications including IEC/EN 60947, our products demonstrate:
1.50,000+ mechanical operations lifecycle
2.100,000+ electrical endurance cycles
3.<15ms arc extinction capability
4.96%+ conductive material purity
Outperforming industry benchmarks set by Schneider Electric, Lovato, and Phoenix Contact products, WTAIDQ’s electropneumatic hybrid contactors achieve 30% higher switching stability and 40% reduced contact erosion through proprietary silver-nickel composite contact technology.
Definite Purpose Ratings
| Device | FLA | 240V | 480V | 600V |
|---|---|---|---|---|
| CJX2D09 (AC coil only) | 9 | 54 | 45 | 36 |
| CJX2D12 (AC coil only) | 12 | 72 | 60 | 48 |
| CJX2D18 (AC coil only) | 18 | 108 | 90 | 72 |
| CJX2D25 (AC coil only) | 25 | 150 | 125 | 100 |
| CJX2D32 (AC coil only) | 32 | 192 | 160 | 128 |
| CJX2D40A | 40 | 240 | 200 | 160 |
| CJX2D50A | 50 | 300 | 250 | 200 |
| CJX2D65A | 65 | 390 | 325 | 260 |
| CJX2D80 | 75 | 450 | 375 | 300 |
Technical Parameters
| Maximum Horsepower Ratings | Maximum Current (A) | UL General Purpose (A) | No. of Poles | Instantaneous Auxiliary Contacts | Catalog Number | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Three-Phase | Inductive | Resistive | N.O. | N.C. | N.O. | N.C. | ||||||
| 200V | 230V | 460V | 575V | Ac5 | Ac1 | |||||||
| 2 | 2 | 5 | 7.5 | 9 | 20 | 25 | 3 | 0 | 1 | 1 | CX2D09 | |
| - | 2 | 5 | - | - | 20 | 25 | 2 | 2 | 1 | 1 | CX2D098 | |
| 3 | 3 | 7.5 | 10 | 12 | 25 | 25 | 3 | 0 | 1 | 1 | CX2D12 | |
| - | 3 | 7.5 | - | - | 25 | 25 | 2 | 2 | 1 | 1 | CX2D128 | |
| 5 | 5 | 10 | 15 | 18 | 32 | 32 | 3 | 0 | 1 | 1 | CX2D18 | |
| - | 5 | 10 | - | - | 32 | 32 | 2 | 2 | 1 | 1 | CX2D188 | |
| 7.5 | 7.5 | 15 | 20 | 25 | 40 | 40 | 3 | 0 | 1 | 1 | CX2D25 | |
| - | 7.5 | 15 | - | - | 40 | 40 | 2 | 2 | 1 | 1 | CX2D258 | |
| 10 | 10 | 20 | 25 | 32 | 50 | 50 | 3 | 0 | 1 | 1 | CX2D52 | |
| 10 | 10 | 20 | 25 | 38 | - | - | 3 | 0 | 1 | 1 | CX2D58 | |
| 10 | 10 | 30 | 30 | 40 | 60 | 60 | 3 | 0 | 1 | 1 | CX2D40A | |
| 15 | 15 | 40 | 40 | 50 | 80 | 70 | 3 | 0 | 1 | 1 | CX2D50A | |
| 20 | 20 | 40 | 50 | 65 | - | - | 3 | 0 | 1 | 1 | CX2D65A | |
| 25 | 30 | 60 | 60 | 80 | 125 | 110 | 3 | 0 | 1 | 1 | CX2D80 | |
| 25 | 30 | 60 | 60 | 95 | - | - | 3 | 0 | 1 | 1 | CX2D95 |

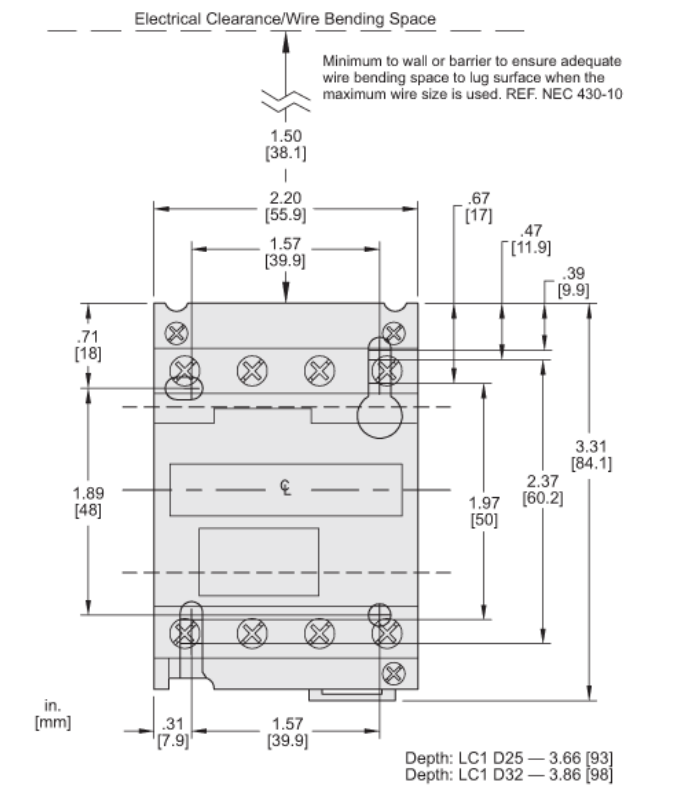

Dimensions(mm)
It really is a good way to further improve our goods and service. Our mission would be to acquire inventive items to buyers with a very good encounter for Original Factory LC1d25 New Type Contactor 3p Nc No 25A, We guaranteed good quality, if consumers were not satisfied with the products’ good quality, you can return inside of 7days with their original states.
Original Factory Contactor and Relay Contactor, We now have a good reputation for stable quality products, well received by customers at home and abroad. Our company would be guided by the idea of “Standing in Domestic Markets, Walking into International Markets”. We sincerely hope that we could do business with customers both at home and abroad. We expect sincere cooperation and common development!
