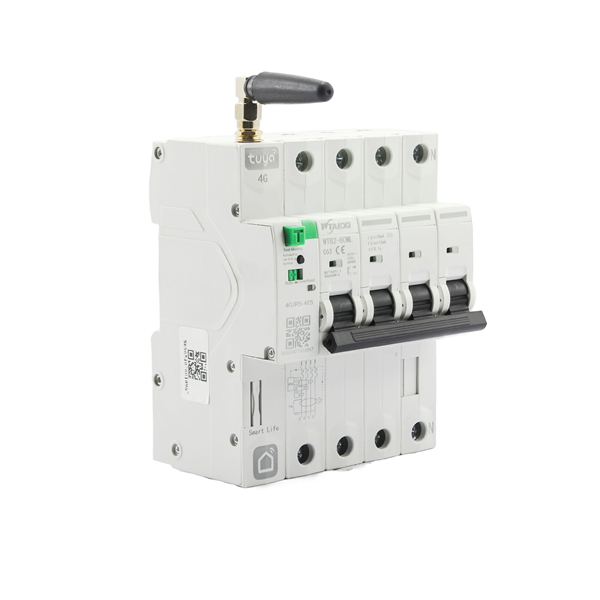

WTB2-80ML 4P IOT 4G Smart Circuit Breaker

Short Description:

WTB2-80ML 4P loT 4G Intelligent Leakage Circuit Breaker, suitable for rated working voltageto 230V/400V,Ac 50Hz.In the terminal distribution lines of commercial office buildings,residential buildings and general industrial purposes with rated currents up to 80A, the lines are protected from overload, short circuit and residual current through the internet ofThings commlnication technology,and thelines can also be converted infrequently under normal circumstances.

Meets standardsGB16917.1.1EC61 009-1.

Send email to us

Product Detail

Product Tags

Smart Circuit Breaker, suitable for circuits with rated working voltage of 230V/400V, AC 50Hz, and rated current up to 80A.

This electrical protection device instantaneously interrupts power supply upon detecting personnel electric shock or leakage current surpassing preset thresholds, effectively safeguarding human lives and ensuring equipment integrity. Featuring dual overload and short-circuit protection mechanisms for electrical circuits, the device additionally enables occasional circuit switching operations within rated operational parameters.

Leveraging IoT communication technologies (WIFI, LoRa, NB-IoT, 4G, RS-485, Bluetooth, Ethernet, etc.), this system enables telecontrol of circuit breakers to execute automated closure/power-on and main switch disconnection/power-off operations. The integrated smart metering system aggregates critical parameters including voltage, current, leakage current, internal temperature, energy consumption, contact status (closed/open), and fault alerts for overload, short-circuit, and leakage conditions. Through advanced data analytics and statistical computations, it facilitates remote energy management and power optimization across multiple application scenarios, establishing intelligent electrical safety protocols.

The solution is extensively deployed in residential, dormitory, municipal infrastructure, street lighting, agricultural facilities, and rental property circuits requiring centralized remote power management.

Wutai smart circuit breaker features an integrated multi-protection architecture encompassing overload/short-circuit prevention, thermal regulation, load/power restriction, voltage/current surveillance, energy metering, and safety-enhanced maintenance switching. Its advanced monitoring suite includes leakage current detection with self-diagnostic verification, adaptive current modulation, ground fault protection, and dual voltage threshold guardianship (over/under voltage protection). Complemented by professional project-tailored solutions, the smart circuit breaker as a unified electrical safeguard system - consolidating nine conventional low-voltage protection devices into a single smart unit.

Technical Parameters

Product model	WTB2-80	WTB2-80

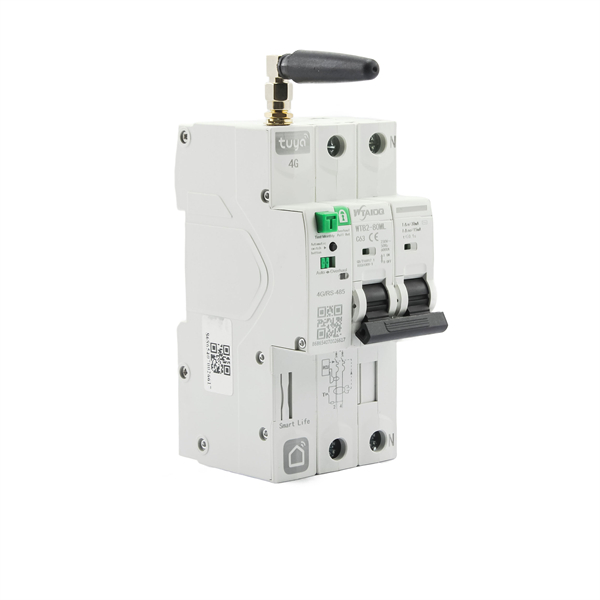

Product picture
Number of poles	2P	4P
Rated working voltage(V)	AC230V	AC400V
Rated working current(A)	32,40,50,63,80	32,40,50,63,80
Tripping characteristics	B,C,D	B,C,D
Rated breaking capacity	6kA	6kA
Mechanical life	20000order	20000order
Electrical lifespan	10000order	10000order
Wiring capability	25mm²and following	25mm²and following
Remaining action types	AC	AC
Rated residual operating current mA	30mA,50mA,100mA,300mA	30mA,50mA,100mA,300mA
Monitoring parameter	Current, voltage, leakage value, electricity quantity, frequency, temperature, etc	Current, voltage, leakage value, electricity quantity, frequency, temperature, etc
Communication method	Rs485 Bluetooth 4G	Rs485 Bluetooth 4G
Ambient temperature	-25℃-+65℃(-40℃-+70℃)	-25℃-+65℃(-40℃-+70℃)
Relative humidity of air	≤95%	≤95%
Altitude	≤2000m	≤2000m
Pollution level	2	2
Vibration and shock	In situations without vibration and impact	In situations without vibration and impact
Protection level	Ip20	Ip20
