AC pedestals and DC fast chargers switch high current on the DC side and still need AC incoming protection. Use DC-rated contactors and breakers, not AC parts pushed into DC.
On an AC charger, WTSP-A40 and an AC MCB sit on the grid side.
On a DC fast charger, CJX2-Z DC contactors close the output, WTM7-63 / WTM1-250 isolate DC faults, and WTSP-D40 clamps PV-style DC surges on the DC bus.
WTM7-63 is a 63A-frame DC MCB, 250V DC, Icu 6kA, In 3-63A, thermal-magnetic C curve.
For higher voltage DC distribution use WTM1-250 4P DC MCCB: 250A, DC 1500V or less, IEC 60947-2.
CJX2-2510Z and CJX2-4011Z are 25A and 40A DC contactors.
DC arcs do not cross zero. The charger needs a DC contactor to make/break load and a DC breaker to clear faults.
CJX2-2510Z (25A) and CJX2-4011Z (40A) DC contactors close the DC output. Size the pole current to the charger module, not to an AC equivalent.
WTM7-63 DC MCB: 250V DC, Icu 6kA, In 3-63A, C curve. When the DC bus is higher voltage or 250A class, use WTM1-250 4P DC MCCB at DC 1500V or less, IEC 60947-2.
WTSP-A40 protects the AC incoming. WTSP-D40 is the DC SPD for the DC circuit / PV-style bus inside the charger or canopy.
DC contactors and breakers for the output path; AC SPD for the grid infeed.
CJX2-2510Z DC Contactor 25A. Modular design, 50,000+ mechanical operations. View CJX2-2510Z DC Contactor 25A →
CJX2-4011Z DC Contactor 40A. 100,000+ electrical endurance, silver alloy contacts. View CJX2-4011Z DC Contactor 40A →
WTM7-63 2P DC Miniature Circuit Breaker. 63A rated, 2-pole, DC MCB. View WTM7-63 2P DC Miniature Circuit Breaker MCB →
WTM1-250 4P DC MCCB. 250A rated, 4-pole. Overload/short circuit protection for DC circuits. View WTM1-250 4P DC Molded Case Circuit Breaker MCCB →

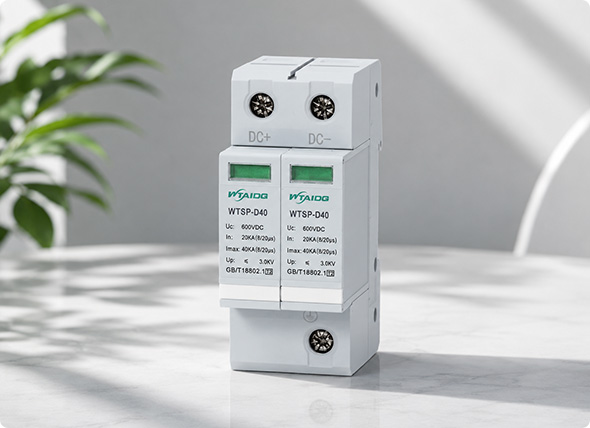

WTSP-D40 DC Surge Protection Device SPD. DC circuit surge protection. View DC Surge Protection Device SPD WTSP-D40 →
WTSP-A40 AC Surge Protective Device SPD. Protection for electrical systems. View WTSP-A40 AC Surge Protective Device SPD →
Pick AC or DC ratings from the charger schematic, then match the SKU.
AC incoming MCB + WTSP-A40. Residual-current function if the charger spec asks for it on the AC side.

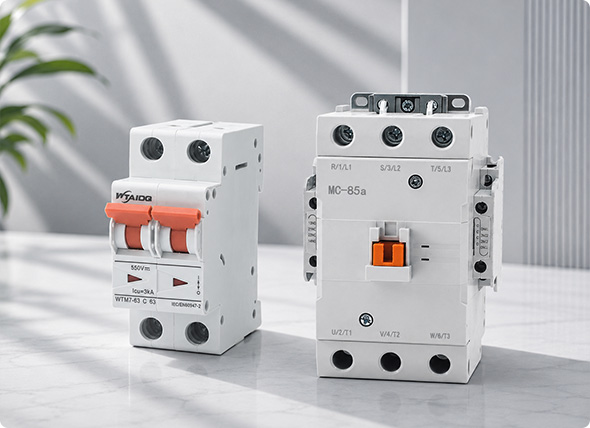

CJX2-Z 25A or 40A to make/break DC. WTM7-63 on 250V DC circuits up to 63A.
WTM1-250 4P DC MCCB, 250A, DC 1500V or less, for solar-tied or high-voltage DC buses.
WTSP-D40 on the DC bus, WTSP-A40 on the AC infeed.
