Q3R-63 4P Dual Power Automatic Transfer Switch ATS

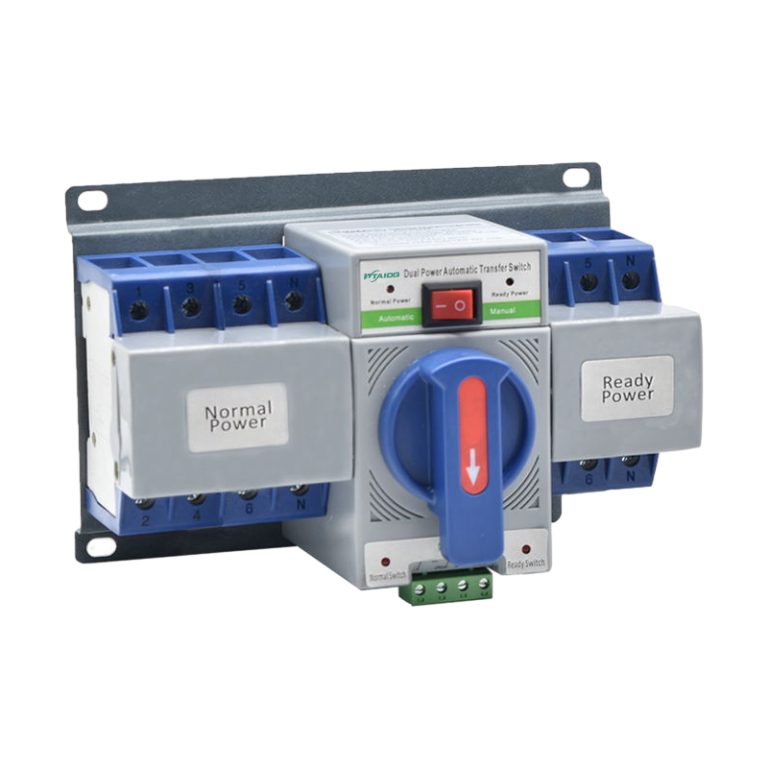

Q3R-63 4-pole dual power ATS for 63A circuits, with Normal Power and Ready Power blocks, Automatic and Manual buttons, four status lamps and a hand handle.
automatic transfer switch
Automatic transfer switches for seamless changeover between primary and backup power sources.
automatic transfer switch products
Q5-100 4P Dual Power Automatic Transfer Switch ATS

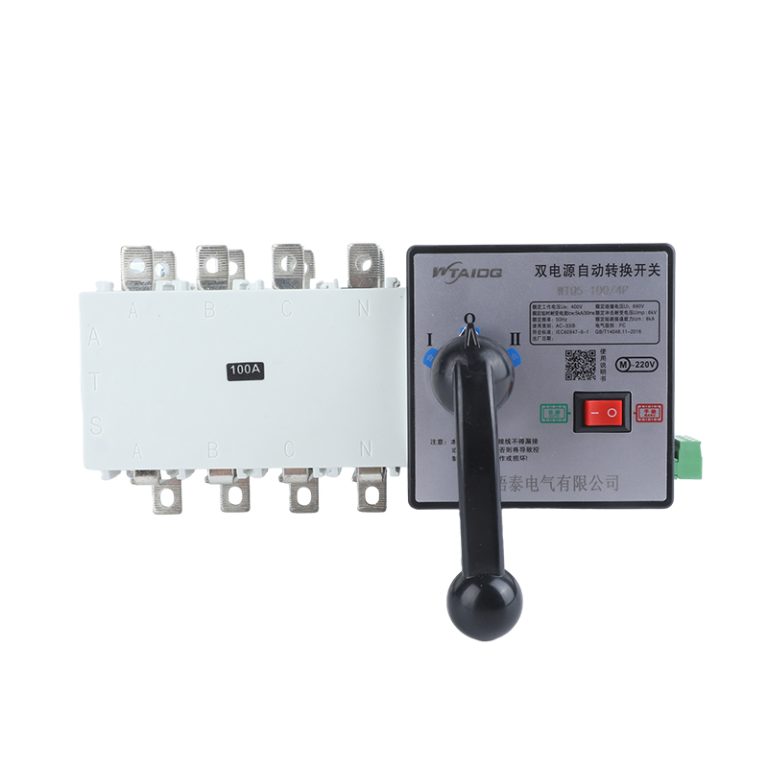

Q5-100 4-pole dual power transfer switch, 100A per pole, 400V AC, Icw 5kA for 30ms, Icm 8kA, 220V motor drive plus a front lever for hand changeover.
Q5-630 4P Dual Power Automatic Transfer Switch

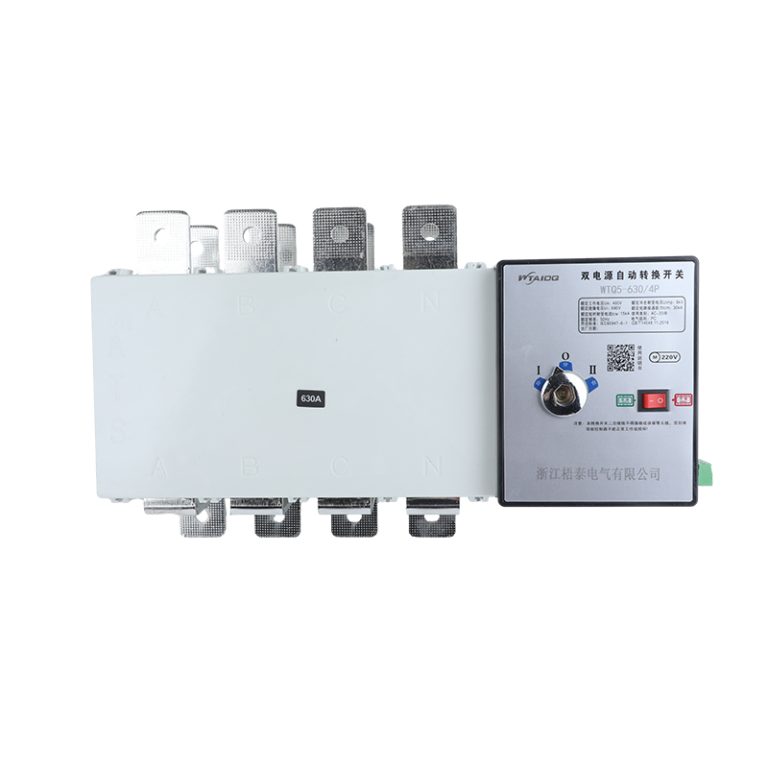

Q5-630 4-pole PC class dual power transfer switch, 630A per pole, 400V AC, AC-33B, Icm 15kA, switched neutral and a hand selector.
Sizing a Transfer Switch?
Send the load current, the generator rating and whether the neutral is switched. We reply within 24 hours with the frame, the pole arrangement and the panel dimensions.
TRANSFER SWITCHES
Four-Pole Automatic Transfer Switches for Generator Backup
An automatic transfer switch is the device that decides where the building gets its power. When the mains drops, it opens the mains side and closes the generator side; when the mains returns and stays stable, it changes back.
Three frames cover 63 A, 100 A and 630 A, all four-pole. The fourth pole switches the neutral, which is what a separately derived generator supply needs, so the load is not tied to a dead neutral.
Sizing follows the load, not the generator nameplate: a transfer switch rated below the load will overheat even when the generator is large enough. Units carry CE and CCC marking.
Choosing a Transfer Switch
Size on the load current, confirm the pole count against the earthing arrangement, and check that the enclosure and cable entry fit the board.| Model | Current | Poles | Use |
|---|---|---|---|
| Q3R-63 | 63 A | 4P | Shop and office boards |
| Q5-100 | 100 A | 4P | Telecom, cold rooms |
| Q5-630 | 630 A | 4P | Building supplies |
Before you order
- Give the load current and the generator rating, so the switch is sized for the load and the generator can carry the starting current.
- Confirm four-pole switching if the generator neutral is separately derived or the installation rules require the neutral to be isolated.
- Check the panel space and cable entry before the board is built, not after.
Load, Neutral, Enclosure
Size on Load, Not on Generator kW
A transfer switch rated below the load overheats even when the generator could carry it.
Four Poles Only Where the Neutral Is Switched
That follows the earthing arrangement, not the size of the building.
Check the Enclosure Before the Board
Cable entry and depth are fixed at panel build, not at commissioning.
COMMON QUESTIONS
Frequently Asked Questions
Size on the load the generator will carry, not on the generator nameplate. The switch has to carry the running load plus the starting surge of the largest motor, and the generator has to be able to supply both.
Where the neutral has to be isolated with the phases, which is usual with a separately derived generator supply or where the installation rules require it. A three-pole switch leaves the neutral connected to the mains side.
An automatic switch senses the mains and changes over by itself. A manual switch needs an operator to move it. These frames are automatic dual-power switches; if you need manual, say so before the order.
The changeover time depends on the controller, the generator start sequence and the load. The switch itself only needs a fraction of a second to move; the delay is normally the generator cranking and stabilising.
Only if the generator has the right output and the installation is arranged for it, which usually means an inlet and an interlock. A portable set plugged into a socket without an interlock risks back-feeding the mains.
