WTC1-C 800V 3P DC Surge Protection Device
WTC1-C 800V 3P DC Surge Protection Device, Uc 800Vdc, In 20kA, Imax 40kA, Type 2 modules on DC+, earth and DC- for floating PV arrays.
dc spd
DC surge protectors for PV arrays and DC lines, helping reduce lightning and surge damage risk.
dc spd products
WTC1-C 800V 2P DC Surge Protection Device
WTC1-C 800V 2P DC Surge Protection Device, Uc 800Vdc, In 20kA, Imax 40kA, Up 3.8kV, Type 2 plug-in modules on a DC+ and DC- base with an earth terminal.

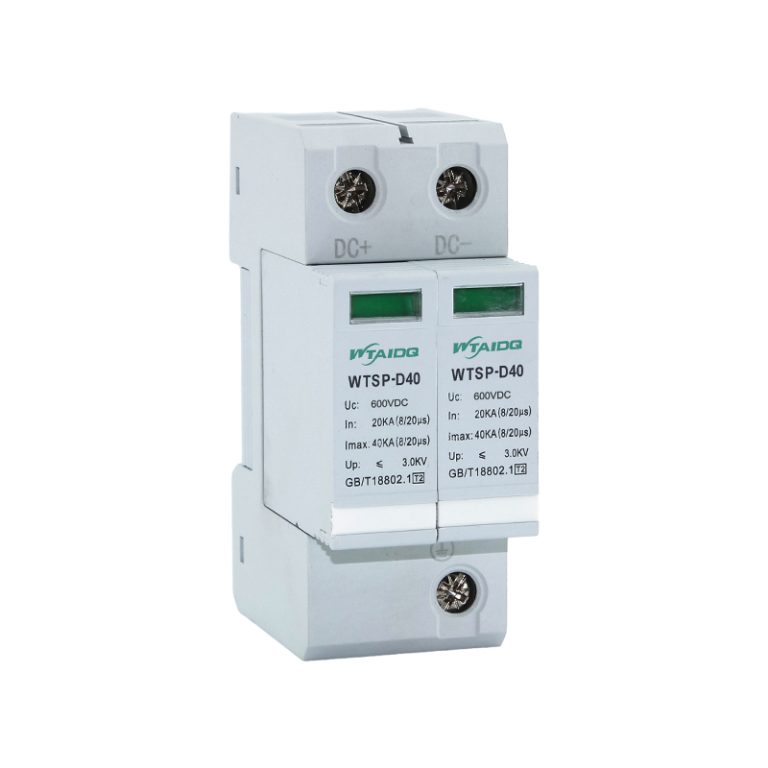

DC Surge Protection Device SPD WTSP-D40
DC Surge Protection Device SPD WTSP-D40 for 500V to 1000V DC strings, 20kA nominal and 40kA maximum, Up 2.0kV to 5.3kV, 35mm DIN rail.
Protecting an Inverter Input?
Send the array maximum voltage, the string count and the combiner layout. We reply within 24 hours with the device, the fuse coordination and the wiring diagram.
DC SURGE PROTECTION
DC Surge Protection for Solar Arrays
The DC side of a solar installation is long, exposed and ungrounded on many systems, which makes it a good path for induced surges from nearby lightning. A DC surge device gives that surge somewhere to go before it reaches the inverter.
WTSP-D40 is fitted in the DC combiner or close to the inverter input, wired in parallel with the DC supply and mounted on DIN rail next to the string fuses and the DC breaker.
The array voltage governs the choice, and cold weather matters: open-circuit voltage rises as temperature falls, so the device rating has to cover the coldest morning the site will see, not the nominal string voltage. Units carry CE and CCC marking.
Protecting the DC Side
Fit the device where the DC cables enter the building or the combiner, and keep the leads to the busbar short.| Location | Why there | Note |
|---|---|---|
| DC combiner | Several strings meet, one device can protect them | Check the combined current rating |
| Inverter input | Protects the most expensive device on the array | Often combined with the combiner |
| Roof entry | Surge diverted before the cable run enters the building | Needs a local earth |
Before you order
- Use the maximum system voltage, and check the open-circuit voltage at the lowest expected temperature.
- Keep the earth lead short and direct. A long earth path raises the voltage the equipment sees, which defeats the device.
- Record the installation date and check the status indicator at every service.
COMMON QUESTIONS
Frequently Asked Questions
Where the array is exposed or the cable run is long, yes. The DC side carries induced surges into the inverter, and the inverter is the most expensive component to replace. Local rules and the site exposure decide whether it is mandatory.
At the point where the DC cables enter the building or the combiner, as close as possible to the equipment it protects, with short leads to the busbar and a direct earth.
The maximum system voltage of the array, checked against the open-circuit voltage at the lowest expected temperature. Cold raises the voltage, and a device rated at the nominal figure can be under-rated on a winter morning.
Yes, at the common busbar where the strings meet, provided the device is rated for the combined current. At the string level, each string would need its own device, which is rarely economic.
