WTHB Fuse Switch Disconnector 3 Pole 160A to 630A
WTHB fuse switch disconnector in three poles, four frames 160A to 630A, AC400V and AC690V or DC1000V, making 10 times Ie, breaking 8 times, 50kA limit.
dc fuse
DC fuses for PV strings and combiner boxes, providing fast overcurrent protection in solar circuits.
dc fuse products
WHDS-32 DC Fuse Holder 10x38mm 1000V DC
WHDS-32 DC fuse holder for one Ø10x38mm link at 1000V DC, 20kA breaking capacity, 2.5 to 10mm2 terminals, IP20 cover and DIN rail mounting.
WHDS-63 DC Fuse Holder 1500V DC for 10x14x85 Fuses
WHDS-63 DC fuse holder for Ø10/14×85 fuses at 1500V DC, marked 1500V DC 50A, links from 1A to 25A, 20kA breaking capacity and a 2.5 to 10mm2 terminal.

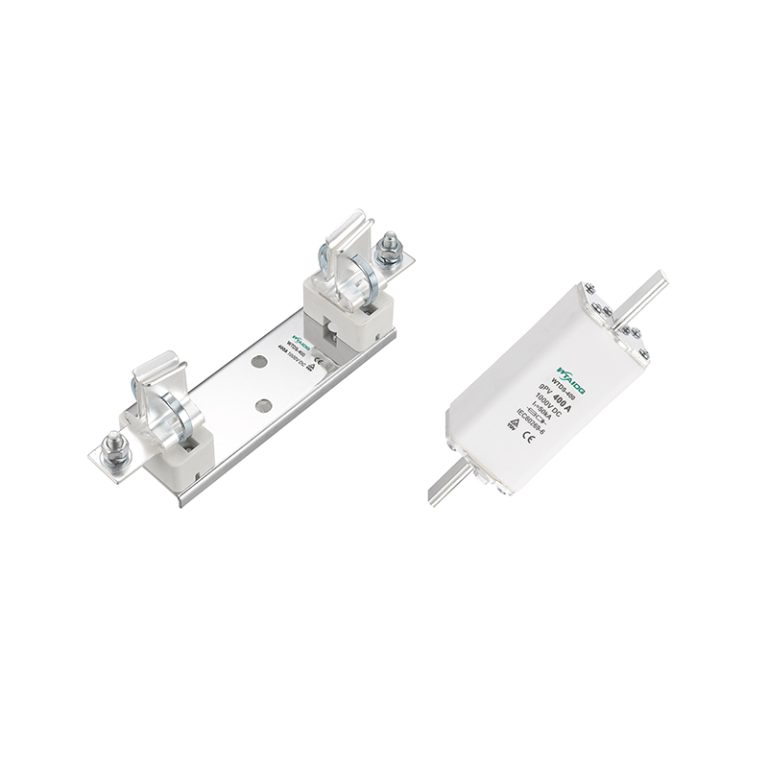

WTDS DC Fuse
WTDS DC fuse for PV array outputs, 1000V DC gPV links with 50kA breaking capacity, four frames from 160A to 630A with ratings from 63A up to 630A.

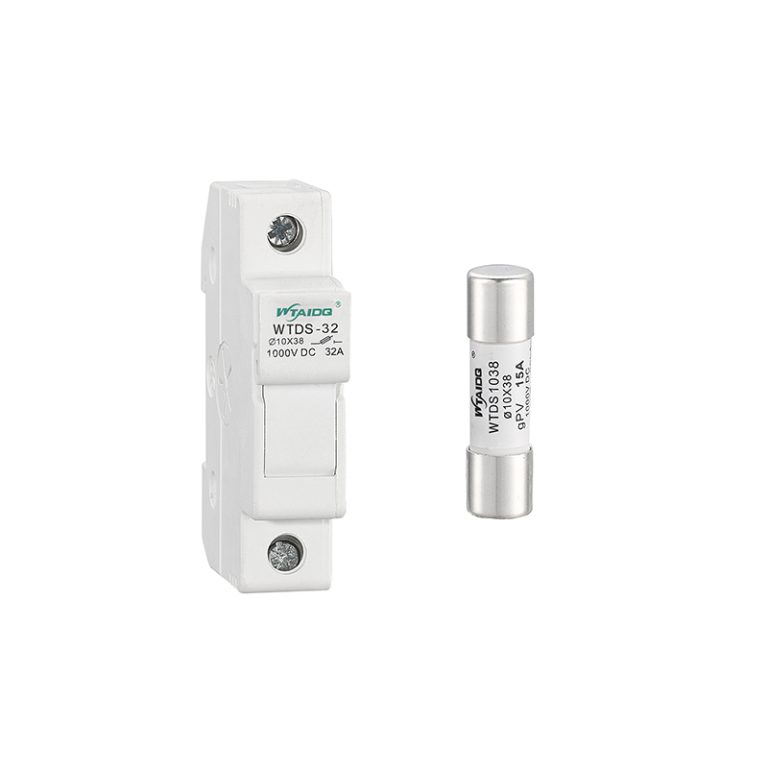

WTDS-32 DC Fuse 10x38mm
WTDS-32 DC fuse in the 10x38mm size, one pole DIN holder plus a 1000V DC gPV link, current steps from 1A to 32A, 2.5 to 10mm2 terminals and IP20 cover.
Fusing Strings in a Combiner?
Send the module short-circuit current, the string count and the cable size. We reply within 24 hours with the fuse rating, the holder and the connector to match.
DC FUSES
10×38 mm DC Fuses for Solar String Protection
A DC fuse in a solar array does one job: if one string faults, the other strings in parallel will push current into it, and the fuse is what stops that reverse current before the cable is damaged. Without fuses, a single fault can take out a whole array's wiring.
WTDS fuses use the 10×38 mm cylindrical body, which fits standard holders and the MC4H in-line fuse connector. The WTDS-32 is rated 32 A, the common size for one string of modern modules.
The rating is chosen from the string current and the cable ampacity, with allowance for the higher temperature inside a combiner box. Units carry CE and CCC marking.
Sizing a String Fuse
The fuse has to sit above the string current and below the cable rating. Inside a hot combiner, that window narrows.| Model | Body | Rating | Fits |
|---|---|---|---|
| WTDS-32 | 10×38 mm | 32 A | Standard holders, MC4H |
| WTDS series | 10×38 mm | Range on request | Combiners, in-line holders |
Before you order
- Use the module data sheet: short-circuit current and maximum series fuse rating are printed there.
- Derate for heat. A fuse inside a sealed combiner runs hotter and carries less; the manufacturer’s derating curve applies.
- Match the holder. The 10×38 mm body only fits holders and connectors made for that size.
COMMON QUESTIONS
Frequently Asked Questions
Start from the module short-circuit current and the maximum series fuse rating on the data sheet, then pick a rating above the string current and below the cable ampacity. A 32 A fuse is common for a single string of modern modules, but the data sheet governs.
A DC fuse is built to interrupt a fault current that never crosses zero, so it has a different element and arc-quenching filling. An AC fuse of the same current rating is not a safe substitute on a DC string.
Yes. The 10×38 mm fuse only works in a matching holder, either in a combiner or in the MC4H in-line connector. A fuse clipped to a cable is not an installation.
Because a fault in one string let the other strings feed current into it, or because the fuse was undersized for the actual string current. Replace the fuse only after finding which of those two it was.
