WTH8-40Z Household Modular Contactor

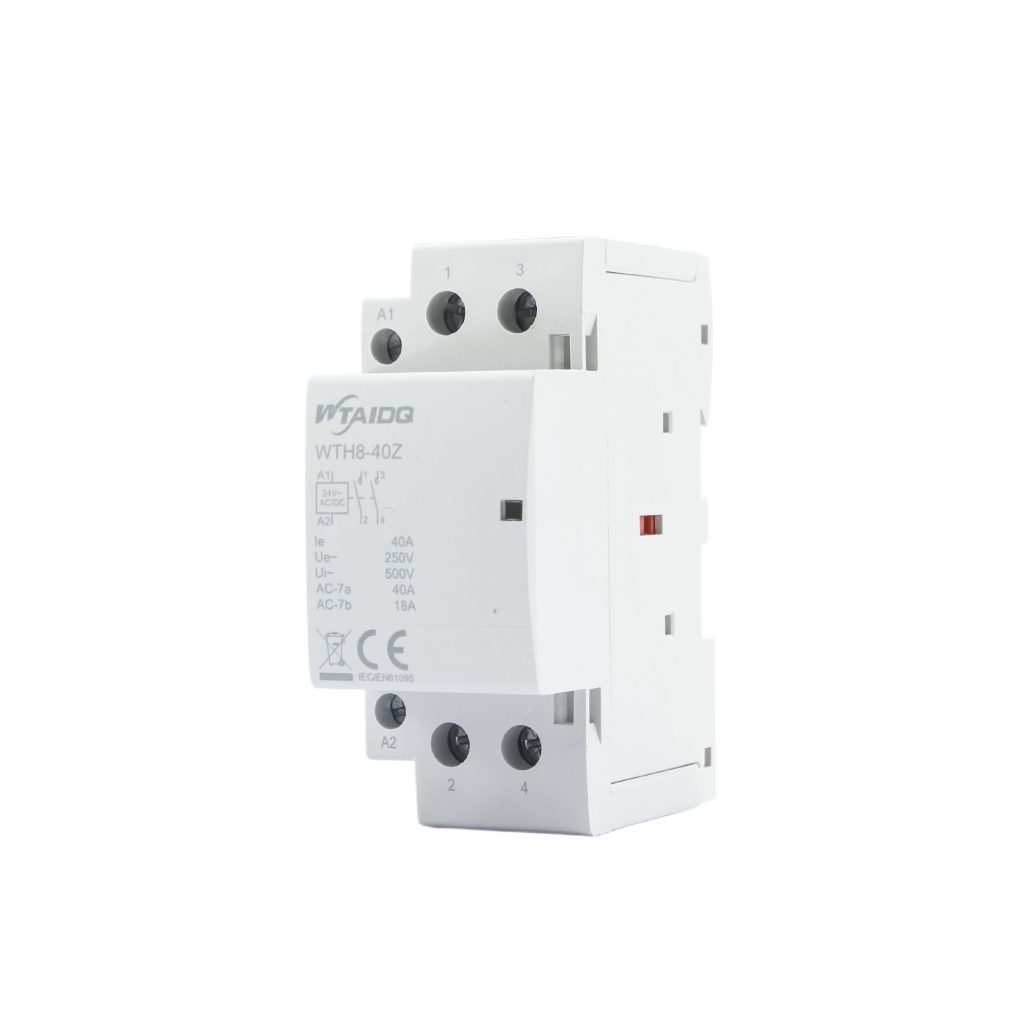

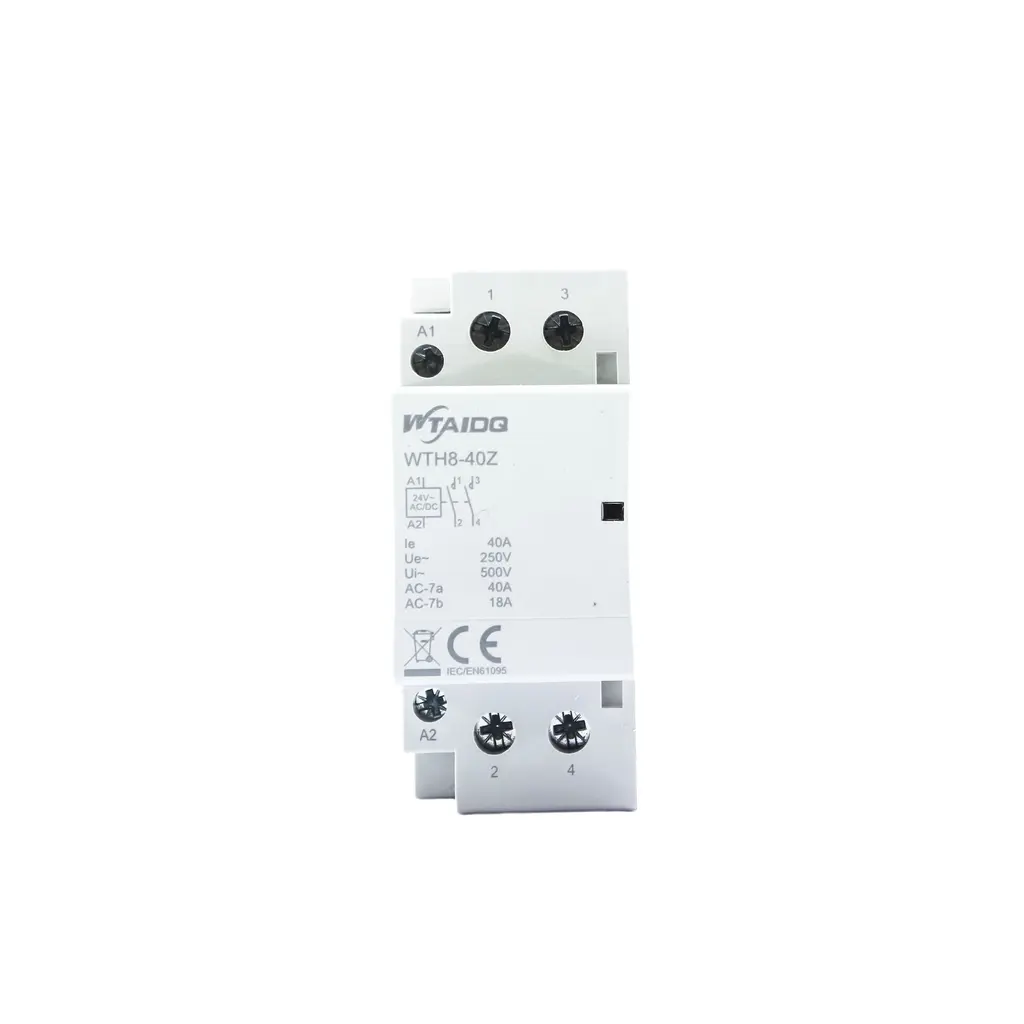

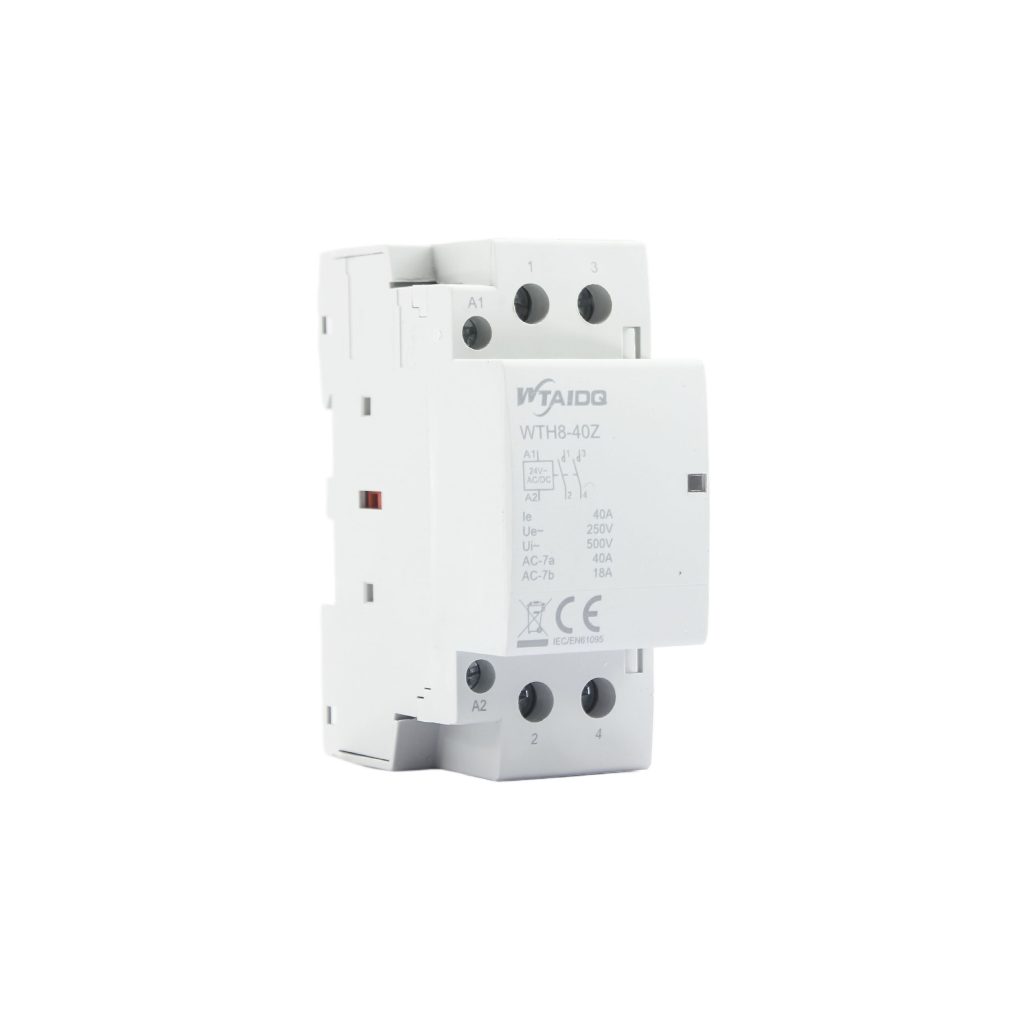

WTH8-40Z AC/DC Household Modular Contactor 40A

Model: WTH8-40Z AC/DC Household Modular Contactor, 40A, one coil for AC and DC control.

Coil: AC/DC 12V, 24V, 48V, 110V and 230V, no separate DC variant needed.

Duty: 40A in AC-7a and AC-1, 18A in AC-7b and AC-3, on a 63 thermal current.

Control power: 15 at 400V for AC-7a and 6kW at 400V for AC-7b.

Life and voltage: 100,000 electrical and 1 million mechanical operations, 500V insulation.

WTH8-40Z AC/DC Household Modular Contactor 40A

The WTH8-40Z is the 40A AC/DC modular contactor, built on the 63A thermal frame with a coil that accepts AC or DC control at 12V to 230V.

AC/DC Coil

AC-7a and AC-1 duty is 40A with 9kW at 250V and 15kW at 400V. AC-7b and AC-3 duty is 18A with 4kW at 250V and 6kW at 400V. Conventional thermal current is 63A.

Current Ratings

The coil is rated AC/DC 12V, 24V, 48V, 110V and 230V, so a DC control circuit uses the same contactor as an AC one.

Life and Insulation

Electrical life is 100,000 operations and mechanical life 1 million, at 500V insulation. Power terminals take 1.5 to 6mm2 on this frame with 0.8 Nm torque.

Ordering

Tell us the control voltage, contact configuration and current and we will confirm the model.
