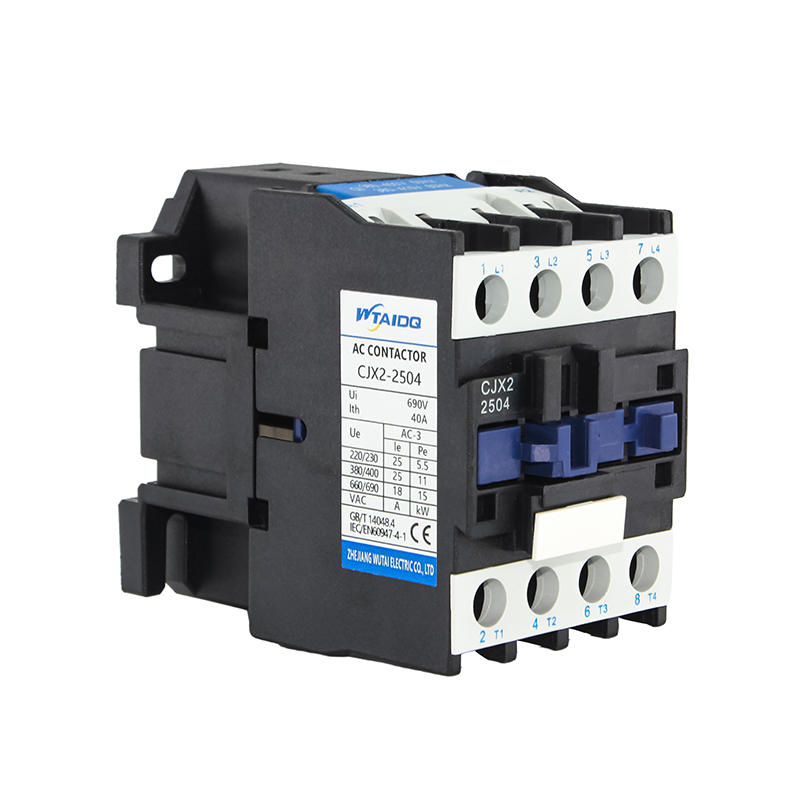

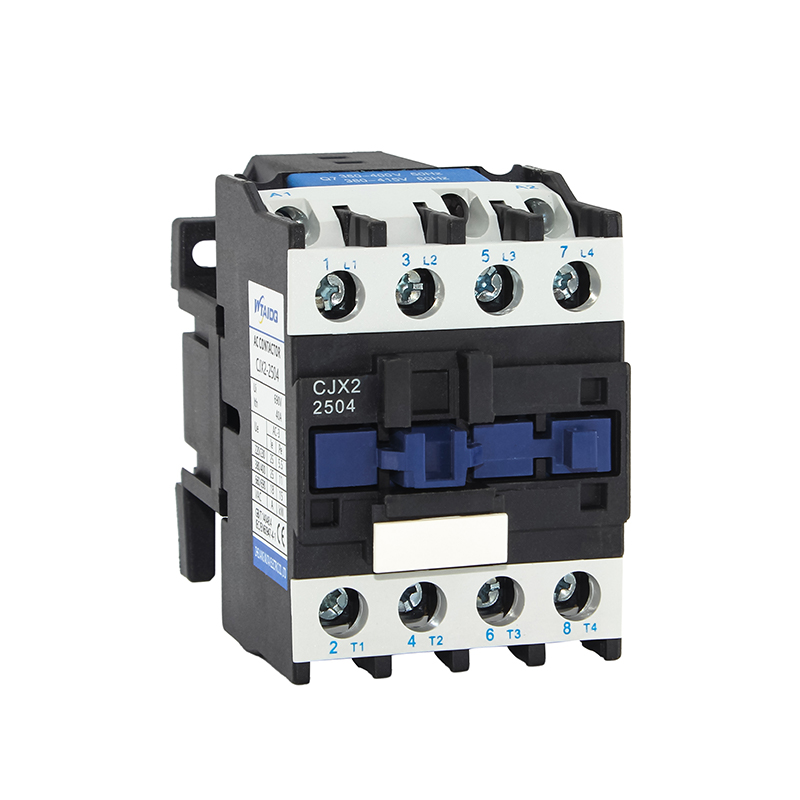

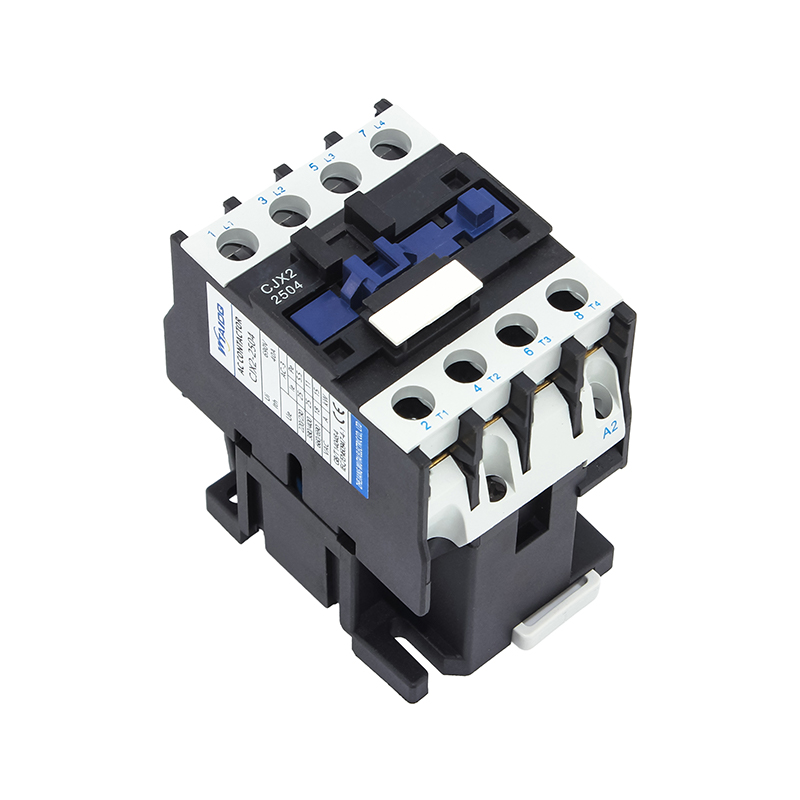

4P Contactor CJX2-2504

CJX2-2504 4P AC Contactor 25A

Rated current: AC Contactor 25A rated 25A at AC-3 380/400V, 18A at 660/690V.

Pole configuration: 4P, in 4NO (CJX2-250404) or 2NO+2NC (CJX2-250408) contact forms.

Motor rating: 11kW at 380/400V AC-3, 15kW at 660/690V AC-3.

Coil options: 24V, 36V, 110V, 220V or 380V, 50/60Hz, pick-up at 85%-110% Us.

Service life: 10 million mechanical and 1 million AC-3 electrical operations.

CJX2-2504 4P AC Contactor 25A for Motor and Load Control

The CJX2-2504 is a AC Contactor 25A rated 25A in AC-3 duty, built for switching motor and heating loads in control panels and distribution boards.

4-Pole Contact Configuration

Four poles switch the three phases and the neutral in one unit, which saves space where a 3-pole contactor plus a separate neutral link would not fit. The contactor comes as 4NO (CJX2-250404) or 2NO+2NC (CJX2-250408).

Rated Current and Motor Power

In AC-3 duty the contactor carries 25A at 380/400V and 18A at 660/690V, switching motors up to 11kW at 380/400V and 15kW at 660/690V. Stipulated heating current is 40A.

Coil and Control

Coils are available at 24V, 36V, 110V, 220V and 380V, 50/60Hz. Pick-up happens at 85% to 110% of rated control voltage, release at 20% to 75%.

Mechanical and Electrical Life

The contactor reaches 10 million mechanical operations and 1 million AC-3 electrical operations. Fuse protection is provided by an RT16-50.

Send your coil voltage and contact form to WTAIDQ for a quote.
