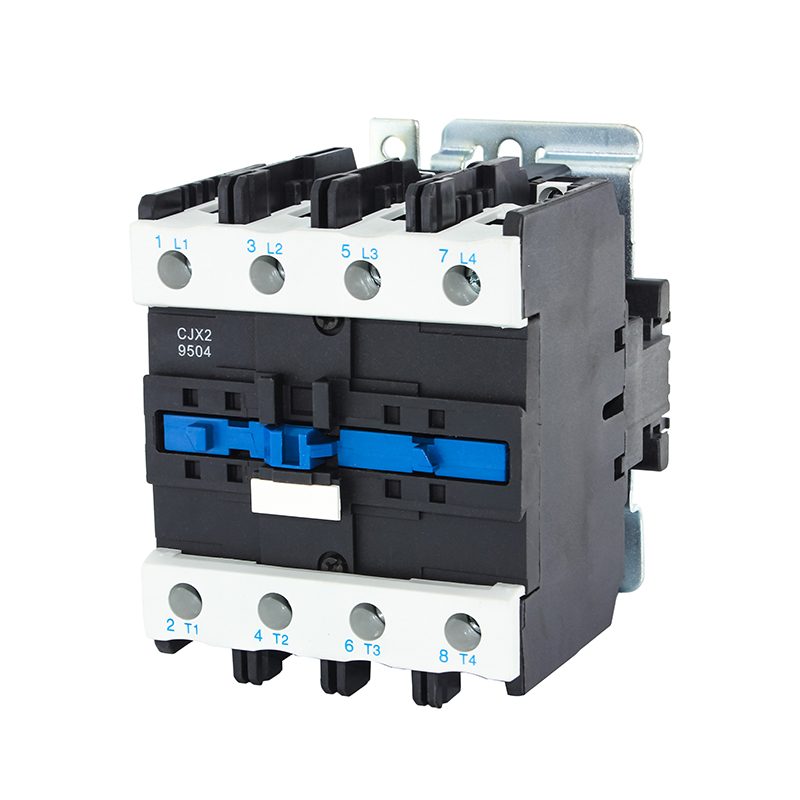

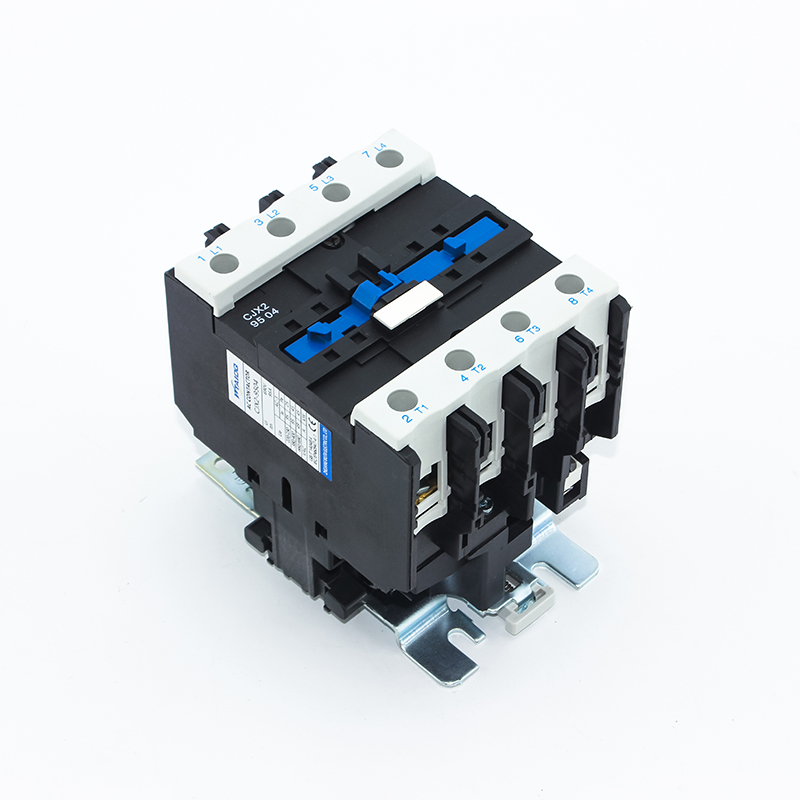

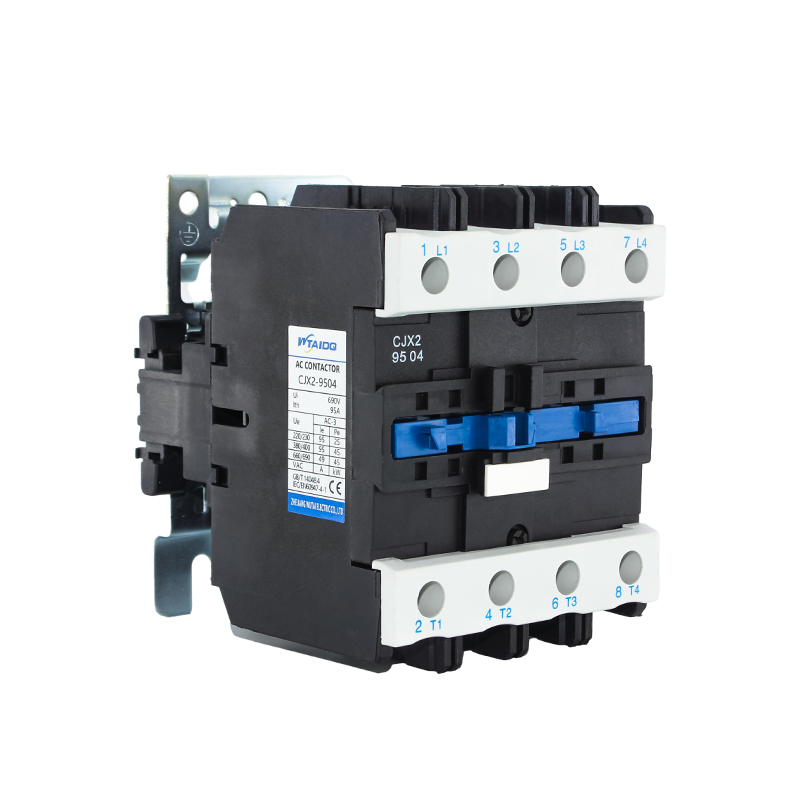

CJX2-9504 4P AC Contactor 95A for Motor and Load Control
The CJX2-9504 is a AC Contactor 95A rated 95A in AC-3 duty, built for switching motor and heating loads in control panels and distribution boards.
4-Pole Contact Configuration
Four poles switch the three phases and the neutral in one unit, which saves space where a 3-pole contactor plus a separate neutral link would not fit. The contactor comes as 4NO (CJX2-950404) or 2NO+2NC (CJX2-950408).
Rated Current and Motor Power
In AC-3 duty the contactor carries 95A at 380/400V and 49A at 660/690V, switching motors up to 45kW at 380/400V and 45kW at 660/690V. Stipulated heating current is 125A.
Coil and Control
Coils are available at 24V, 36V, 110V, 220V and 380V, 50/60Hz. Pick-up happens at 85% to 110% of rated control voltage, release at 20% to 75%.
Mechanical and Electrical Life
The contactor reaches 6 million mechanical operations and 0.6 million AC-3 electrical operations. Fuse protection is provided by an RT16-125.
Send your coil voltage and contact form to WTAIELE for a quote.
