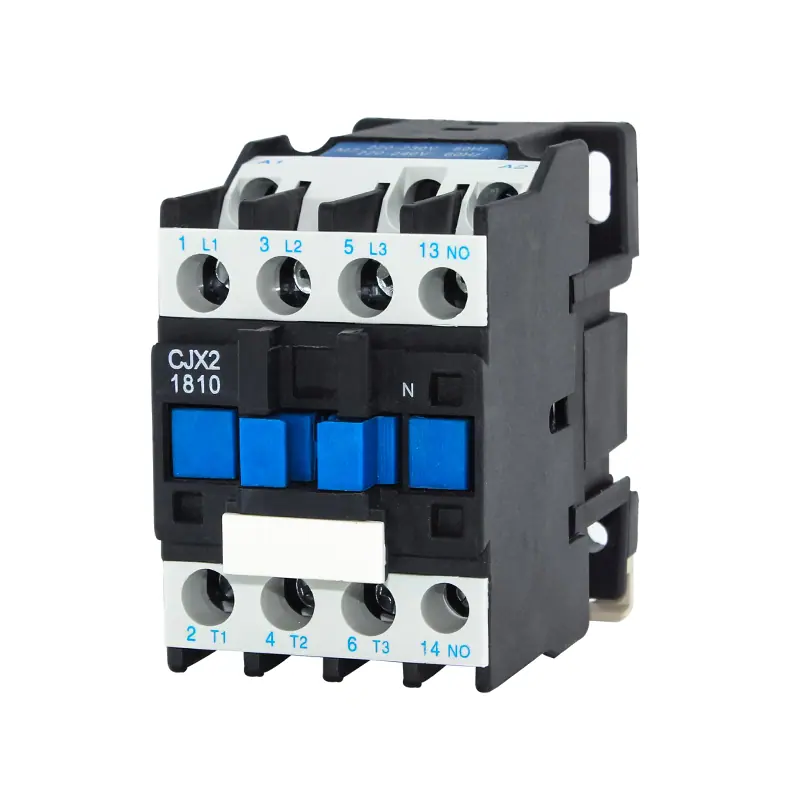

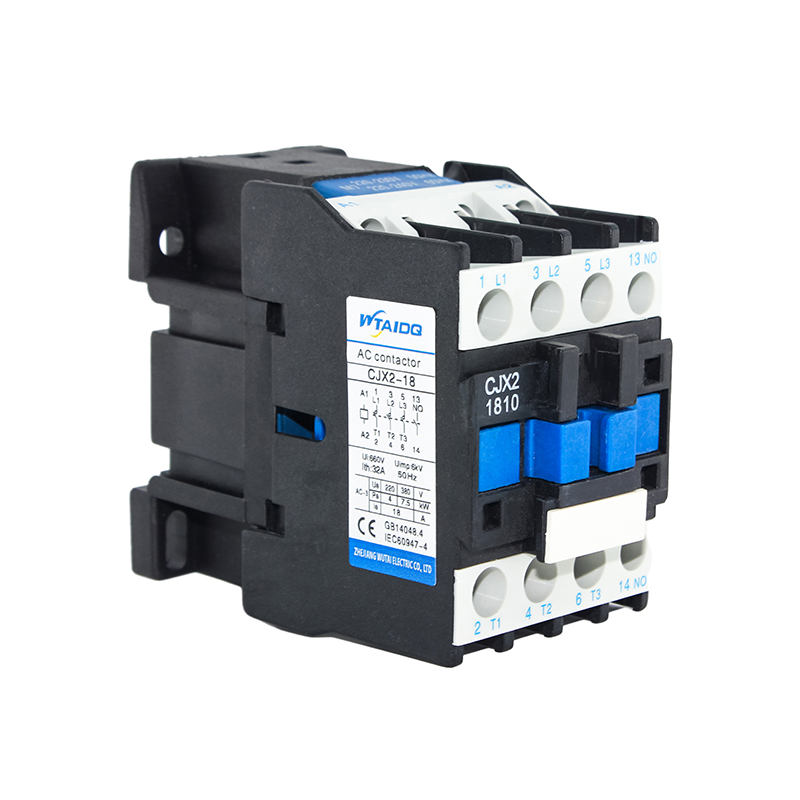

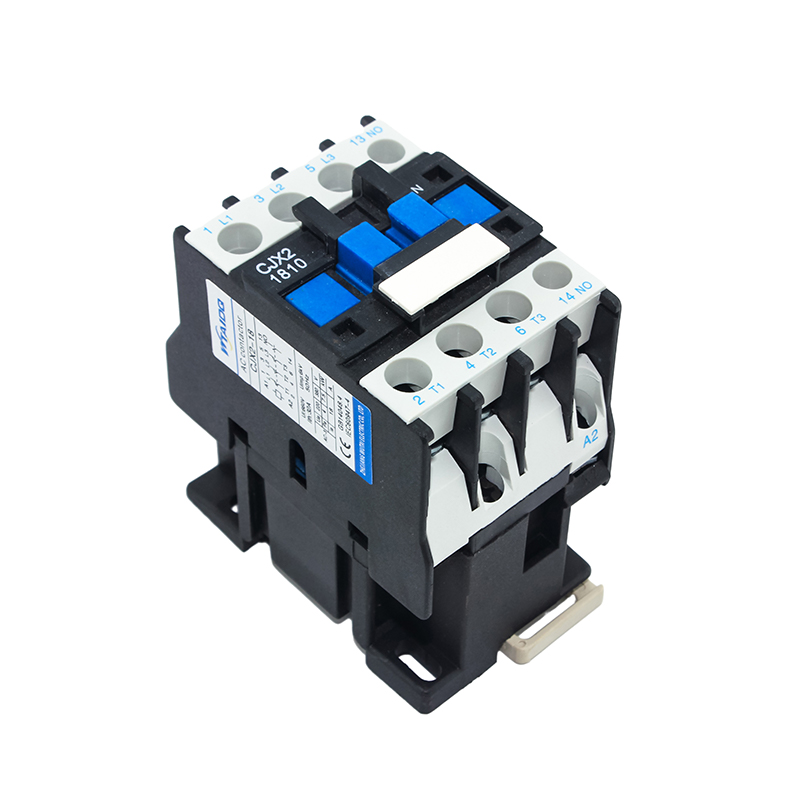

CJX2-18 AC Contactor 18A

Rated current: CJX2-18 AC Contactor 18A, rated 18A at AC-3 380/400V and 12A at 660/690V, on a 32A thermal frame.

Motor power: Drives 7.5kW three-phase motors at 380/400V, 4kW at 220V and 10kW at 660V.

Duty range: AC-4 rating of 7.7A at 380V and 3.8A at 660V for plugging, inching and reversing duty.

Coil: AC 36V, 110V, 127V, 220V or 380V, 70VA closing and 8VA holding, coil loss 1.8W to 2.7W.

Service life: 1 million AC-3 and 200,000 AC-4 electrical operations, 10 million mechanical, up to 1200 operations per hour.

CJX2-18 AC Contactor 18A for 7.5kW Motor Loads

The CJX2-18 switches three-phase motors up to 7.5kW at 380/400V from a compact three-pole frame. It fills the step between the 12A and 25A models in the CJX2 line, where panel space and wiring cost matter as much as breaking capacity.

18A Frame

AC-3 rating is 18A at 380/400V and 12A at 660/690V, with a 32A thermal current behind it. AC-4 duty is rated 7.7A at 380V and 3.8A at 660V, so inching and plugging stops stay inside the contact rating.

Motor Capacity

The contactor controls 4kW at 220V, 7.5kW at 380/400V and 10kW at 660V three-phase motors. Insulation voltage is 690V and wiring capacity 2.5mm², which suits small pumps, fans, conveyors and machine tool spindles.

Coil Circuit

Coil options run AC 36V, 110V, 127V, 220V and 380V. Closing power is 70VA, holding power 8VA and coil loss 1.8W to 2.7W, with pick-up at 85% to 110% Us and drop-out at 20% to 75% Us.

Life and Matching Parts

Electrical life reaches 1 million AC-3 operations and mechanical life 10 million, at up to 1200 operations per hour. Pair it with RT16-32 fuses and JR28-25 thermal relays. Tell us the motor rating and coil voltage and we will confirm the model for your panel.

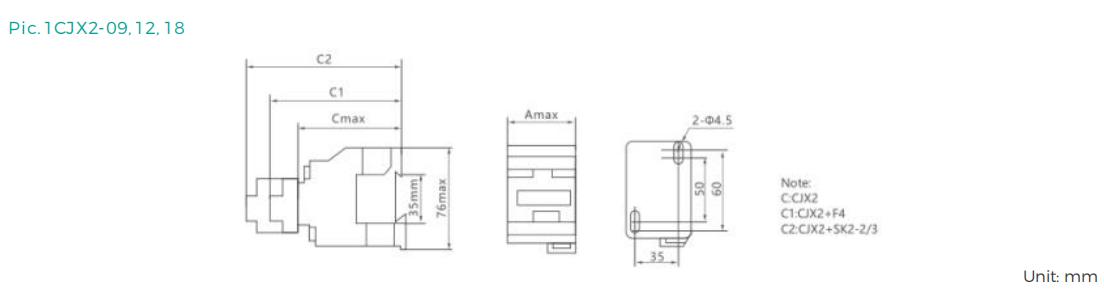

Type			CJX2-09	CJX2-12	CJX2-18	CJX2-25	CJX2-32	CJX2-40	CJX2-50	CJX2-65	CJX2-80	CJX2-95
Rated insulation voltage (Ui)		V	690
Rated thermal current (Ith)		A	20	20	32	40	50	60	80	80	95	95
Rated operation current (Ie)	AC-3, 380V	A	9	12	18	25	32	40	50	65	80	95
	AC-3, 660V	A	6.6	8.9	12	18	21	34	39	42	49	55
	AC-4, 380V	A	3.5	5	7.7	8.5	12	18.5	24	28	37	41
	AC-4, 660V	A	1.5	2	3.8	4.4	7.5	9	12	14	17.3	21.3
Max. power of 3 phase motor controlled	AC-3, 220V	kW	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	AC-3, 380V	kW	4	5.5	7.5	11	15	18.5	22	30	37	45
	AC-3, 660V	kW	5.5	7.5	10	15	18.5	30	33	37	45	55
Electrical life	AC-3	10000t	100				80	80			60
Electrical life	AC-4	10000t	20				20	15			10
Mechanical life		10000t	1000				800	800			600
Operation frequency	AC-3	t/h	1200				600	600			600
Operation frequency	AC-4	t/h	300				300	300			300
Matching fuse type			RT16-20	RT16-20	RT16-32	RT16-40	RT16-50	RT16-63	RT16-80	RT16-80	RT16-100	RT16-125
Matching thermal relay type			JR28-25	JR28-25	JR28-25	JR28-25	JR28-36	JR28-93	JR28-93	JR28-93	JR28-93	JR28-93
Wiring capacity		mm²	1.5	1.5	2.5	4	6	10	16	16	25	35
Coil
Control power voltage (Us)		AC V	36, 110, 127, 220, 380
Allowed control circuit voltage	Close	V	85%~110%Us
Allowed control circuit voltage	Open	V	20%~75%Us(AC)
Apparent power	Close	VA	70				110	200
	Keeping	VA	8				11	20
	Loss power	W	1.8-2.7				3-4	6-10
Auxiliary contact
Rated thermal current (Ith)		A	10
Rated operation voltage (Ue)	AC-15	V	380
Rated operation voltage (Ue)	DC-13	V	220
Rated control capacity	AC-15	VA	360
Rated control capacity	DC-13	W	33
