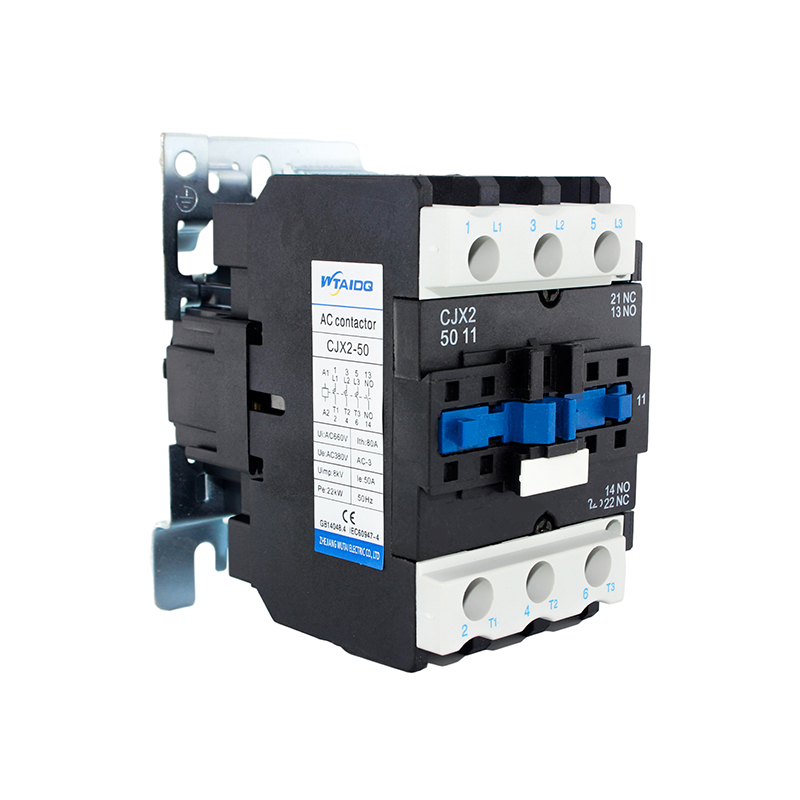

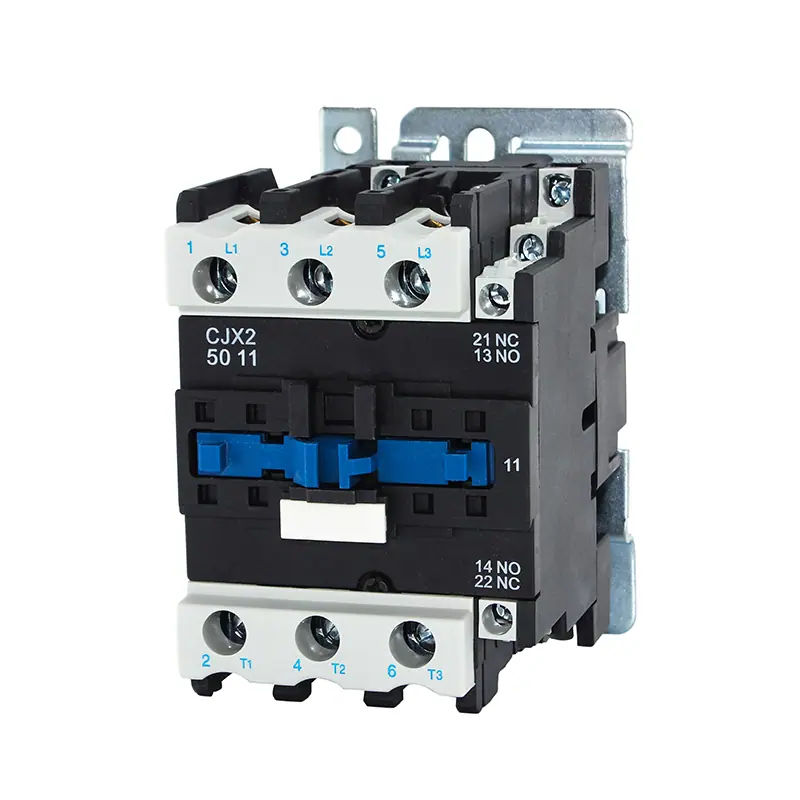

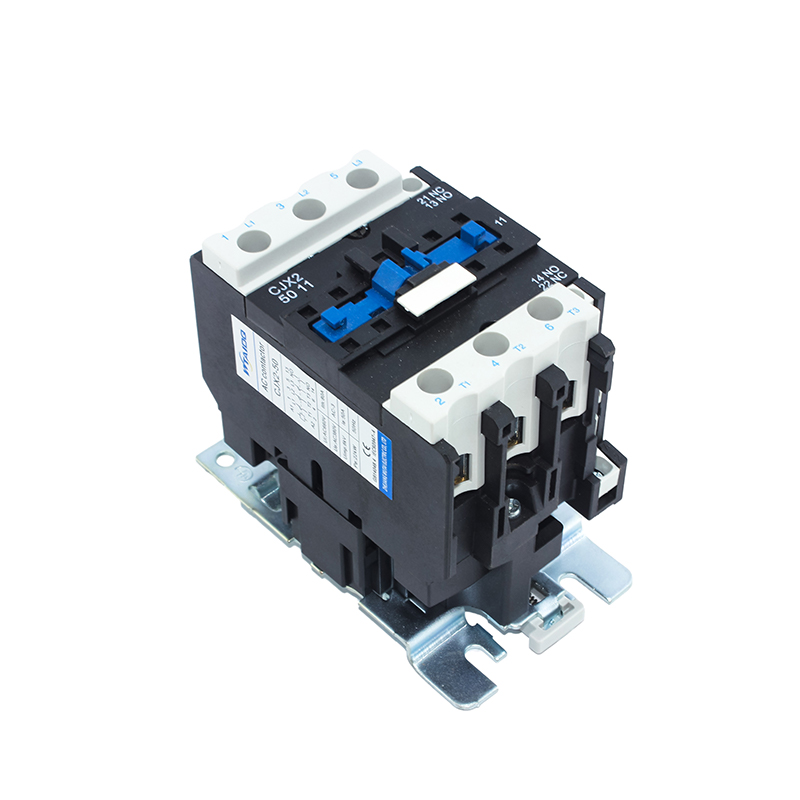

CJX2-5011 AC Contactor 50A

Rated current: CJX2-5011 AC Contactor 50A, rated 50A at AC-3 380/400V and 39A at 660/690V, with 80A thermal current.

Motor power: 22kW at 380/400V, 15kW at 220V and 33kW at 660V for three-phase motors.

Contact arrangement: Three main poles plus one NO and one NC auxiliary contact, 10A at AC-15 380V and DC-13 220V.

Coil: AC 36V, 110V, 127V, 220V or 380V, 200VA closing and 20VA holding, 6W to 10W coil loss.

Service life: 800,000 AC-3 and 150,000 AC-4 electrical operations, 8 million mechanical, 600 times per hour.

CJX2-5011 AC Contactor 50A for 22kW Motor Loads

The CJX2-5011 sits in the upper half of the CJX2 range, where motors from 22kW upwards need a wider contact gap and heavier coil. It carries three main poles with one NO and one NC auxiliary contact for control and feedback.

Contact Set

AC-3 rating is 50A at 380/400V and 39A at 660/690V, on an 80A thermal frame. AC-4 rating is 24A at 380V and 12A at 660V, which covers plugging and inching duty on fans and mixers.

Duty Ratings

Motor ratings are 15kW at 220V, 22kW at 380/400V and 33kW at 660V. Insulation voltage is 690V and wiring capacity 16mm², so the frame takes cable sizes used in main distribution panels.

Coil and Auxiliary

Coil options run AC 36V, 110V, 127V, 220V and 380V. Closing power is 200VA, holding power 20VA and coil loss 6W to 10W. The auxiliary pair is rated 10A at AC-15 380V and DC-13 220V, with 360VA control capacity.

Life and Matching Parts

Electrical life is 800,000 operations at AC-3 and 150,000 at AC-4, mechanical life 8 million, at up to 600 operations per hour. Pair the contactor with RT16-80 fuses and JR28-93 thermal relays. Tell us the motor rating and coil voltage and we will confirm the model.

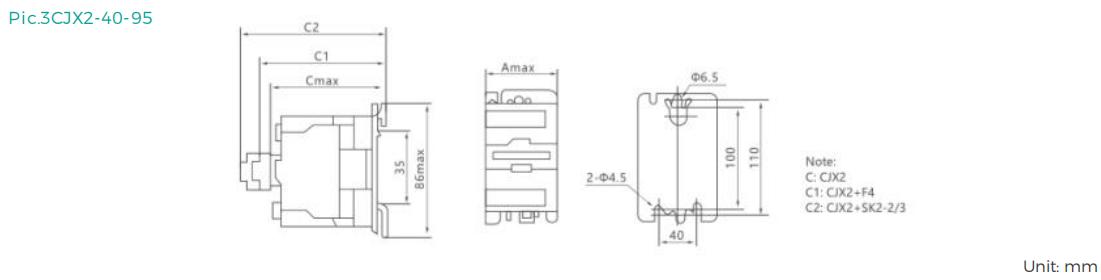

Type			CJX2-09	CJX2-12	CJX2-18	CJX2-25	CJX2-32	CJX2-40	CJX2-50	CJX2-65	CJX2-80	CJX2-95
Rated insulation voltage (Ui)		V	690
Rated thermal current (Ith)		A	20	20	32	40	50	60	80	80	95	95
Rated operation current (Ie)	AC-3, 380V	A	9	12	18	25	32	40	50	65	80	95
	AC-3, 660V	A	6.6	8.9	12	18	21	34	39	42	49	55
	AC-4, 380V	A	3.5	5	7.7	8.5	12	18.5	24	28	37	41
	AC-4, 660V	A	1.5	2	3.8	4.4	7.5	9	12	14	17.3	21.3
Max. power of 3 phase motor controlled	AC-3, 220V	kW	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	AC-3, 380V	kW	4	5.5	7.5	11	15	18.5	22	30	37	45
	AC-3, 660V	kW	5.5	7.5	10	15	18.5	30	33	37	45	55
Electrical life	AC-3	10000t	100				80	80			60
Electrical life	AC-4	10000t	20				20	15			10
Mechanical life		10000t	1000				800	800			600
Operation frequency	AC-3	t/h	1200				600	600			600
Operation frequency	AC-4	t/h	300				300	300			300
Matching fuse type			RT16-20	RT16-20	RT16-32	RT16-40	RT16-50	RT16-63	RT16-80	RT16-80	RT16-100	RT16-125
Matching thermal relay type			JR28-25	JR28-25	JR28-25	JR28-25	JR28-36	JR28-93	JR28-93	JR28-93	JR28-93	JR28-93
Wiring capacity		mm²	1.5	1.5	2.5	4	6	10	16	16	25	35
Coil
Control power voltage (Us)		AC V	36, 110, 127, 220, 380
Allowed control circuit voltage	Close	V	85%~110%Us
Allowed control circuit voltage	Open	V	20%~75%Us(AC)
Apparent power	Close	VA	70				110	200
	Keeping	VA	8				11	20
	Loss power	W	1.8-2.7				3-4	6-10
Auxiliary contact
Rated thermal current (Ith)		A	10
Rated operation voltage (Ue)	AC-15	V	380
Rated operation voltage (Ue)	DC-13	V	220
Rated control capacity	AC-15	VA	360
Rated control capacity	DC-13	W	33
