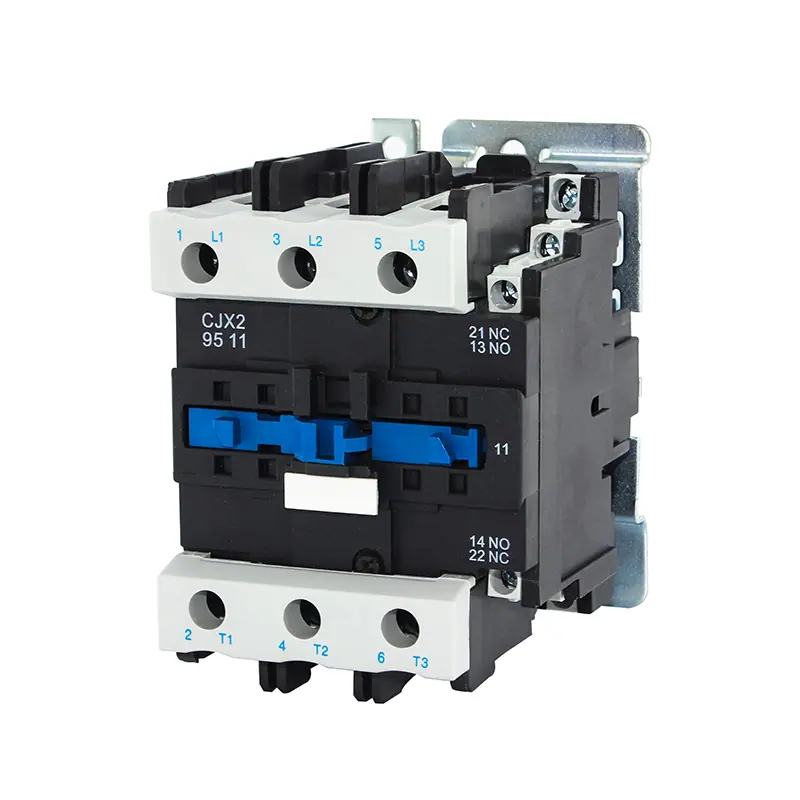

CJX2-9511 3 Pole AC Contactor 95A for 45kW Motors
The CJX2-9511 closes the CJX2 range at 95A, sized for 45kW motors at 380/400V and 35mm² cable. It uses the same NO plus NC auxiliary pair and 200VA coil as the smaller frames above 40A, so panel wiring practice stays the same across the line.
Top of the Range Frame
AC-3 rating is 95A at 380/400V and 55A at 660/690V. The thermal current matches the rating at 95A. AC-4 rating is 41A at 380V and 21.3A at 660V for harsh plugging service.
Contact and Auxiliary Data
Three main poles carry the motor current, and the auxiliary pair is rated 10A thermal at AC-15 380V and DC-13 220V with 360VA control capacity. Motor ratings are 25kW at 220V, 45kW at 380/400V and 55kW at 660V.
Coil Circuit
Coil voltages cover AC 36V, 110V, 127V, 220V and 380V. Closing power is 200VA, holding power 20VA and coil loss 6W to 10W, with pick-up at 85% to 110% Us and drop-out between 20% and 75% Us.
Life and Panel Matching
Electrical life is 600,000 operations at AC-3 and 100,000 at AC-4, mechanical life 6 million, at up to 600 operations per hour. Wiring capacity is 35mm², matching RT16-125 fuses and JR28-93 thermal relays. Tell us the motor rating and coil voltage and we will confirm the model.
