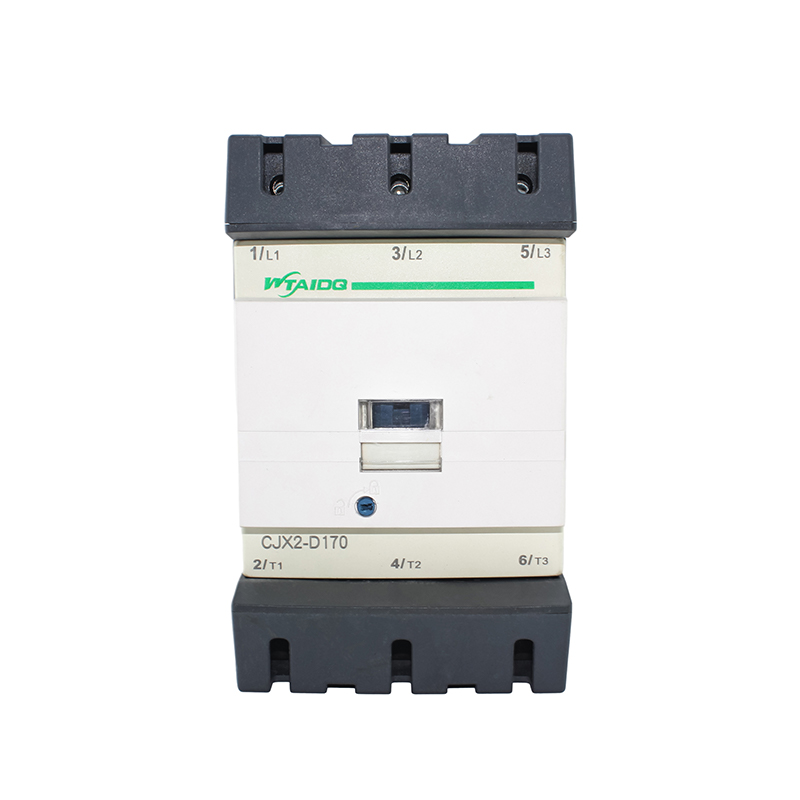

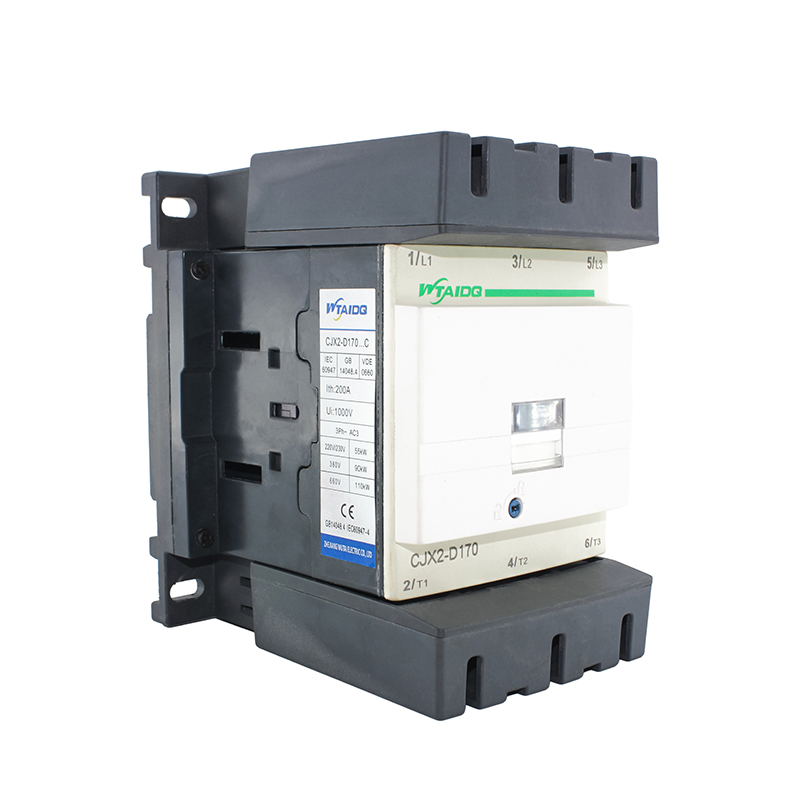

CJX2-D170 High Ampere AC Contactor 170A
The CJX2-D170 is the largest of the three compact D frames, carrying 170A and a 250A thermal current in a 2.25kg body. Above this size the D series moves to a wider housing, so the D170 is the practical ceiling for tight panels.
Motor Ratings

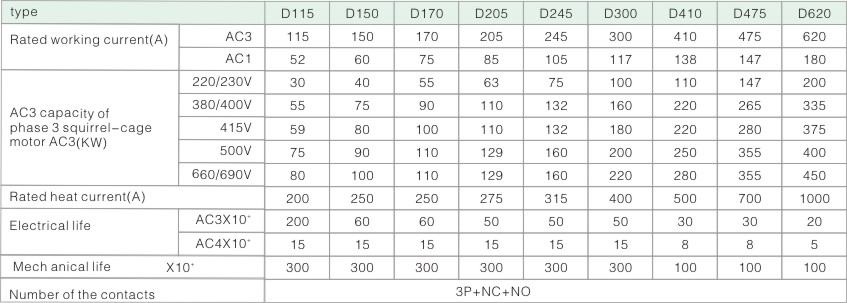

Normal duty covers 55kW at 220/240V, 90kW at 380/400V, 100kW at 400V, and 110kW at 500V and 600/690V. At 1000V the rating is 100kW. That range suits 90kW fans, mixers and hydraulic power units.
Duty and Life
Inching and plugging duty is rated 22kW at 200/230V, 40kW at 380/400V, 45kW at 440V and 51kW at 500V. The wider contact gap of the D frame keeps arc time short when the contactor is asked to break locked rotor current.
Terminals and Space

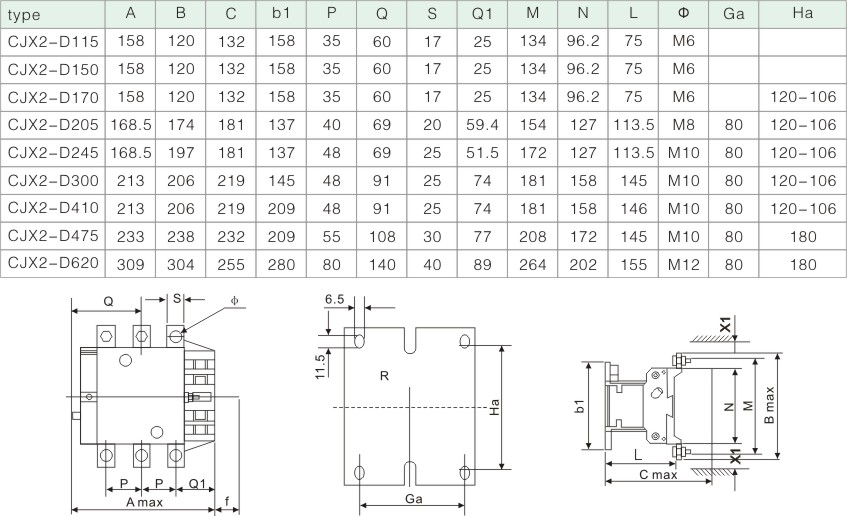

Terminals accept 120mm² cable and the body measures 132 x 120 x 158 mm, so three ratings of the compact D frame share one footprint. Weight stays at 2.25kg.
Coil Selection
Control voltages come as AC 50 Hz 24V, 42V, 48V, 110V, 240V, 400V and 440V, AC 60 Hz in the same steps, and DC 24V, 42V, 48V, 72V, 240V, 250V and 440V. Tell us the motor rating and coil code and we will confirm the model.
