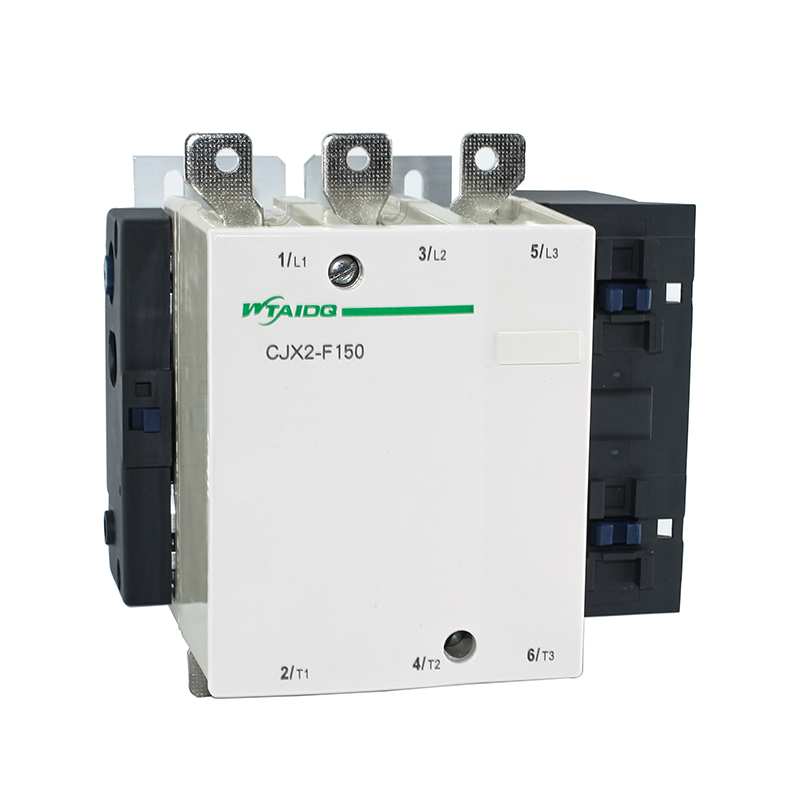

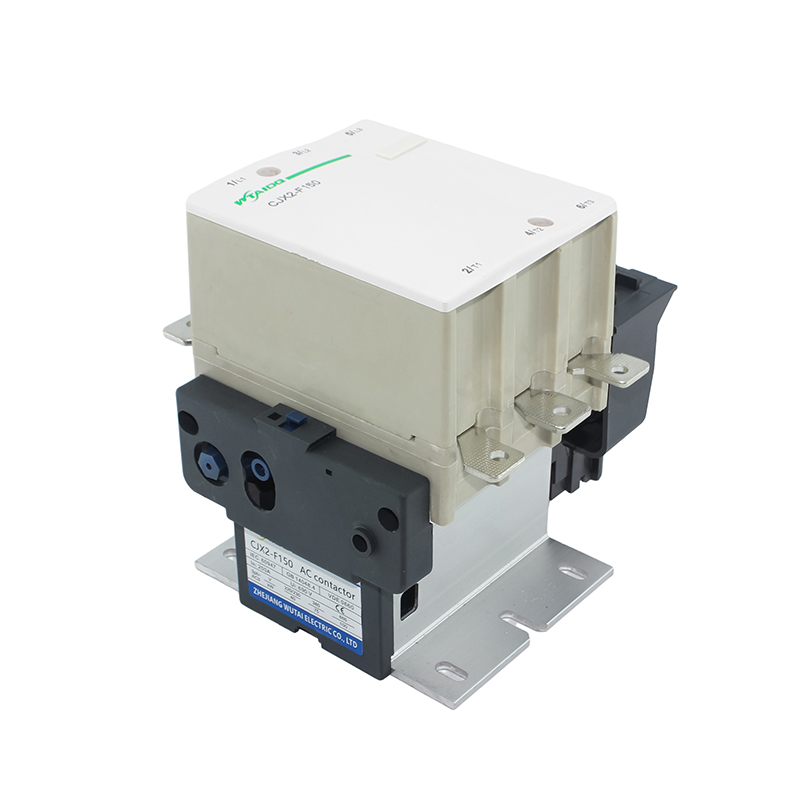

CJX2-F150 High Ampere AC Contactor 150A
The CJX2-F150 carries 150A in AC-3 duty in the same 200A thermal frame as the F115, so it covers one rating up without moving to a wider body. Motor capacity reaches 75kW at 380/400V.

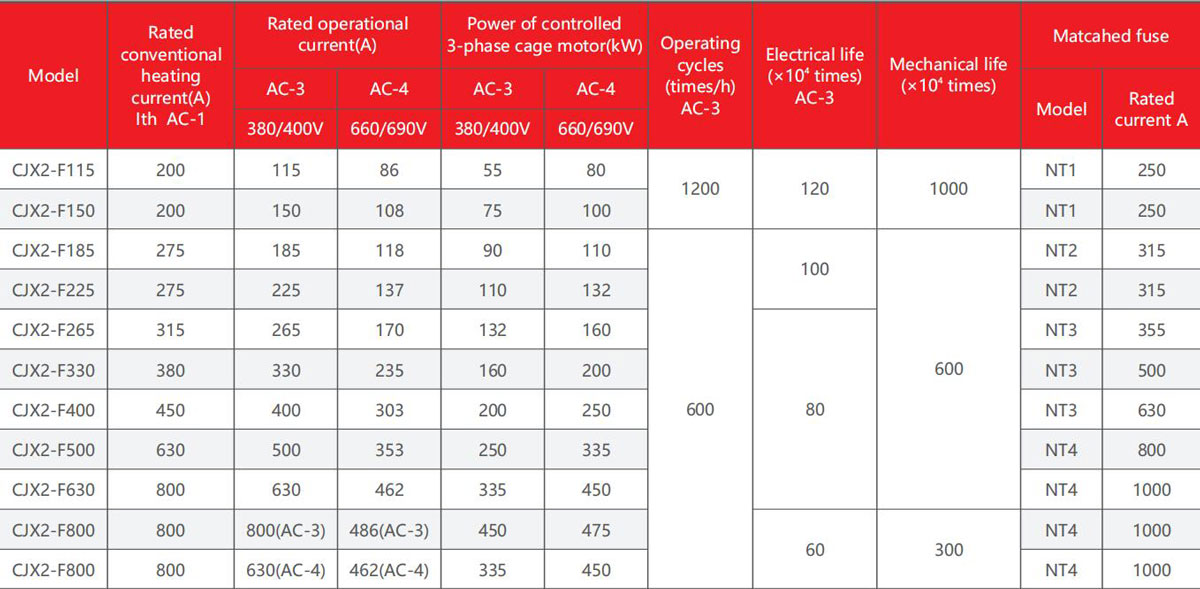

Rated Current
AC-3 current is 150A at 380/400V and 108A at 660/690V. Conventional thermal current in AC-1 duty is 200A, so the frame takes resistive loads up to that figure.
Motor Capacity
Three-phase cage motors are rated 75kW at 380/400V and 100kW at 660/690V. This is the size used for 75kW screw compressors, large centrifugal pumps and main drives on 400V panels.
Life and Duty
Electrical life is 1.2 million AC-3 operations and mechanical life 10 million, at up to 1200 operations per hour, the same endurance figures as the F115 despite the higher current.

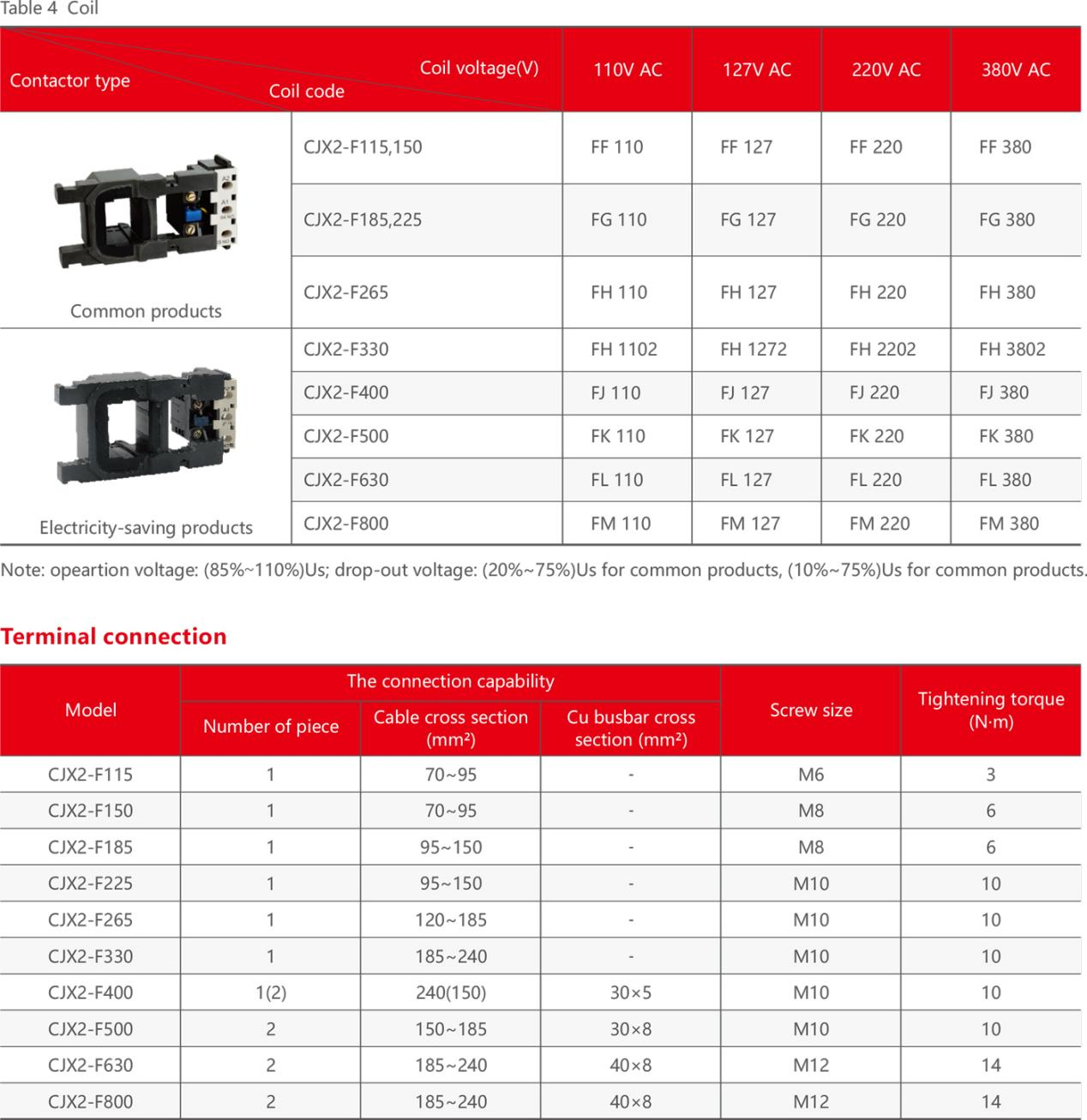

Terminals and Protection
Main pole terminals are M8, matching the lugs used on 150A feeders, and the matched fuse is an NT1 link rated 250A. Send the motor rating, coil voltage and whether you need three or four poles and we will confirm the model.
