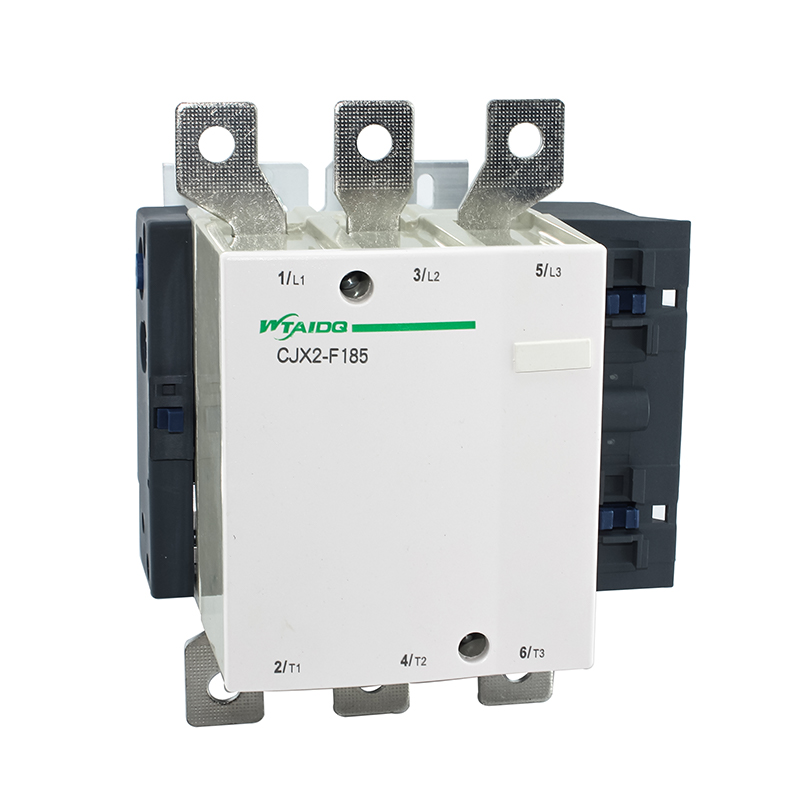

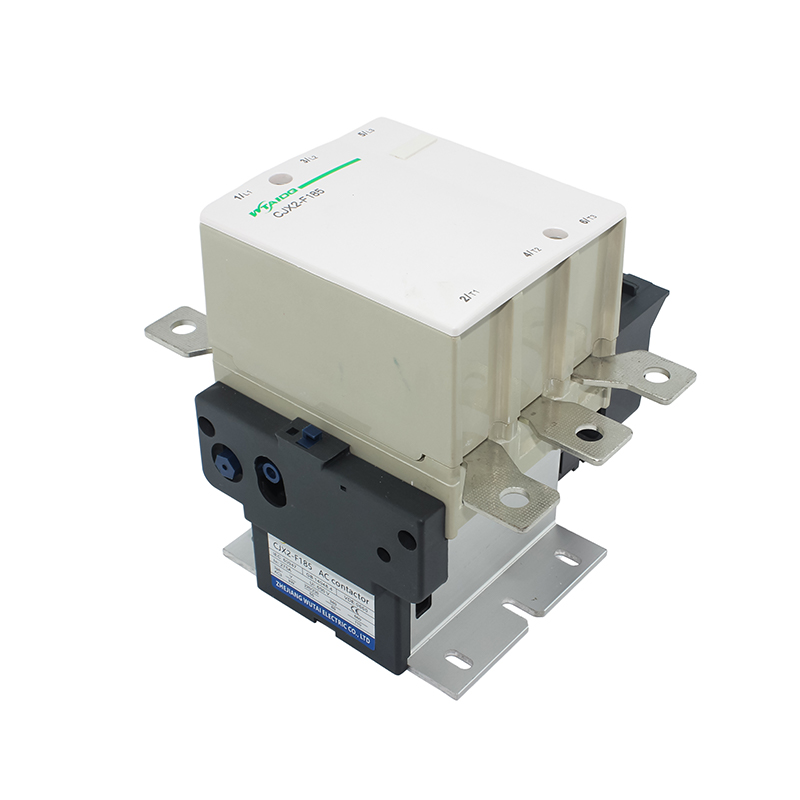

CJX2-F185 High Ampere AC Contactor 185A
The CJX2-F185 moves the F series to a 275A thermal frame and a 90kW motor rating at 380/400V. From this size the frame takes NT2 fuses and the operating rate drops to 600 cycles per hour, which matches the duty of heavier machinery.
Current Data

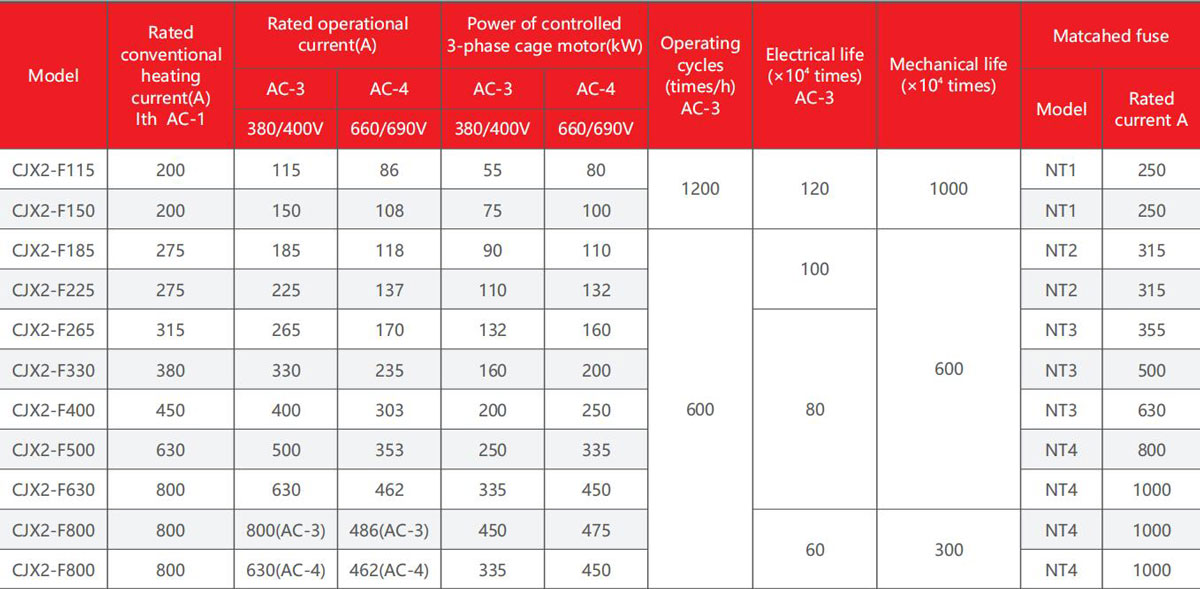

AC-3 rated operational current is 185A at 380/400V and 118A at 660/690V. Conventional thermal current in AC-1 duty is 275A.
Motor Capacity
Three-phase cage motors are rated 90kW at 380/400V and 110kW at 660/690V, which covers 90kW compressors, crushers and main hoist drives.
Life and Duty
Electrical life is 1 million AC-3 operations and mechanical life 6 million, at up to 600 operations per hour. The lower cycle rate reflects the inertia and starting current of the loads this frame handles.
Terminals and Protection

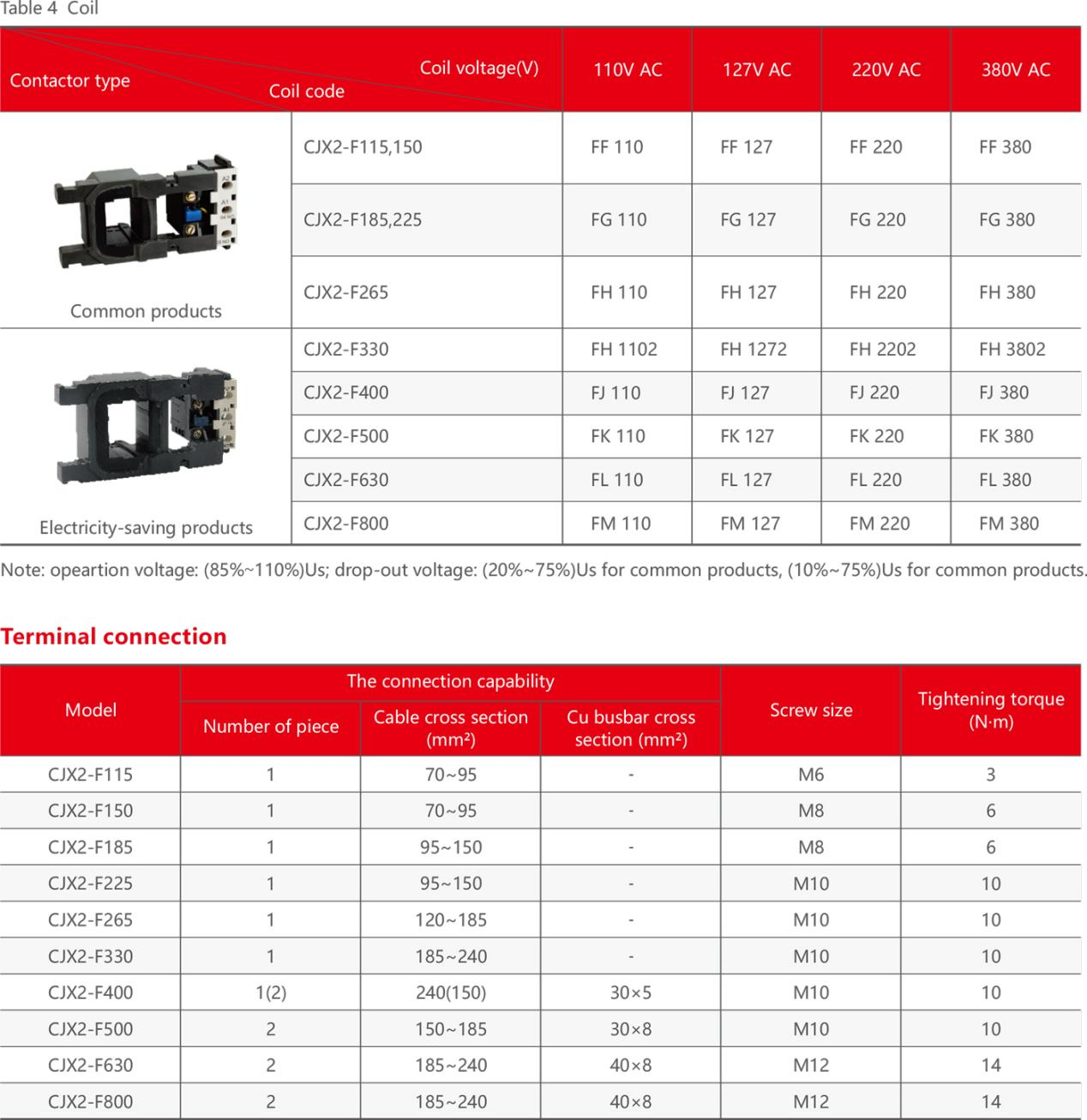

Main pole terminals are M8 and the matched fuse is an NT2 link rated 315A, so the short circuit protection steps up with the frame. Tell us the motor rating, coil voltage and pole count and we will confirm the model.
