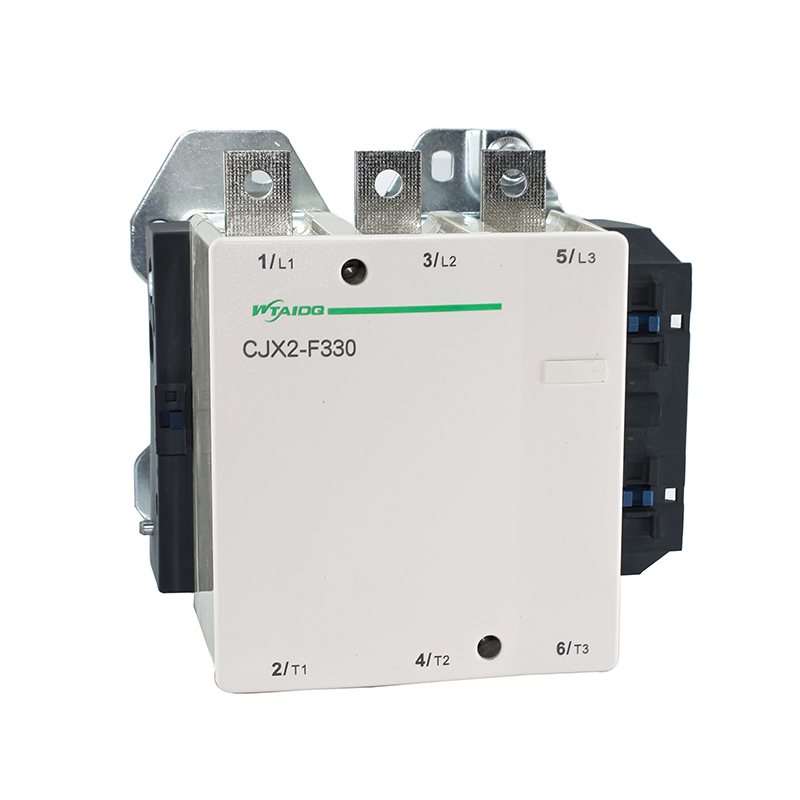

CJX2-F330 High Ampere AC Contactor 330A
The CJX2-F330 is the first frame in the F series built on a 380A thermal body, with 160kW of motor capacity at 380/400V. NT3 fuses take over as the short circuit protection from this size.
Current Data

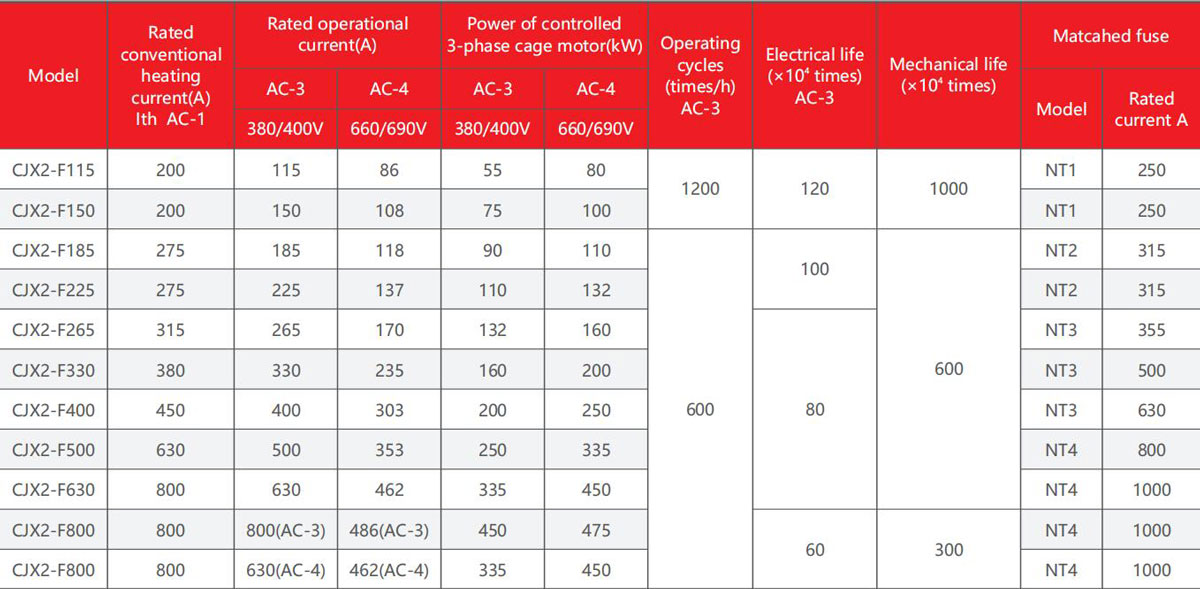

Rated operational current is 330A at 380/400V and 235A at 660/690V. Conventional thermal current in AC-1 duty is 380A.
Motor Capacity
Three-phase cage motors are rated 160kW at 380/400V and 200kW at 660/690V, which covers 160kW compressors, crushers and main drives on 400V panels.
Life and Duty
Mechanical life is 6 million operations and the frame allows up to 600 AC-3 operations per hour. Choose this size when the load stays within 330A AC-3 at 400V and short circuit levels call for NT3 fuses.
Terminals and Protection

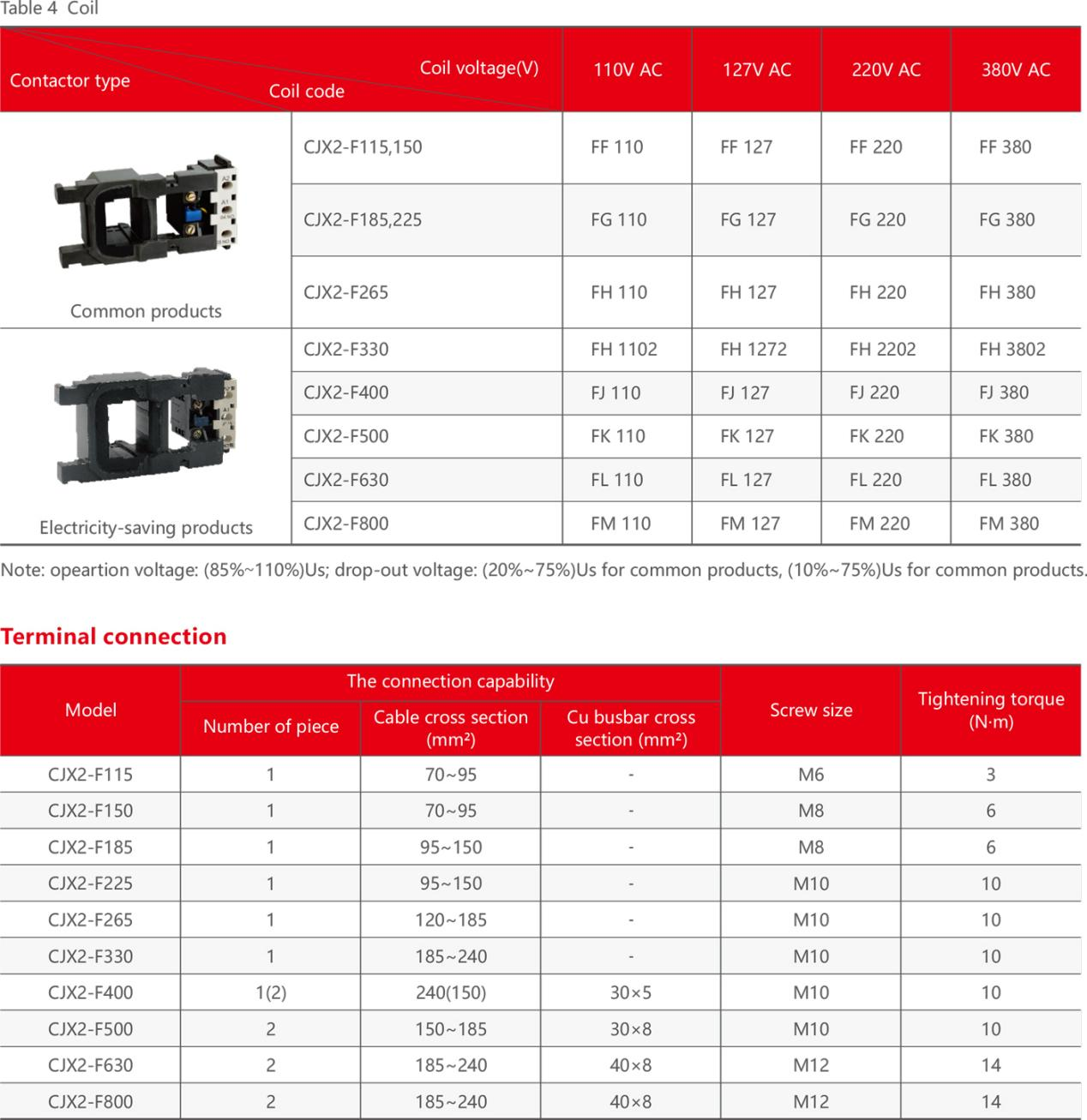

Main pole terminals are M10 and the matched fuse is an NT3 link rated 500A. Tell us the motor rating, coil voltage and pole count and we will confirm the model.
