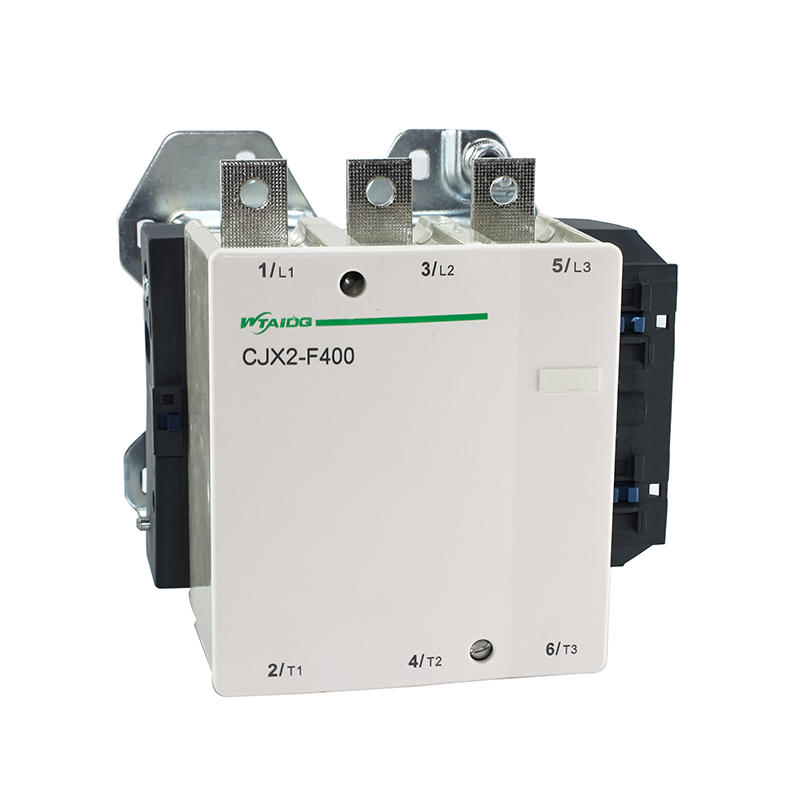

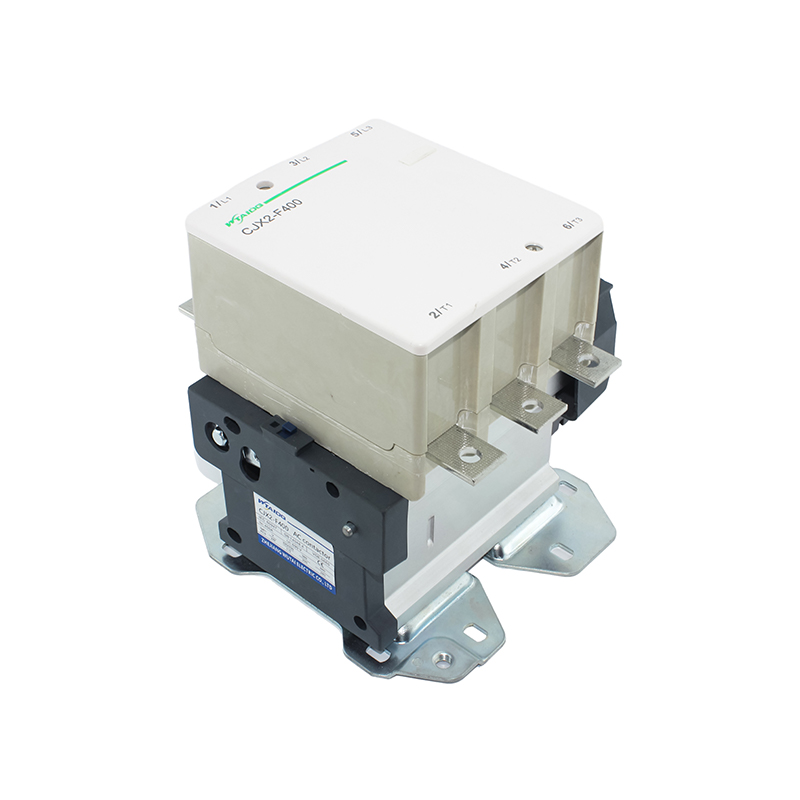

CJX2-F400 High Ampere AC Contactor 400A

CJX2-F400 High Ampere AC Contactor 400A

Rated current: CJX2-F400 High Ampere AC Contactor 400A, 400A in AC-3 duty at 380/400V and 303A at 660/690V.

Thermal current: 450A conventional thermal current in AC-1 duty.

Motor power: 200kW at 380/400V and 250kW at 660/690V for three-phase cage motors.

Endurance: 6 million mechanical operations, 600 operations per hour in AC-3 duty.

Matching parts: NT3 fuse link rated 630A, M10 terminal screws for the main poles.

CJX2-F400 High Ampere AC Contactor 400A

The CJX2-F400 takes the F series to 400A AC-3 and 200kW at 380/400V, on a 450A thermal frame that shares its mounting layout with the F330.

Current Data

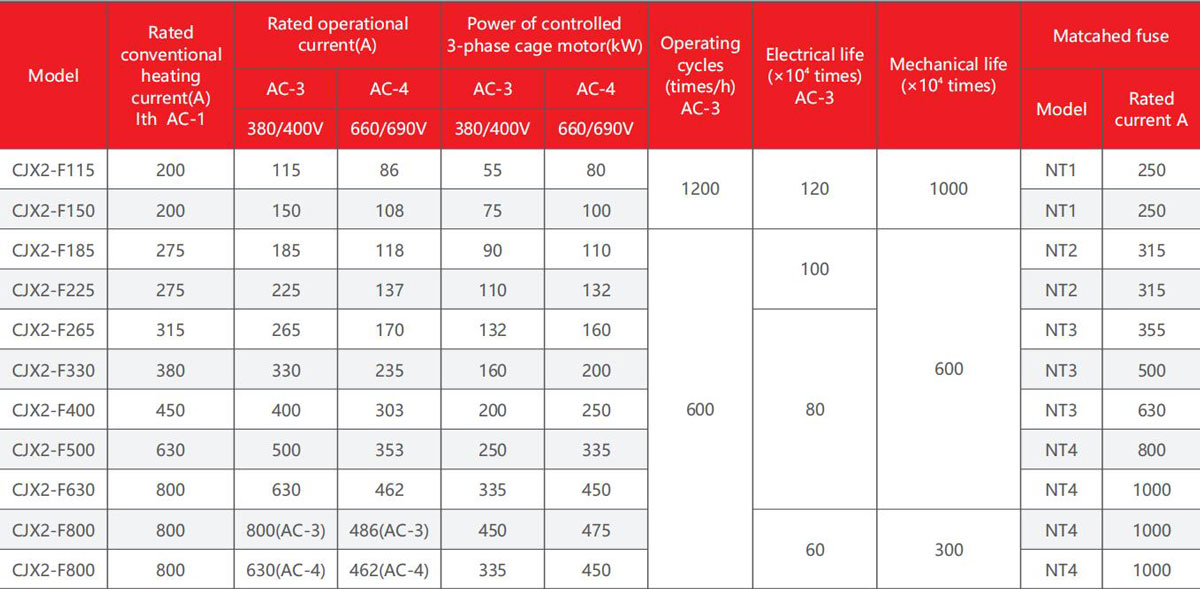

Rated operational current is 400A at 380/400V and 303A at 660/690V. Conventional thermal current in AC-1 duty is 450A.

Motor Capacity

Three-phase cage motors are rated 200kW at 380/400V and 250kW at 660/690V, the range used for large compressors, hoists and plant main drives.

Life and Duty

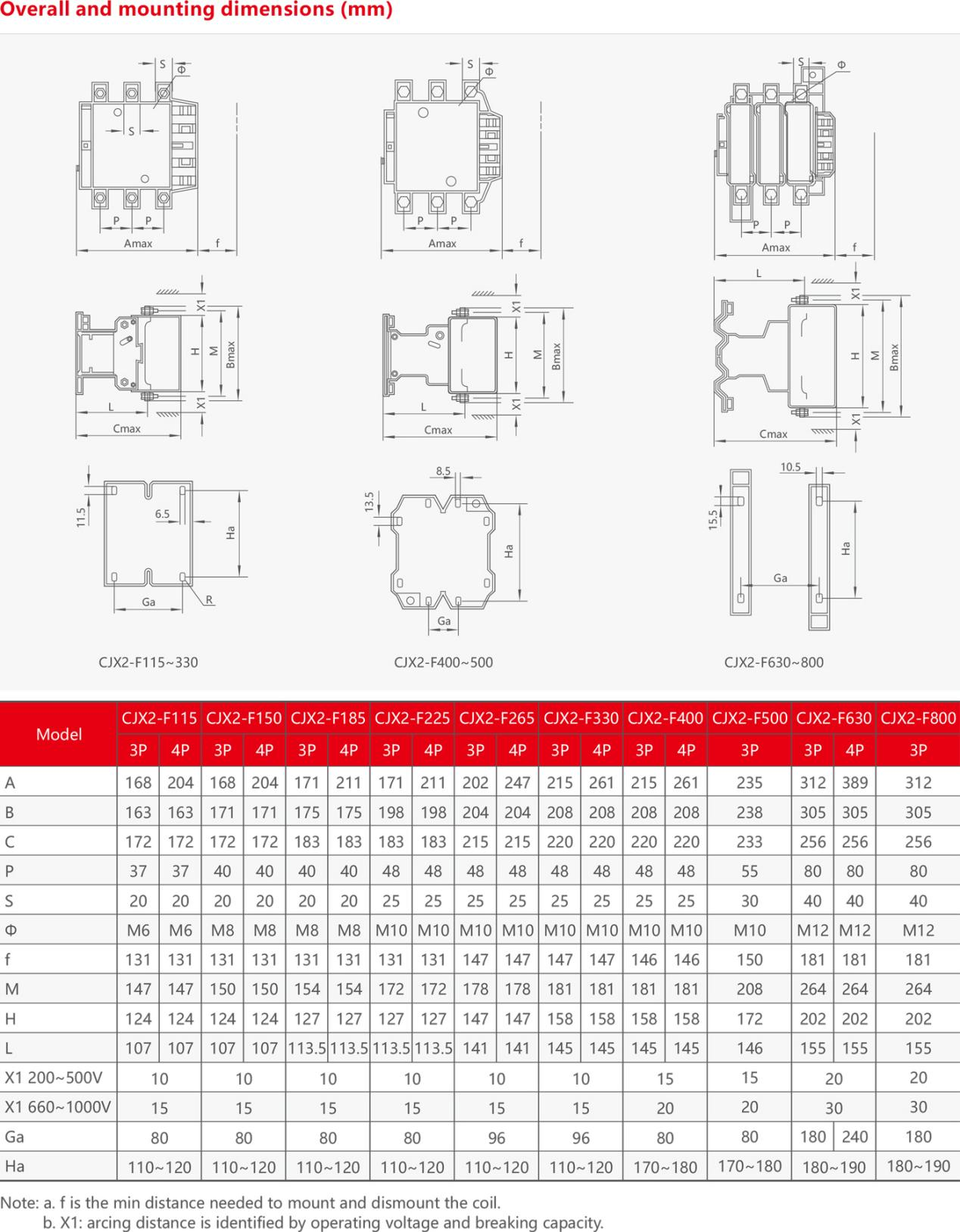

Mechanical life is 6 million operations with up to 600 AC-3 operations per hour. The mounting dimensions match the F330, so a panel built for one accepts the other without redrilling.

Terminals and Protection

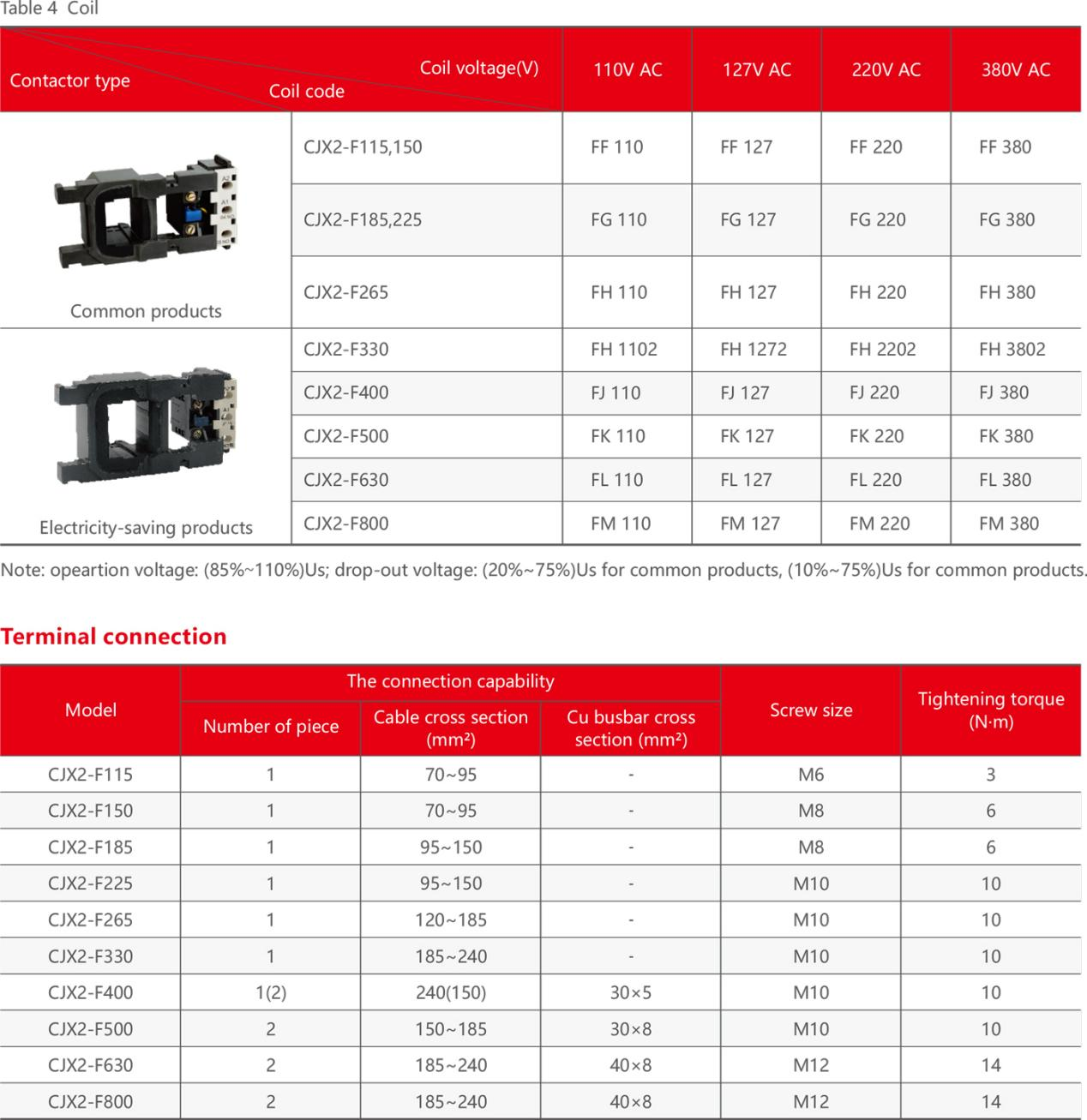

Main pole terminals are M10 and the matched fuse is an NT3 link rated 630A. Tell us the motor rating, coil voltage and pole count and we will confirm the model.
