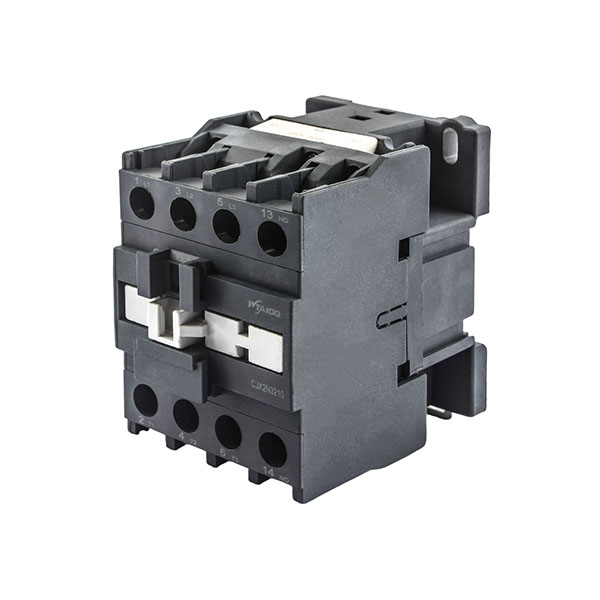

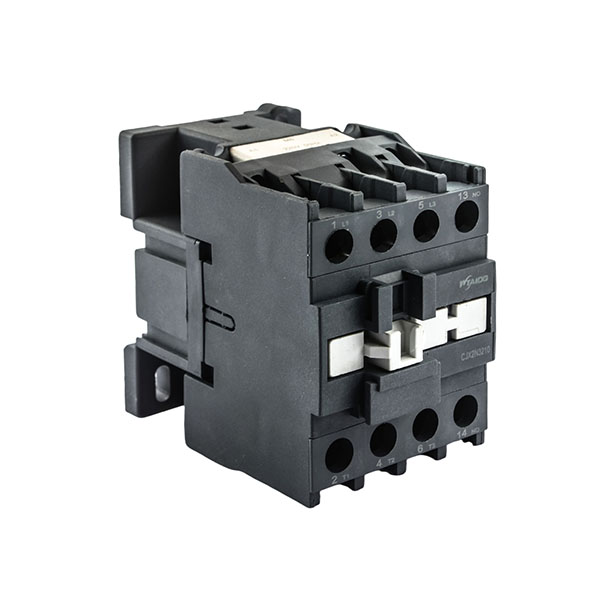

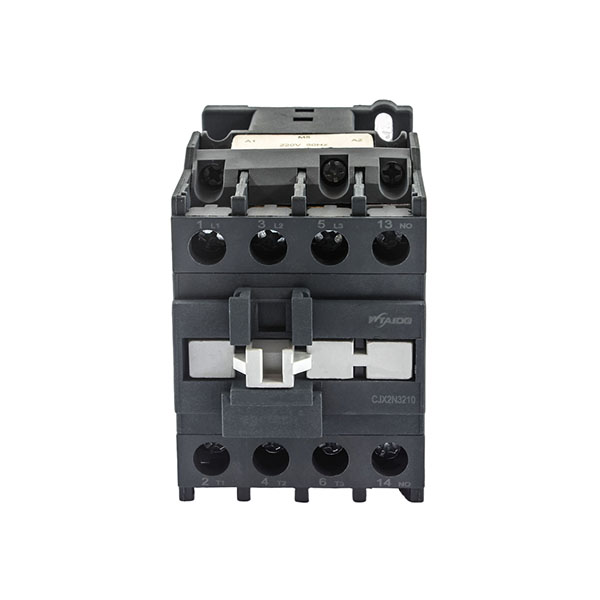

CJX2N3210 Economic Type Magnetic Contactor 32A LC1N
The CJX2N3210 is the 32A size of the CJX2N economic range, supplied with one normally open auxiliary contact. It runs 15kW at 380/400V and keeps that rating up to 690V, on a rated working voltage of 690V.
Current Data
Rated operational current is 32A AC-3 with Ue up to 440V and 40A in AC-1 duty. The main circuit is three pole, with one NO auxiliary contact for hold-in, interlock or indication circuits.
Motor Capacity
Rated working power is 7.5kW at 220/230V, 15kW at 380/400V, 15kW at 415/440V, 15kW at 500V and 15kW at 660/690V.
Model Number and Auxiliary Contact
The 3210 suffix follows the LC1N naming: 32 for the 32A frame and 10 for one normally open auxiliary contact. If you need a normally closed contact as well, tell us and we will confirm the available variant.
Where the 32A Size Fits
Choose this size for 15kW motors at 380/400V where a single NO auxiliary contact is enough for the control circuit. Tell us the coil voltage and any extra auxiliary contacts and we will confirm the model.
