CJX2-2510 3 Pole AC Contactor 25A

Rated current: CJX2-2510 3 Pole AC Contactor 25A, rated 25A at AC-3 380/400V and 18A at 660/690V, with 40A thermal current.

Motor power: 11kW at 380/400V, 5.5kW at 220V and 15kW at 660V for three-phase motors.

Contact arrangement: Three main poles plus one NO auxiliary contact, rated 10A at AC-15 380V with DC-13 220V and 360VA control capacity.

Coil: AC 36V, 110V, 127V, 220V or 380V, 70VA closing and 8VA holding, coil loss 1.8W to 2.7W.

Service life: 1 million AC-3 and 200,000 AC-4 electrical operations, 10 million mechanical, 1200 times per hour.

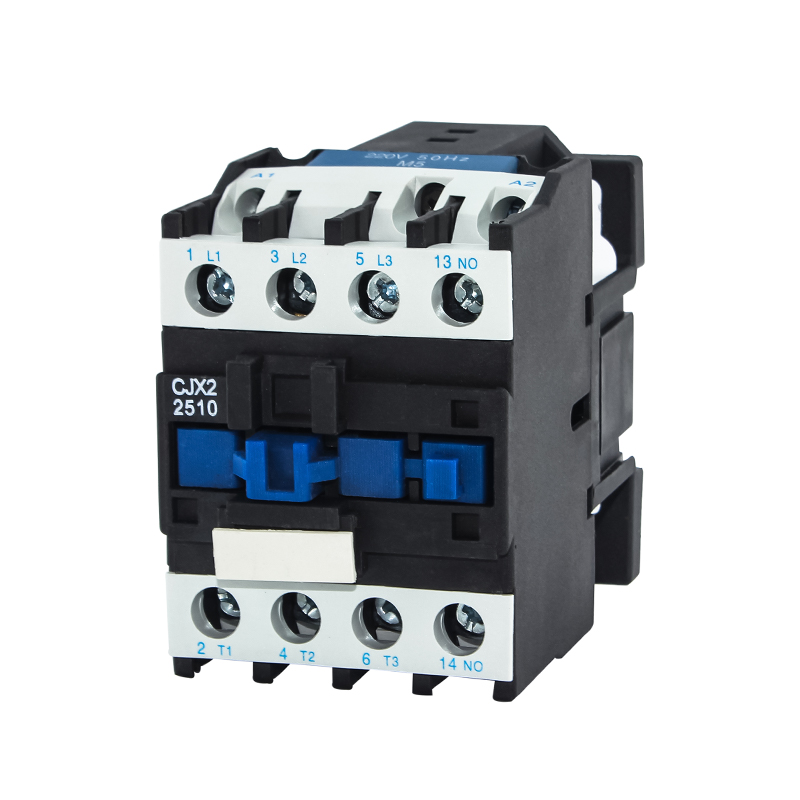

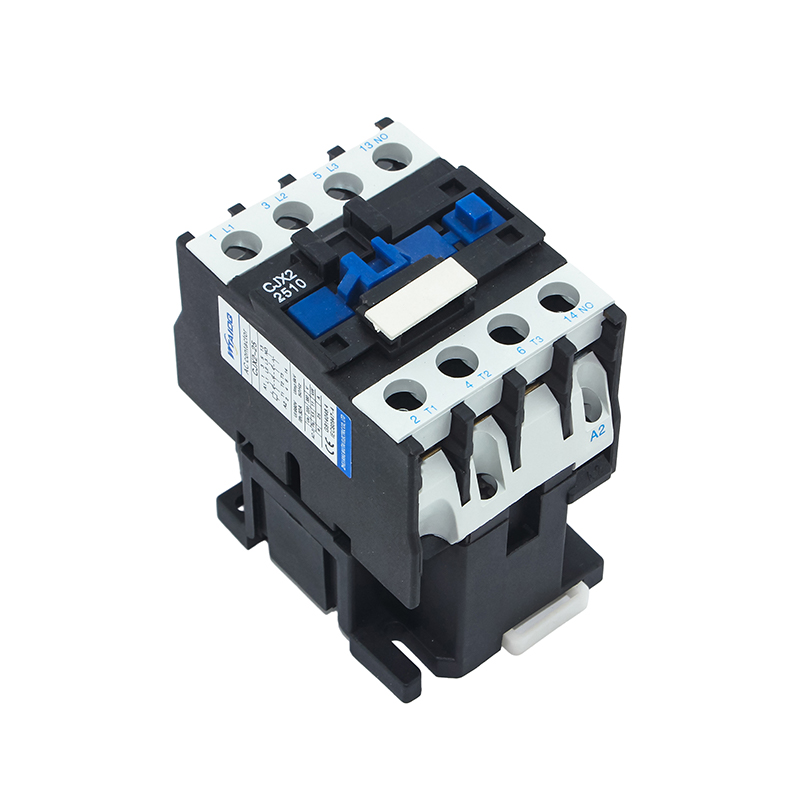

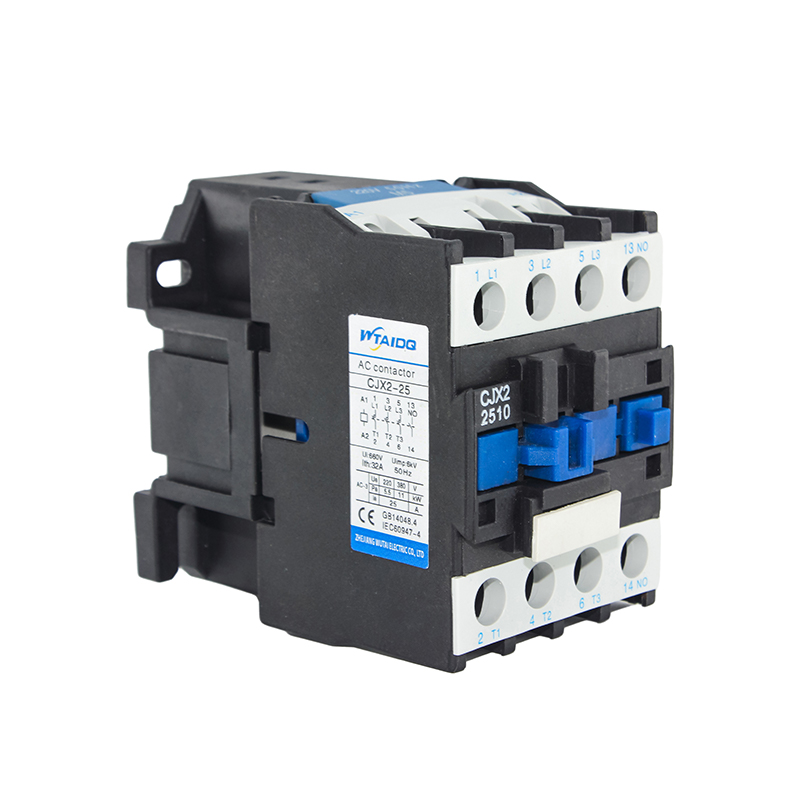

CJX2-2510 3 Pole AC Contactor 25A with One NO Contact

The CJX2-2510 carries a 25A AC-3 rating on three main poles and adds one normally open auxiliary contact for the control circuit. It is the size most often specified for 11kW motors in pumps, compressors and packaging lines.

Three Main Poles

AC-3 rating is 25A at 380/400V and 18A at 660/690V, backed by a 40A thermal current. AC-4 rating is 8.5A at 380V and 4.4A at 660V, which keeps reversing and inching duty inside the contact rating.

Auxiliary Contact

The 10 suffix adds one NO auxiliary contact, rated 10A at AC-15 380V and DC-13 220V with 360VA AC-15 control capacity. It can hold a seal-in circuit or drive a panel lamp without a separate relay.

Motor and Coil Data

The frame controls 5.5kW at 220V, 11kW at 380/400V and 15kW at 660V motors. Coil voltages cover AC 36V to 380V, closing at 70VA and holding at 8VA, with pick-up at 85% to 110% Us.

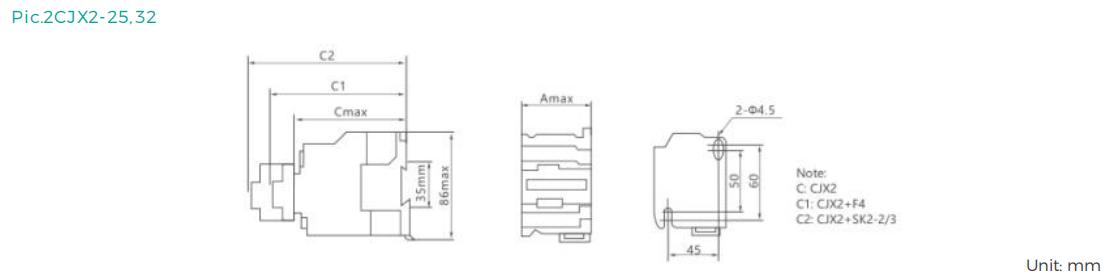

Life and Wiring

Electrical life is 1 million operations at AC-3 and 200,000 at AC-4, mechanical life 10 million, at up to 1200 operations per hour. Wiring capacity is 4mm², with RT16-40 fuses and JR28-25 relays as matching parts. Send the motor rating and coil voltage for a quote.

Type			CJX2-09	CJX2-12	CJX2-18	CJX2-25	CJX2-32	CJX2-40	CJX2-50	CJX2-65	CJX2-80	CJX2-95
Rated insulation voltage (Ui)		V	690
Rated thermal current (Ith)		A	20	20	32	40	50	60	80	80	95	95
Rated operation current (Ie)	AC-3, 380V	A	9	12	18	25	32	40	50	65	80	95
	AC-3, 660V	A	6.6	8.9	12	18	21	34	39	42	49	55
	AC-4, 380V	A	3.5	5	7.7	8.5	12	18.5	24	28	37	41
	AC-4, 660V	A	1.5	2	3.8	4.4	7.5	9	12	14	17.3	21.3
Max. power of 3 phase motor controlled	AC-3, 220V	kW	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	AC-3, 380V	kW	4	5.5	7.5	11	15	18.5	22	30	37	45
	AC-3, 660V	kW	5.5	7.5	10	15	18.5	30	33	37	45	55
Electrical life	AC-3	10000t	100				80	80			60
Electrical life	AC-4	10000t	20				20	15			10
Mechanical life		10000t	1000				800	800			600
Operation frequency	AC-3	t/h	1200				600	600			600
Operation frequency	AC-4	t/h	300				300	300			300
Matching fuse type			RT16-20	RT16-20	RT16-32	RT16-40	RT16-50	RT16-63	RT16-80	RT16-80	RT16-100	RT16-125
Matching thermal relay type			JR28-25	JR28-25	JR28-25	JR28-25	JR28-36	JR28-93	JR28-93	JR28-93	JR28-93	JR28-93
Wiring capacity		mm²	1.5	1.5	2.5	4	6	10	16	16	25	35
Coil
Control power voltage (Us)		AC V	36, 110, 127, 220, 380
Allowed control circuit voltage	Close	V	85%~110%Us
Allowed control circuit voltage	Open	V	20%~75%Us(AC)
Apparent power	Close	VA	70				110	200
	Keeping	VA	8				11	20
	Loss power	W	1.8-2.7				3-4	6-10
Auxiliary contact
Rated thermal current (Ith)		A	10
Rated operation voltage (Ue)	AC-15	V	380
Rated operation voltage (Ue)	DC-13	V	220
Rated control capacity	AC-15	VA	360
Rated control capacity	DC-13	W	33
